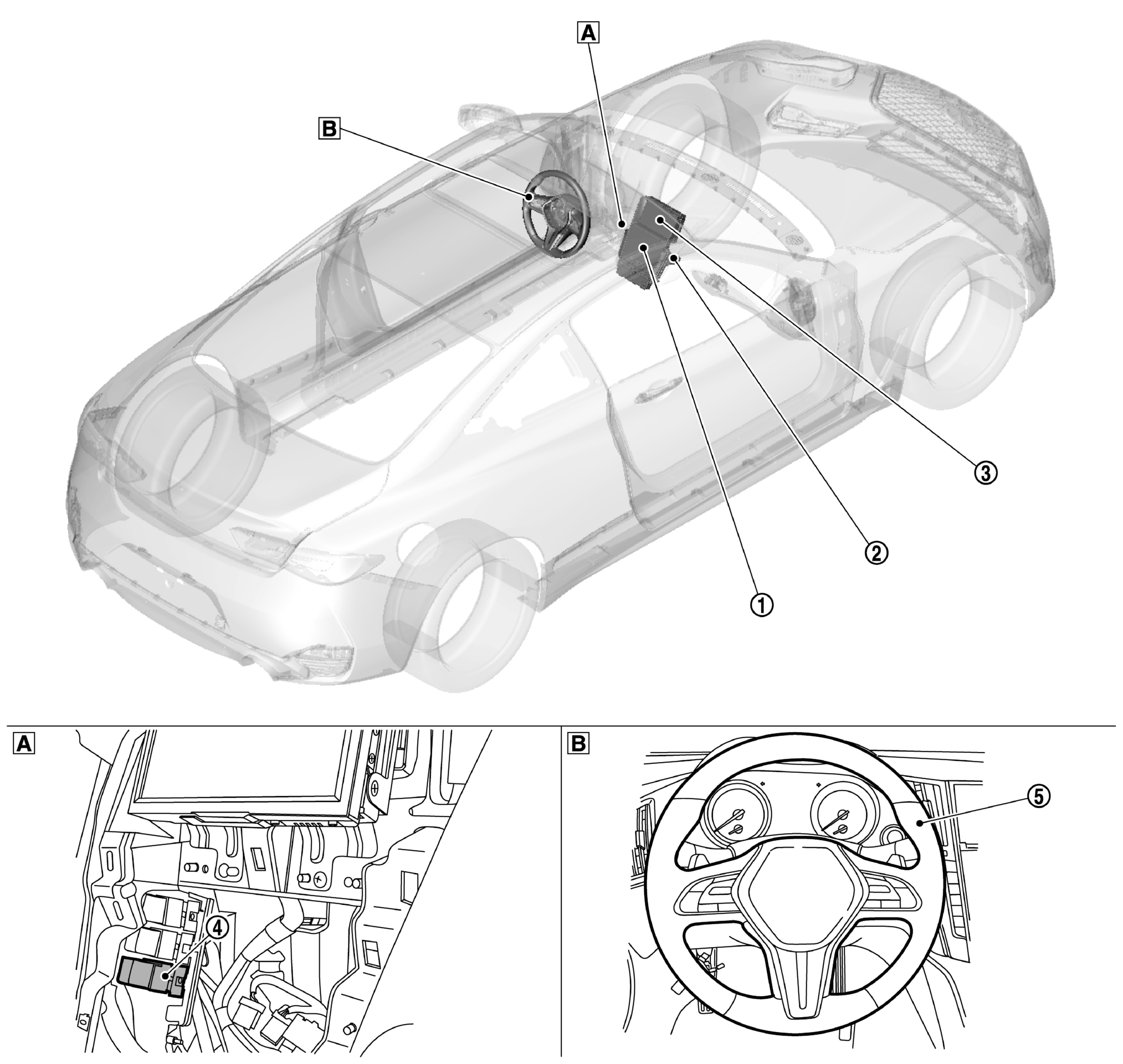

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

At the back of integral switch

Steering wheel

No.	Component	Function
	Integral switch	Changes the following settings according to the operation of the display part. Steering heater function ON/OFF Steering heater AUTO function ON/OFF Transmits the following signals to display control unit via communication line. Steering heater signal Steering heater auto signal Refer to COMPONENT LOCATION for detailed installation location.
	A/C auto amp.	For the function, refer to A/C AUTO AMP. . Refer to COMPONENT LOCATION for detailed installation location.
	Display control unit	Transmits the following signals received from integral switch to AC auto amp. via CAN communication. Steering heater signal Steering heater auto signal Refer to COMPONENT LOCATION for detailed installation location.
	Heated steering wheel relay	HEATED STEERING WHEEL RELAY
	Heated steering wheel	HEATED STEERING WHEEL
