Heated Steering Wheel
With the power supply from the heated steering wheel relay, the heated steering wheel controls temperature through the heating element
and thermostat
built into the steering wheel.

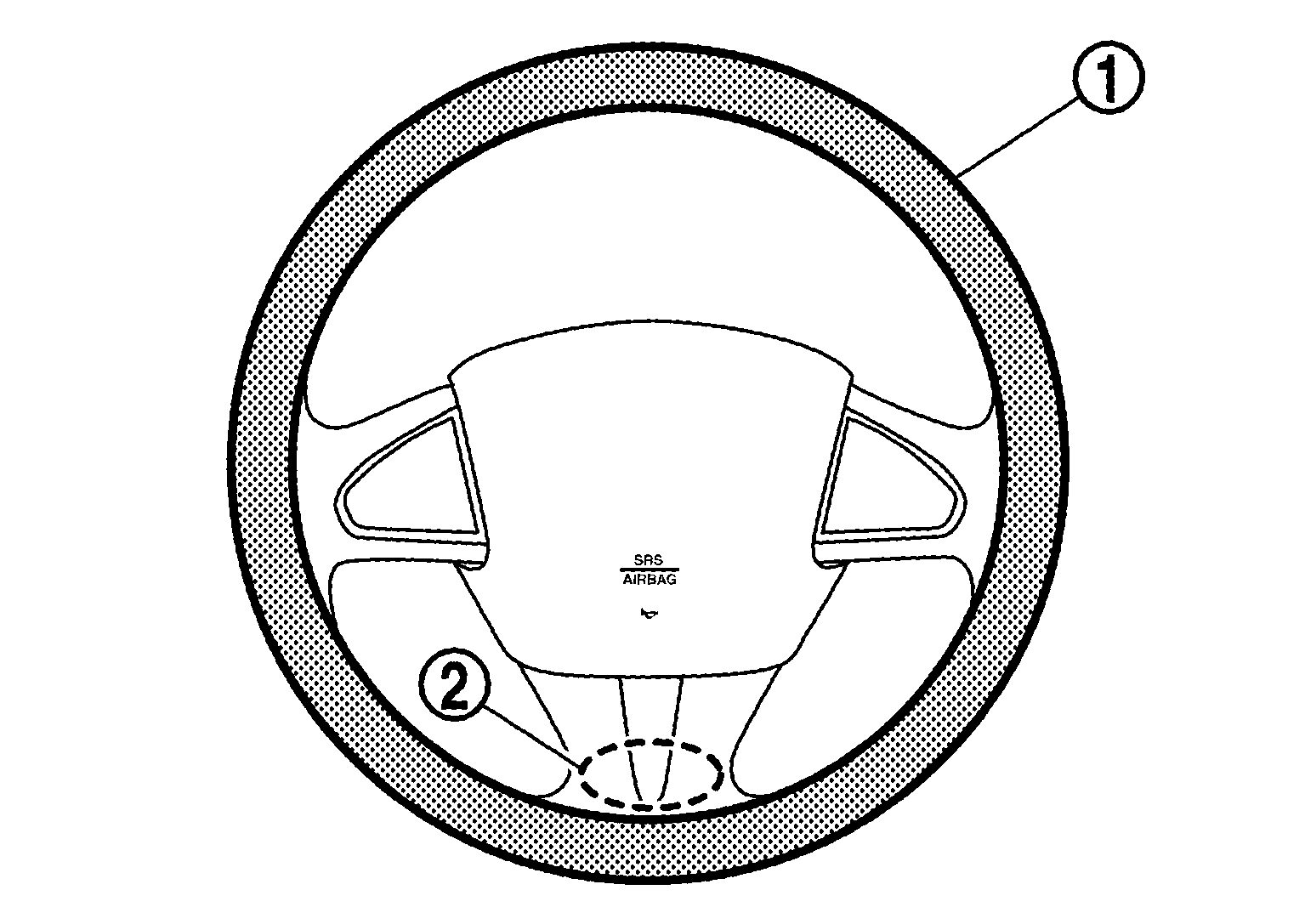

- Heating element: Generates heat by energization.NOTE:
Heating element is located at the back of the steering wheel leather surface.
- Thermostat: Turns ON/OFF power supply according to the specified temperature.
