Exploded View: Removal: 2WD

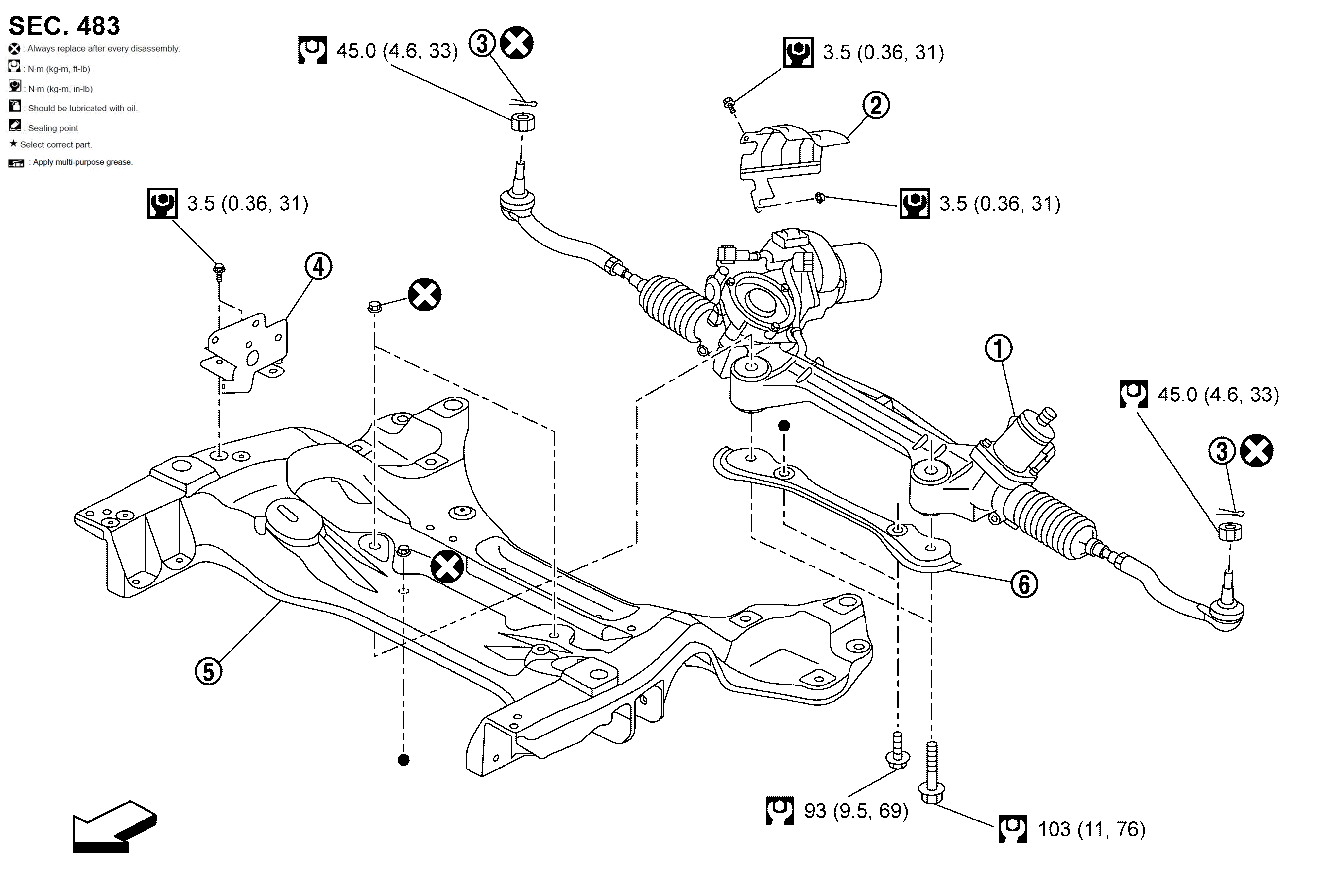

Fig 1: Steering Gear And Linkage 2WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering gear assembly	Heat insulator	Cotter pin
	Bracket	Front suspension member	Rack stay
: Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
:	Indicates that the part is connected at points with same symbol in actual vehicle
