Exploded View: Removal: AWD

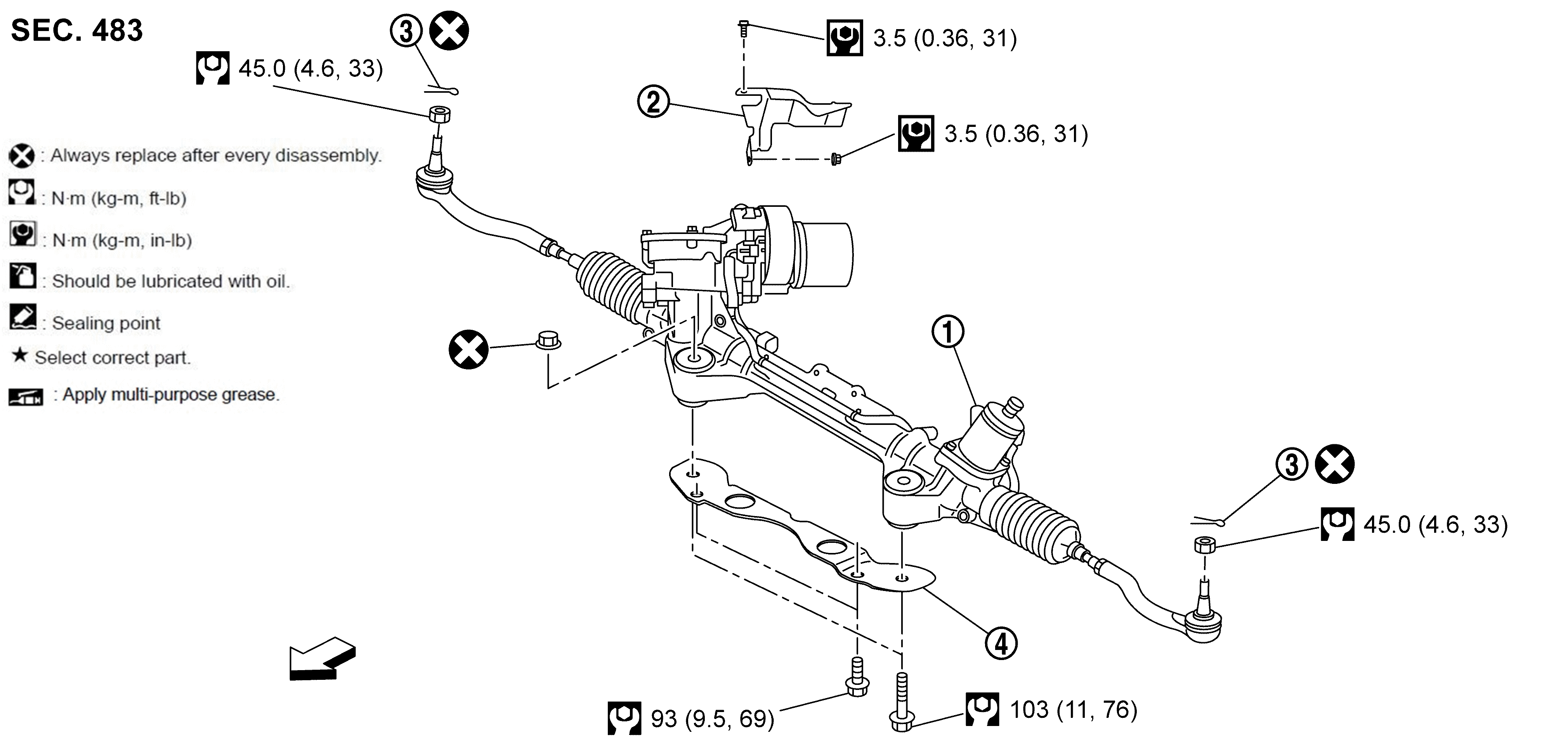

Fig 1: Steering Gear And Linkage AWD With Torque Specifications
GNSJSGIA2112GB-112Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Steering gear assembly WHITE-2 Heat insulator WHITE-3 Cotter pin
WHITE-4 Rack stay
ARROW : Vehicle front
DISAS : Always replace after every disassembly.
BOLT : N•m (kg - m, ft - lb)
BOLTIN : N•m (kg - m, in - lb)
