Circuit Diagram

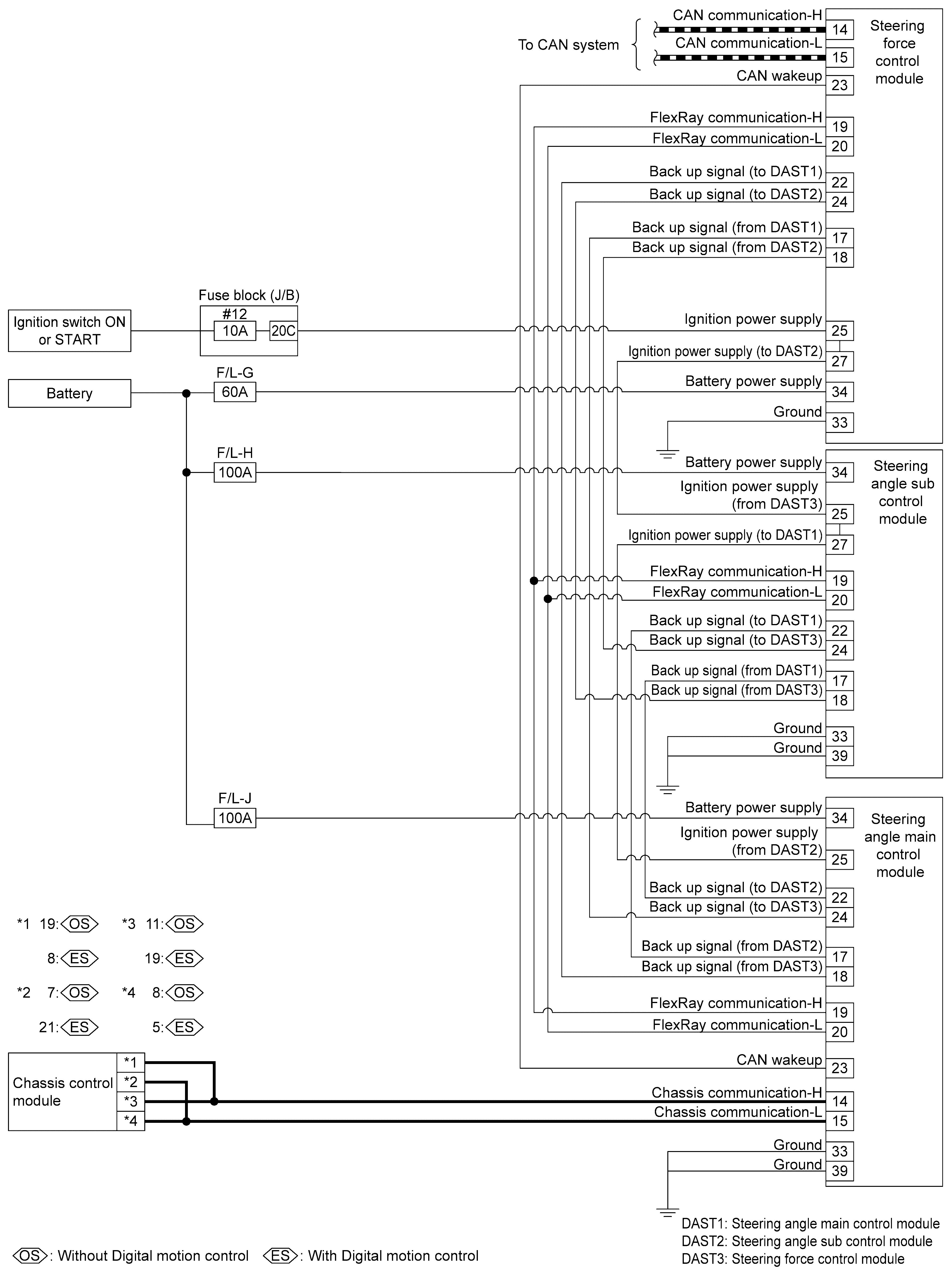

GNSJSGIA2217GB-217

Courtesy of NISSAN NORTH AMERICA, INC.

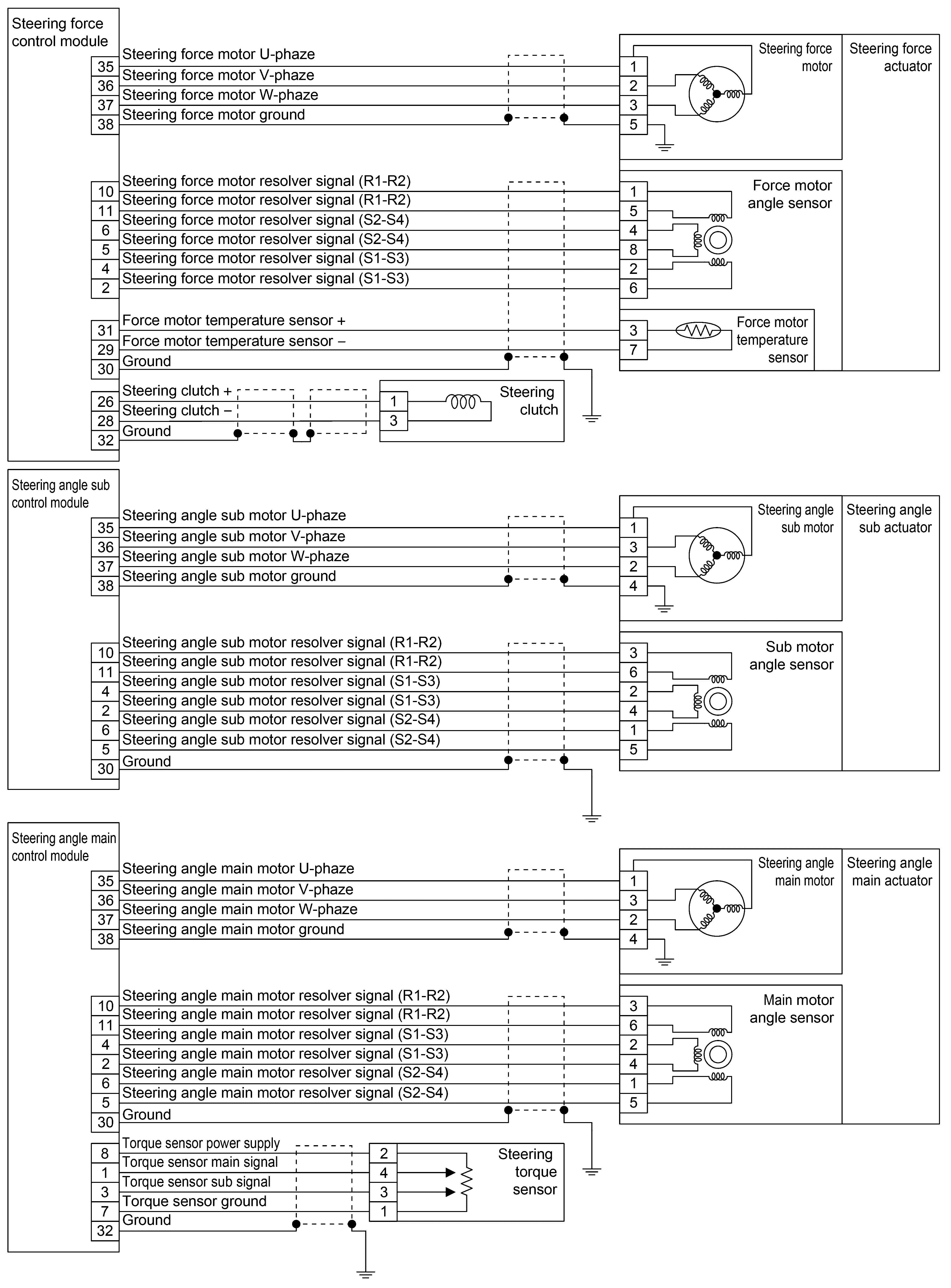

GNSJSGIA1862GB-862

Courtesy of NISSAN NORTH AMERICA, INC.

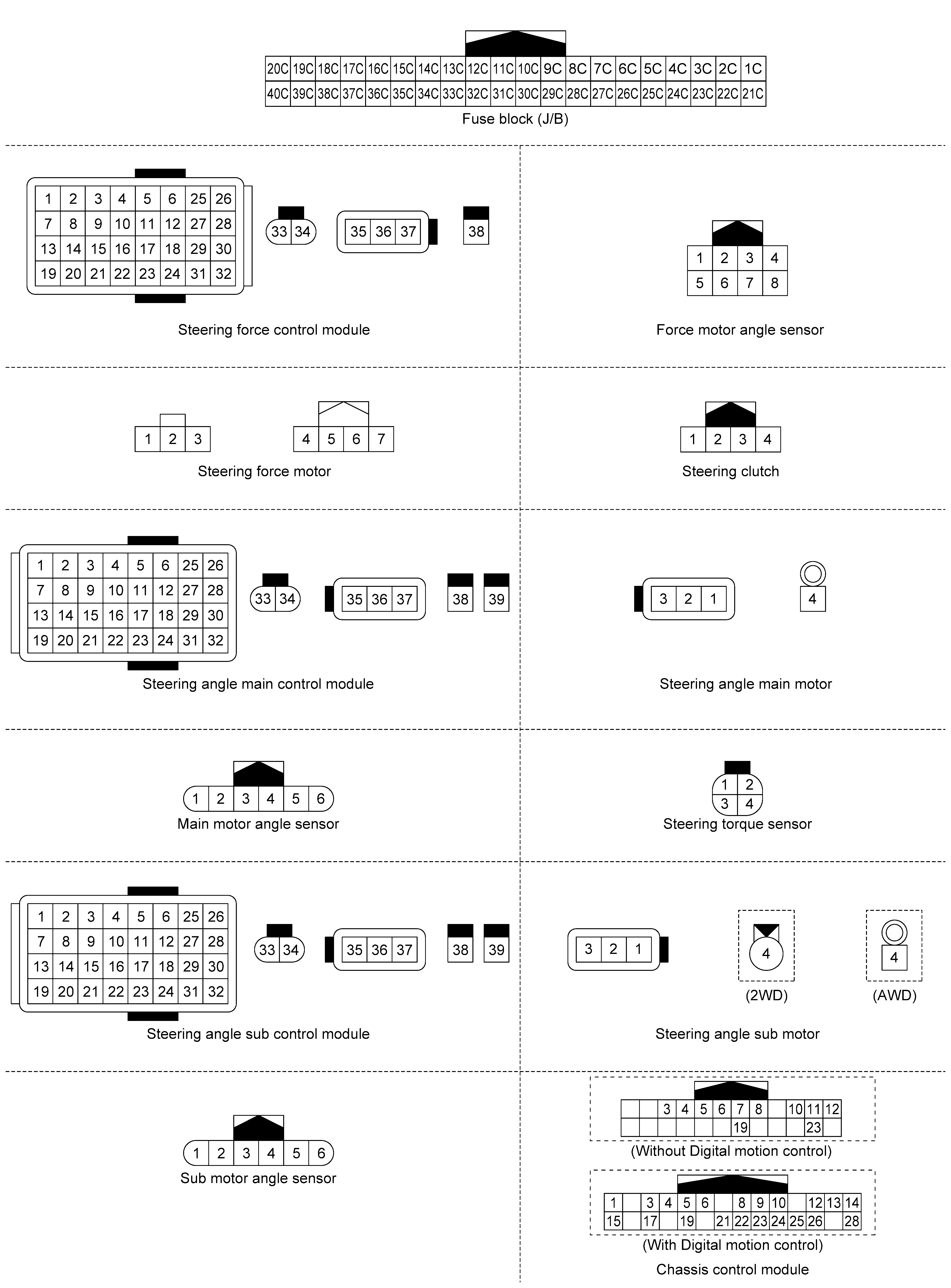

GNSJSGIA2218GB-218

Courtesy of NISSAN NORTH AMERICA, INC.
