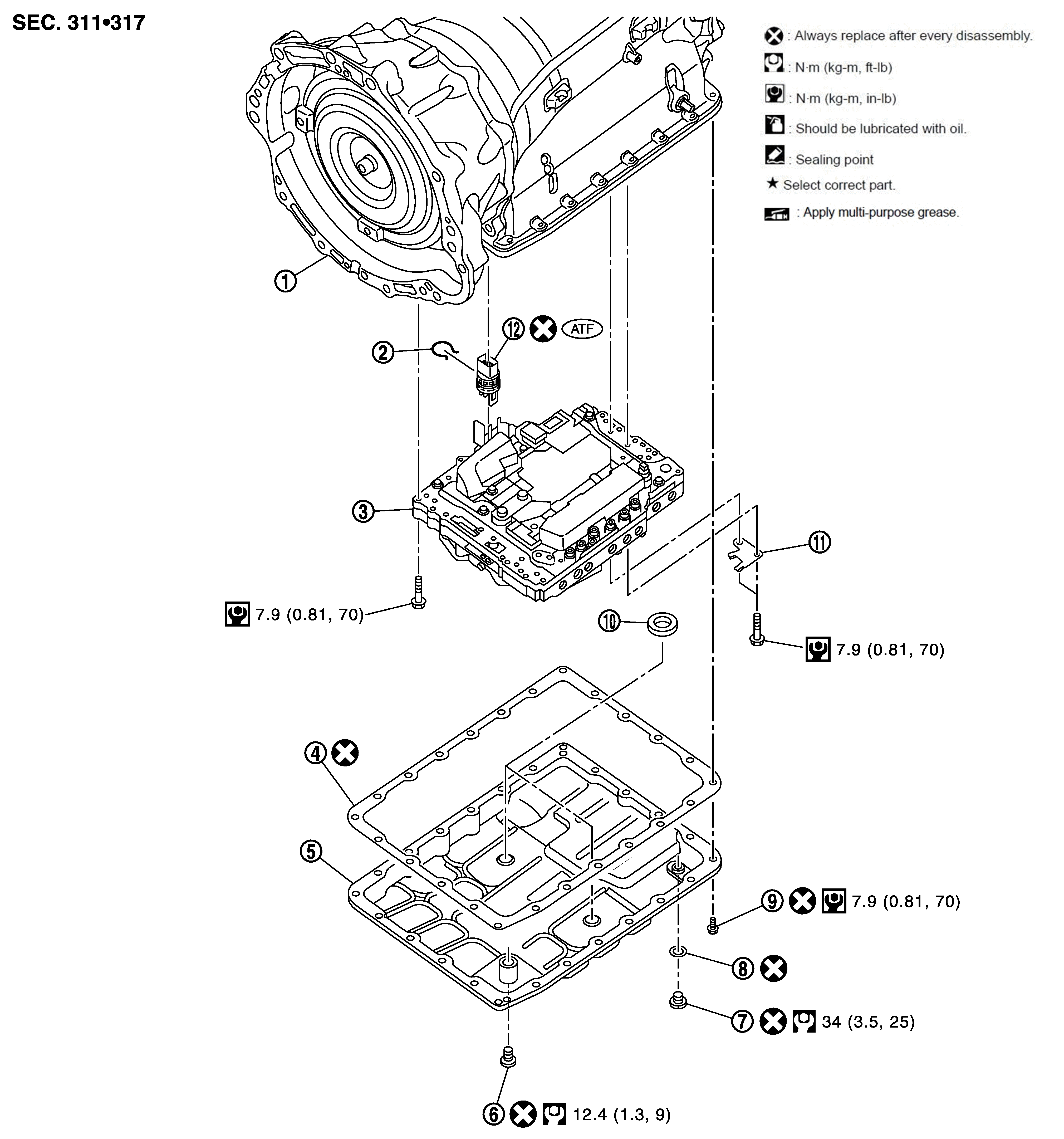

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Transmission Assembly	Snap Ring	Control Valve & TCM
Oil Pan Gasket	Oil Pan	Overflow Plug
Drain Plug	Drain Plug Gasket	Oil Pan Mounting Bolt
Magnet	Clip	Joint Connector
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Apply ATF
