Transmission Assembly: Assembly

  1. As shown in the figure below, use a drift [22 mm (0.87 in) dia. commercial service tool] to drive manual shaft oil seals into the transmission case until it is flush.
    G04075911Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse manual shaft oil seals.
    • Apply ATF to manual shaft oil seals.
  2. Install detent spring to transmission case. Tighten detent spring bolt to the specified torque.
    G08217844Courtesy of NISSAN NORTH AMERICA, INC.
    ARROWF : Bolt
  3. Install manual shaft to transmission case.
    G04075833Courtesy of NISSAN NORTH AMERICA, INC.
  4. Install parking rod WHITE-1 to manual plate WHITE-2 .
    G07013624Courtesy of NISSAN NORTH AMERICA, INC.
  5. Install manual plate (with parking rod) to manual shaft.
    G04075831Courtesy of NISSAN NORTH AMERICA, INC.
  6. Install retaining pin WHITE-1 into the manual plate and manual shaft.
    G07013626Courtesy of NISSAN NORTH AMERICA, INC.
    1. Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.
    2. Use a hammer to tap the retaining pin into the manual plate.
      (A) : Approx. 2 mm (0.08 in)
      CAUTION:

      Drive retaining pin to 2+-0.5 mm (0.08+-0.020 in) over the manual plate.

  7. Install retaining pin into the transmission case and manual shaft.
    G04075917Courtesy of NISSAN NORTH AMERICA, INC.
    1. Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.
    2. Use a hammer to tap the retaining pin into the transmission case.
      CAUTION:

      Drive retaining pin to 5+-1 mm (0.20+-0.04 in) over the transmission case.

  8. Install D-rings to reverse brake piston.
    G04121002Courtesy of NISSAN NORTH AMERICA, INC.
  9. Install reverse brake piston to transmission case.
    G04075923Courtesy of NISSAN NORTH AMERICA, INC.
  10. Install needle bearing to drum support edge surface.
    G04075924Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  11. Install seal rings to drum support.
    G04075925Courtesy of NISSAN NORTH AMERICA, INC.
  12. Install reverse brake spring retainer and reverse brake return spring to transmission case.
    G04075824Courtesy of NISSAN NORTH AMERICA, INC.
  13. Set the clutch spring compressor [SST: KV31102400 (J-34285 and J-34285-87)] (A) on reverse brake spring retainer and install snap ring (fixing spring retainer) WHITE-1 to transmission case while compressing return spring.
    G07165490Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Securely assemble them using a flat-bladed screwdriver so that snap ring tension is slightly weak.
    • Be careful not to damage snap ring.
  14. Install reverse brake component part (drive plates, driven plates, and dish plates) to transmission case.
    GNSJPDIA1135ZZ-135Courtesy of NISSAN NORTH AMERICA, INC.
    WHITE-1 : Snap Ring
    WHITE-2 : Retaining Plate
    WHITE-3 : Drive Plate (Six Pieces)
    WHITE-4 : Driven Plate (Six Pieces)
    WHITE-5 : Dish Plate
    WHITE-6 : Dish Plate
    CAUTION:

    Check order of plates.

  15. Assemble N-spring.
    G04121100Courtesy of NISSAN NORTH AMERICA, INC.
  16. Install reverse brake retaining plate to transmission case.
  17. Install snap ring to transmission case.
    G04075931Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Be careful not to damage snap ring.

  18. Measure clearance between retaining plate and snap ring. If not within specified clearance, select proper retaining plate.
    G04075932Courtesy of NISSAN NORTH AMERICA, INC.
    Specified clearance (A)
      Standard: Refer to REVERSE BRAKE CLEARANCE  or REVERSE BRAKE CLEARANCE .
    Retaining plate: Refer to REVERSE BRAKE CLEARANCE  or REVERSE BRAKE CLEARANCE .
  19. Install needle bearing to transmission case.
    G04075818Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  20. Install output speed sensor WHITE-1 to transmission case. Tighten output speed sensor bolt to the specified torque.
    G06578129Courtesy of NISSAN NORTH AMERICA, INC.
    ARROWF : Bolt
    CAUTION:
    • Never subject it to impact by dropping or hitting it.
    • Never disassemble.
    • Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Never place in an area affected by magnetism.
  21. As shown in the figure below, use the drift to drive rear oil seal into the rear extension (2WD) MARU-A-W or adapter case (AWD) MARU-B-W until it is flush.
    G00498564Courtesy of NISSAN NORTH AMERICA, INC.
    (1) : Drift [SST: 33400001 (J-26082)]
    (2) : Drift [Commercial service tool Ø64 mm (2.52 in)]
    CAUTION:
    • Never reuse rear oil seal.
    • Apply ATF to rear oil seal.
  22. Install return spring WHITE-1 to parking pawl WHITE-2 .
    G04075844Courtesy of NISSAN NORTH AMERICA, INC.
  23. Install parking pawl (with return spring) and pawl shaft to rear extension (2WD) or adapter case (AWD).
    G04075697Courtesy of NISSAN NORTH AMERICA, INC.
  24. Install parking actuator support to rear extension (2WD) or adapter case (AWD).
    G04075696Courtesy of NISSAN NORTH AMERICA, INC.
  25. Install needle bearing WHITE-1 to rear extension (2WD) or adapter case (AWD).
    G04120872Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  26. Install rear extension assembly (2WD) or adapter case assembly (AWD) according to the following procedures.
    1. 2WD
      1. Install seal rings WHITE-1 to output shaft.
        G05218659Courtesy of NISSAN NORTH AMERICA, INC.
      2. Install parking gear WHITE-1 to output shaft WHITE-2 .
        G05218658Courtesy of NISSAN NORTH AMERICA, INC.
      3. Install output shaft to transmission case.
        G04075815Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:

        Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)

      4. Install bearing race to output shaft.
        G04075692Courtesy of NISSAN NORTH AMERICA, INC.
      5. Apply recommended sealant to rear extension assembly as shown in the figure below.
        G07013558Courtesy of NISSAN NORTH AMERICA, INC.
        SEAL * : Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
        Sealant starting point and end-point MARU-A-W : Start and finish point shall be in the center of two bolts.
        Overlap width of sealant starting point and end-point (B) : 3 - 5 mm (0.12 - 0.20 in)
        Sealant width (C) : 1.0 - 2.0 mm (0.04 - 0.08 in)
        Sealant height (C) : 0.4 - 1.0 mm (0.016 - 0.04 in)
        CAUTION:

        Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.

      6. Install rear extension assembly to transmission case.
        G04075809Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:

        Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

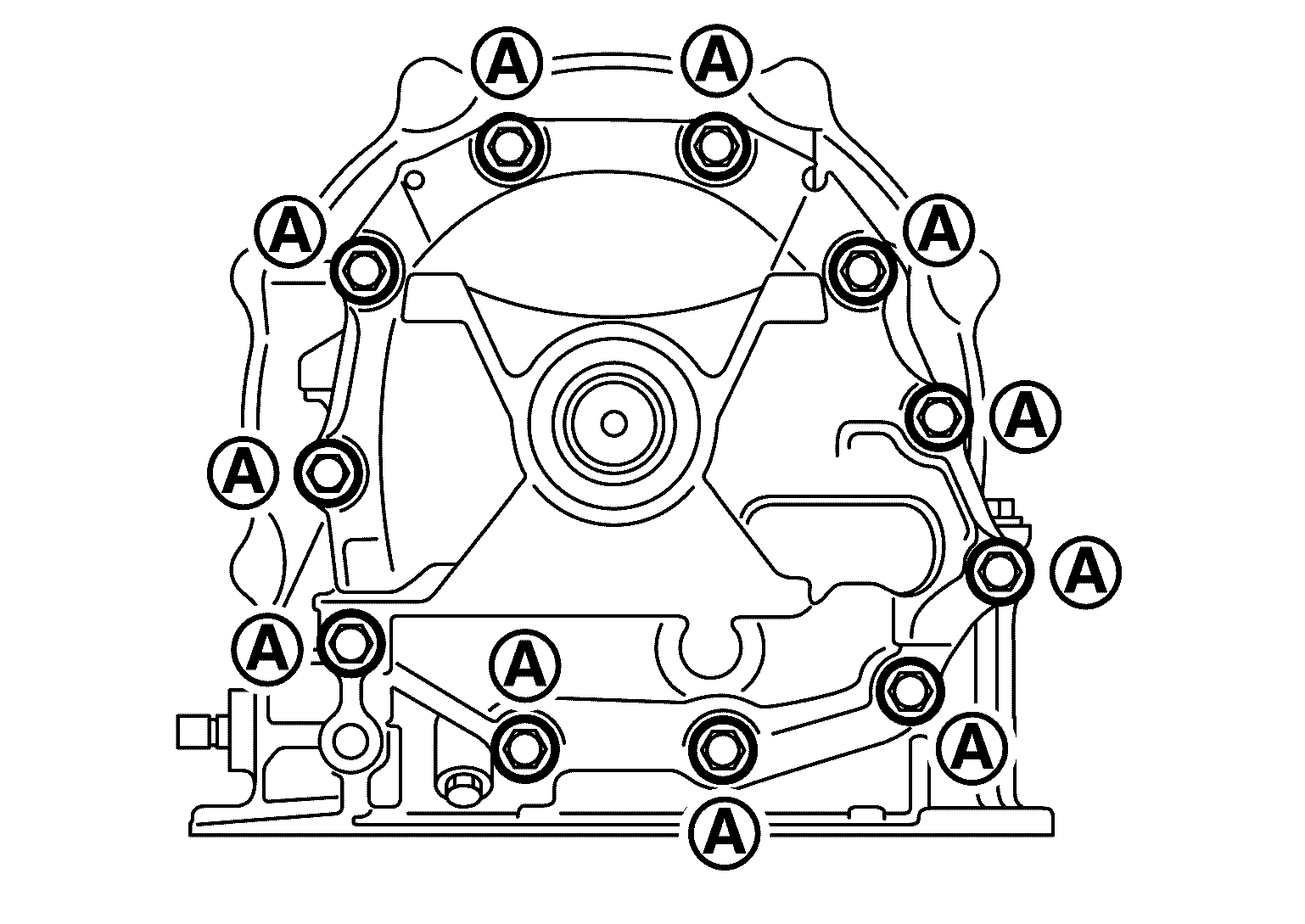

      7. Tighten rear extension assembly bolts to the specified torque.
        GNSJSDIA5919ZZ-919Courtesy of NISSAN NORTH AMERICA, INC.
        MARU-A-W : Bolt
    2. AWD
      1. Install seal rings WHITE-1 to output shaft.
        G05218659Courtesy of NISSAN NORTH AMERICA, INC.
      2. Install parking gear WHITE-1 to output shaft WHITE-2 .
        G05218658Courtesy of NISSAN NORTH AMERICA, INC.
      3. Install output shaft to transmission case.
        G04075815Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:

        Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)

      4. Install bearing race to output shaft.
        G04075692Courtesy of NISSAN NORTH AMERICA, INC.
      5. Install gasket onto transmission case.
        G04075813Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:
        • Completely remove all moisture, oil and old gasket, etc. from the transmission case and adapter case assembly mounting surfaces.
        • Never reuse gasket.
      6. Install adapter case assembly to transmission case.
        G04075812Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:

        Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the adapter case assembly.

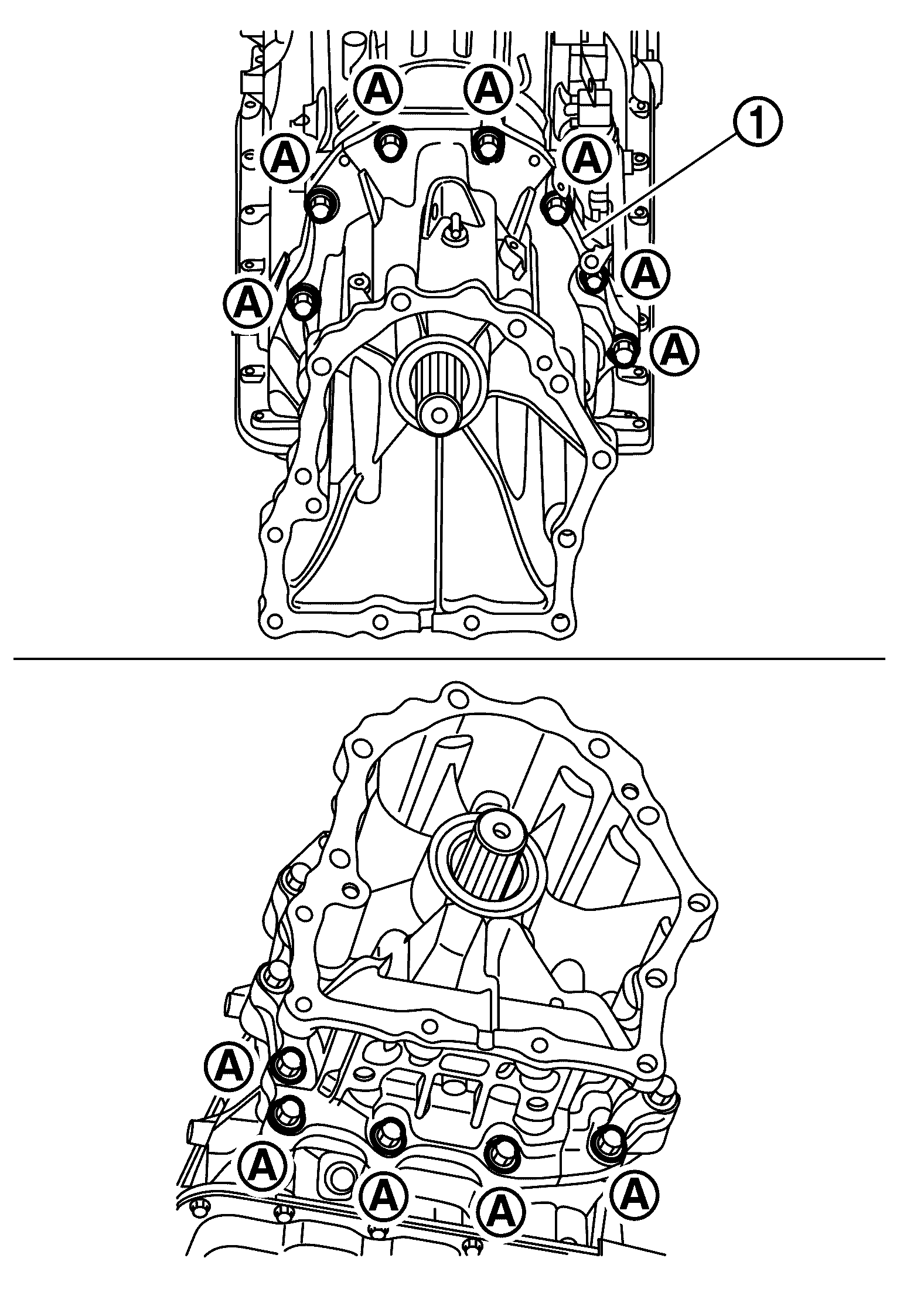

      7. Tighten adapter case assembly bolts to the specified torque.
        GNSJSDIA9110ZZ-110Courtesy of NISSAN NORTH AMERICA, INC.
        WHITE-1 : Bracket
        MARU-A-W : Bolt
  27. Install needle bearing to drum support.
    G04075789Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  28. Install direct clutch assembly to reverse brake.
    G04075788Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Make sure that drum support edge surface and direct clutch inner boss edge surface come to almost same place.

  29. Install high and low reverse clutch assembly to direct clutch.
    G04075787Courtesy of NISSAN NORTH AMERICA, INC.
  30. Align the drive plate using a flat-bladed screwdriver.
    G04075954Courtesy of NISSAN NORTH AMERICA, INC.
  31. Install high and low reverse clutch hub, mid sun gear assembly, and rear sun gear assembly as a unit.
    G04075786Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Make sure that portion (A) of high and low reverse clutch drum protrudes approximately 2 mm (0.08 in) beyond portion (B) of rear sun gear.

    G04075956Courtesy of NISSAN NORTH AMERICA, INC.
  32. Install needle bearing to rear carrier assembly.
    G04075785Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  33. Install bearing race to rear carrier assembly.
    G04075784Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  34. Install rear carrier assembly to direct clutch drum.
    G04075959Courtesy of NISSAN NORTH AMERICA, INC.
  35. Install needle bearing (rear side) to mid carrier assembly.
    G04075783Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  36. Install needle bearing (front side) to mid carrier assembly.
    G04075782Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  37. Install mid carrier assembly to rear carrier assembly.
    G04075780Courtesy of NISSAN NORTH AMERICA, INC.
  38. Install seal rings WHITE-1 to input clutch assembly.
    G07016116Courtesy of NISSAN NORTH AMERICA, INC.
  39. Install needle bearing WHITE-1 to front carrier assembly.
    G07016115Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  40. Install input clutch assembly (with front carrier assembly and rear internal gear) WHITE-1 to transmission case.
    G07013673Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check that the needle bearing WHITE-2 is securely positioned. If the needle bearing position is misaligned, adjust it to the specified position.

  41. Install 1st one-way clutch WHITE-1 to front brake hub (with under drive carrier) WHITE-2 .
    G07233702Courtesy of NISSAN NORTH AMERICA, INC.
  42. Check operation of 1st one-way clutch.
    1. Hold 1st one-way clutch.
    2. Check front brake hub for correct locking and unlocking directions.
      ARROWF : Unlocked
      ARROW : Locked
      CAUTION:

      If not as shown in figure above, check installation direction of 1st one-way clutch.

  43. Install under drive carrier (with 1st one-way clutch) WHITE-1 to transmission case.
    G07013675Courtesy of NISSAN NORTH AMERICA, INC.
  44. Install snap ring WHITE-1 to transmission case.
    G07016111Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Be careful not to damage snap ring.

  45. Install front brake component part (retaining plates, drive plates, and driven plate) to transmission case.
    GNSJPDIA1154ZZ-154Courtesy of NISSAN NORTH AMERICA, INC.
    WHITE-1 : Retaining plate (thin)
    WHITE-2 : Drive Plate
    WHITE-3 : Driven Plate
    WHITE-4 : Retaining Plate (Thick)
    ARROW : Front
    CAUTION:

    Check order of plates.

  46. Install needle bearing WHITE-1 to under drive carrier assembly.
    G07016109Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  47. Install under drive sun gear WHITE-1 to under drive carrier assembly.
    G07016107Courtesy of NISSAN NORTH AMERICA, INC.
  48. Adjustment of total end play "T".
    G07013680Courtesy of NISSAN NORTH AMERICA, INC.
    • Measure clearance between bearing race WHITE-1 and oil pump cover WHITE-2 .
    • Select proper thickness of bearing race so that end play is within specifications.
    1. Measure dimensions "K" and "L", and calculate dimension "J".
      G07160532Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Transmission Case
      WHITE-2 : Under Drive Sun Gear
      (A) : Straightedge
      "J" : Distance between the oil pump fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.
      J = K - L
      1. Measure dimension "K" between the converter housing fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.
        G07013682Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:
        • Never change the straightedge (A) installation position before the completion of "L" measurement.
        • Measure dimension "K" in at least three places, and take the average.
      2. Measure dimension "L" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.
        G07013683Courtesy of NISSAN NORTH AMERICA, INC.
        WHITE-1 : Transmission Case
        (A) : Straightedge
        CAUTION:

        Measure dimension "L" in at least three places, and take the average.

      3. Measure dimension "K" and "L" in at least three places, and take the average.
      4. Calculate dimension "J".
        J = K - L
    2. Measure dimensions "M1 " and "M2 ", and calculate dimension "M".
      G07174127Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Bearing Race
      WHITE-2 : Needle Bearing
      WHITE-3 : Oil Pump Assembly
      (A) : Straightedge
      "M" : Distance between the transmission case fitting surface of oil pump and the needle bearing on oil pump.
      M = M1 - M2
      1. Place bearing race WHITE-1 and needle bearing WHITE-2 on oil pump assembly WHITE-3 .
        G07013685Courtesy of NISSAN NORTH AMERICA, INC.
      2. Measure dimension "M1 " between the transmission case fitting surface of oil pump and the end of oil pump.
        G08240495Courtesy of NISSAN NORTH AMERICA, INC.
        WHITE-1 : Bearing race
        WHITE-2 : Needle bearing
        WHITE-3 : Oil pump assembly
        (A) : Straightedge
        CAUTION:

        Measure dimension "M1 " in at least three places, and take the average.

      3. Measure dimension "M2 " between the needle bearing on oil pump and the end of oil pump.
        GNSJSDIA1703ZZ-703Courtesy of NISSAN NORTH AMERICA, INC.
        WHITE-1 : Bearing Race
        WHITE-2 : Needle Bearing
        WHITE-3 : Oil Pump Assembly
        (A) : Straightedge
        CAUTION:

        Measure dimension "M2 " in at least three places, and take the average.

      4. Calculate dimension "M".
        M = M1 - M2
    3. Adjust total end play "T".
      G07013680Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Bearing Race
      WHITE-2 : Oil Pump Assembly
      T = J - M
      Total End Play "T" : Refer to TOTAL END PLAY  or TOTAL END PLAY .
      • Select proper thickness of bearing race so that total end play is within specifications.
        Bearing Races : Refer to TOTAL END PLAY  or TOTAL END PLAY .
  49. Adjustment of front brake clearance "C".
    G07013689Courtesy of NISSAN NORTH AMERICA, INC.
    • Measure clearance between front brake piston WHITE-1 and front brake retaining plate WHITE-2 .
    • Select proper thickness of front brake retaining plat so that clearance is within specifications.
    1. Measure dimensions "O" and "P", and calculate dimension "N".
      GNSJSDIA1705ZZ-705Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Transmission case
      WHITE-2 : Front Brake Retaining Plate
      (A) : Straightedge
      "N" : Distance between the oil pump fitting surface of transmission case and the front brake retaining plate.
      N = O - P
      1. Measure dimension "O" between the converter housing fitting surface of transmission case WHITE-1 and the front brake retaining plate WHITE-2 .
        G08104256Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:
        • Never change the straightedge (A) installation position before the completion of "P" measurement.
        • Measure dimension "O" in at least three places, and take the average.
      2. Measure dimension "P" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.
        GNSJSDIA1707ZZ-707Courtesy of NISSAN NORTH AMERICA, INC.
        WHITE-1 : Transmission case
        (A) : Straightedge
        CAUTION:

        Measure dimension "P" in at least three places, and take the average.

      3. Calculate dimension "N".
        N = O - P
    2. Measure dimensions "Q1 " and "Q2 ", and calculate dimension "Q".
      GNSJSDIA1708ZZ-708Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Front Brake Piston
      WHITE-2 : Oil Pump Assembly
      (A) : Straightedge
      "Q" : Distance between the transmission case fitting surface of oil pump and the front brake piston.
      Q = Q1 - Q2
      1. Measure dimension "Q1 " between the transmission case fitting surface of oil pump and the straightedge on front brake piston.
        GNSJSDIA1709ZZ-709Courtesy of NISSAN NORTH AMERICA, INC.
        WHITE-1 : Front Brake Piston
        WHITE-2 : Oil Pump Assembly
        (A) : Straightedge
        CAUTION:

        Measure dimension "Q1 " in at least three places, and take the average.

      2. Measure dimension "Q2 " of the straightedge.
        GNSJSDIA1711ZZ-711Courtesy of NISSAN NORTH AMERICA, INC.
        WHITE-1 : Front Brake Piston
        WHITE-2 : Oil Pump Assembly
        (A) : Straightedge
      3. Calculate dimension "Q".
        Q = Q1 - Q2
    3. Adjust front brake clearance "C".
      G07013689Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Front Brake Piston
      WHITE-2 : Front Brake Retaining Plate
      C = N - Q
      Front brake clearance "C" : Refer to FRONT BRAKE CLEARANCE  or FRONT BRAKE CLEARANCE .
  50. Remove under drive sun gear WHITE-1 from under drive carrier assembly.
    G07016107Courtesy of NISSAN NORTH AMERICA, INC.
  51. Install needle bearing WHITE-1 to under drive sun gear.
    G07016108Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Check the direction of needle bearing. Refer to LOCATION OF NEEDLE BEARINGS AND BEARING RACES .

  52. Install O-ring WHITE-1 to oil pump assembly.
    G07016104Courtesy of NISSAN NORTH AMERICA, INC.
  53. Install seal ring WHITE-1 to oil pump assembly.
    G07016106Courtesy of NISSAN NORTH AMERICA, INC.
  54. Install bearing race WHITE-1 to oil pump assembly.
    G07016105Courtesy of NISSAN NORTH AMERICA, INC.
  55. Install under drive sun gear (with needle bearing) WHITE-1 to oil pump assembly WHITE-2 .
    G07013702Courtesy of NISSAN NORTH AMERICA, INC.
  56. Install oil pump assembly (with under drive sun gear) to transmission case.
    G04075983Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Apply ATF to oil pump bearing.

  57. Apply recommended sealant to oil pump assembly as shown in the figure below.
    G07013704Courtesy of NISSAN NORTH AMERICA, INC.
    SEAL : Genuine RTV silicone sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
    CAUTION:

    Completely remove all moisture, oil and old sealant, etc. from the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.

  58. Tighten oil pump bolts (ARROWF ) to the specified torque.
    G07013606Courtesy of NISSAN NORTH AMERICA, INC.
  59. Install O-ring to input clutch assembly.
    G04075768Courtesy of NISSAN NORTH AMERICA, INC.
  60. Install converter housing to transmission case, and tighten converter housing bolts (ARROWF ) to the specified torque.
    G07013604Courtesy of NISSAN NORTH AMERICA, INC.
  61. Connect TCM connector MARU-A-W to joint connector.
    G07016135Courtesy of NISSAN NORTH AMERICA, INC.
  62. Install joint connector WHITE-1 to the Control Valve & TCM.
    G07013709Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Apply ATF to O-ring of joint connector.

  63. Install the Control Valve & TCM WHITE-1 to transmission case.
    G07016133Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Make sure that input speed sensor securely installs input speed sensor holes MARU-A-W .
      G07013524Courtesy of NISSAN NORTH AMERICA, INC.
    • Hang down output speed sensor harness toward outside so as not to disturb installation of the Control Valve & TCM.
    • Adjust joint connector of the Control Valve & TCM to terminal hole of transmission case.
    • Assemble it so that manual valve cutout is engaged with manual plate projection.
      G04075996Courtesy of NISSAN NORTH AMERICA, INC.
  64. Install bolts and clip WHITE-1 to the Control Valve & TCM. Tighten bolt MARU-E-W to the specified torque before tightening the other than bolts.
    G07023164Courtesy of NISSAN NORTH AMERICA, INC.
    ARROW : Front
    Bolt Symbol Length mm (in) Number Of Bolts
    MARU-A-W 43 (1.69) 3
    MARU-B-W 40 (1.57) 2
    MARU-C-W 54 (2.13) 6
    MARU-D-W 50 (1.97) 2
    MARU-E-W * 50 (1.97) 1

    *: Reamer bolt

  65. Connect output speed sensor connector (A).
    G07013520Courtesy of NISSAN NORTH AMERICA, INC.
  66. Engage output speed sensor harness with terminal clips (ARROWF ).
  67. Pull down joint connector WHITE-1 .
    G07013715Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Be careful not to damage connector.

  68. Install snap ring WHITE-1 to joint connector WHITE-2 .
    G07013716Courtesy of NISSAN NORTH AMERICA, INC.
  69. Install magnets WHITE-1 to oil pan.
    G05218607Courtesy of NISSAN NORTH AMERICA, INC.
  70. Install oil pan gasket to transmission case.
    CAUTION:
    • Never reuse oil pan gasket.
    • Install it in the direction to align hole positions.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

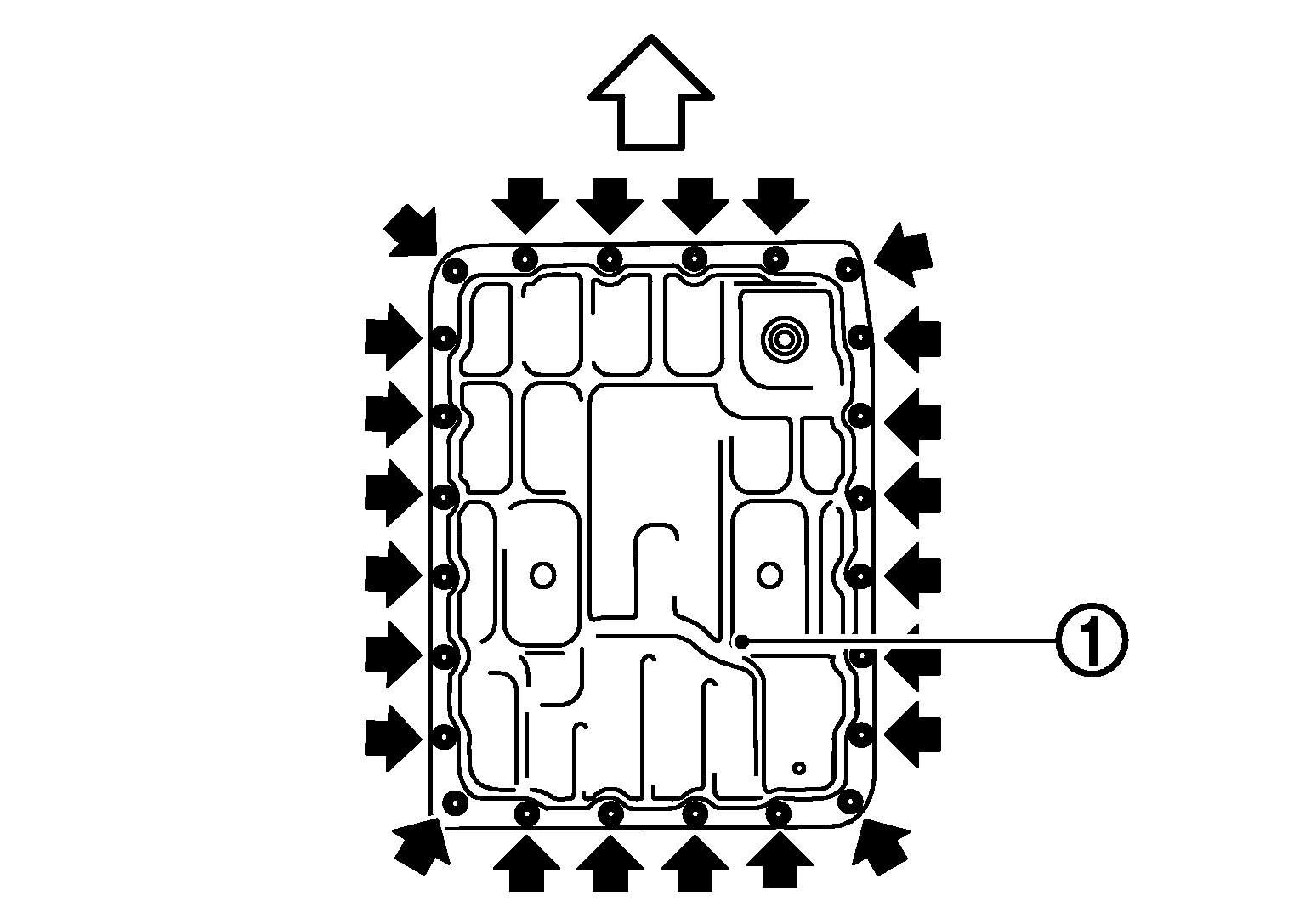

  71. Install oil pan WHITE-1 to transmission case.
    GNSJPDIA1073ZZ-073Courtesy of NISSAN NORTH AMERICA, INC.
    ARROW : Front
    ARROWF : Oil pan mounting bolt
    CAUTION:
    • Be careful not to pinch harnesses.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
  72. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure below after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.
    Fig 1: Oil Pan Mounting Bolts Tightening Sequence
    G05980481Courtesy of NISSAN NORTH AMERICA, INC.
    ARROW : Front
    CAUTION:

    Never reuse oil pan mounting bolts.

  73. Install drain plug to oil pan. Tighten drain plug to the specified torque.
    CAUTION:

    Never reuse drain plug gasket.

  74. Pour ATF into torque converter.
    G04076008Courtesy of NISSAN NORTH AMERICA, INC.
    • Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is required for a new torque converter.
    • When reusing old torque converter, add the same amount of ATF as was drained.
  75. Install torque converter while aligning notches of torque converter with notches of oil pump.
    G04075765Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Install torque converter while rotating it.

  76. Measure dimension "A" to make sure that torque converter is in proper position.
    G05218710Courtesy of NISSAN NORTH AMERICA, INC.
    (B) : Scale
    (C) : Straightedge
    Dimension (A) : Refer to TORQUE CONVERTER  or TORQUE CONVERTER .
scientia non olet · About LEMON Manuals
