Precaution For Lane Camera Unit Or Lane Camera Unit 2

Windshield prohibited area of affixing stickers or accessories.

CAUTION:

Never affix a sticker (including transparent one) or install an accessory to the detecting range of Lane Camera Unit or Lane Camera Unit 2.

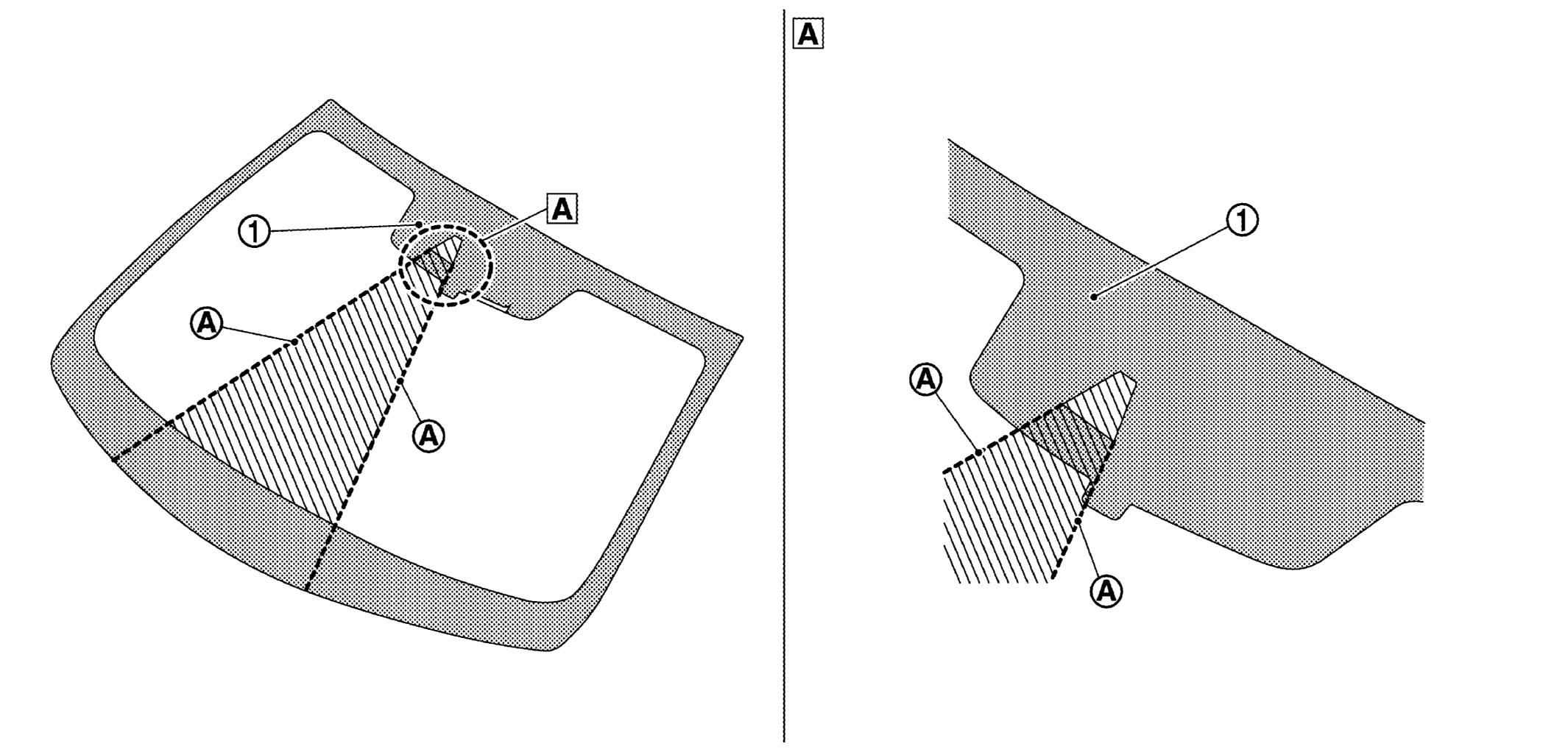

The area within the lines extended from notch of windshield upper portion printed in black is the detecting range of Lane Camera Unit or Lane Camera Unit 2. Affixing a sticker or accessory to this range is prohibited.

With Active Lane Control

Courtesy of NISSAN NORTH AMERICA, INC.

	Windshield Upper Position
	Black Print Part
	Line extended from notch (Lane Camera Unit)		Line extended from notch (Lane Camera Unit 2)

Without Active Lane Control

Courtesy of NISSAN NORTH AMERICA, INC.

	Windshield Upper Position
	Black print part
	Line extended from notch (Lane Camera Unit)
