System Display - DCA/LDP/Blind Spot Intervention

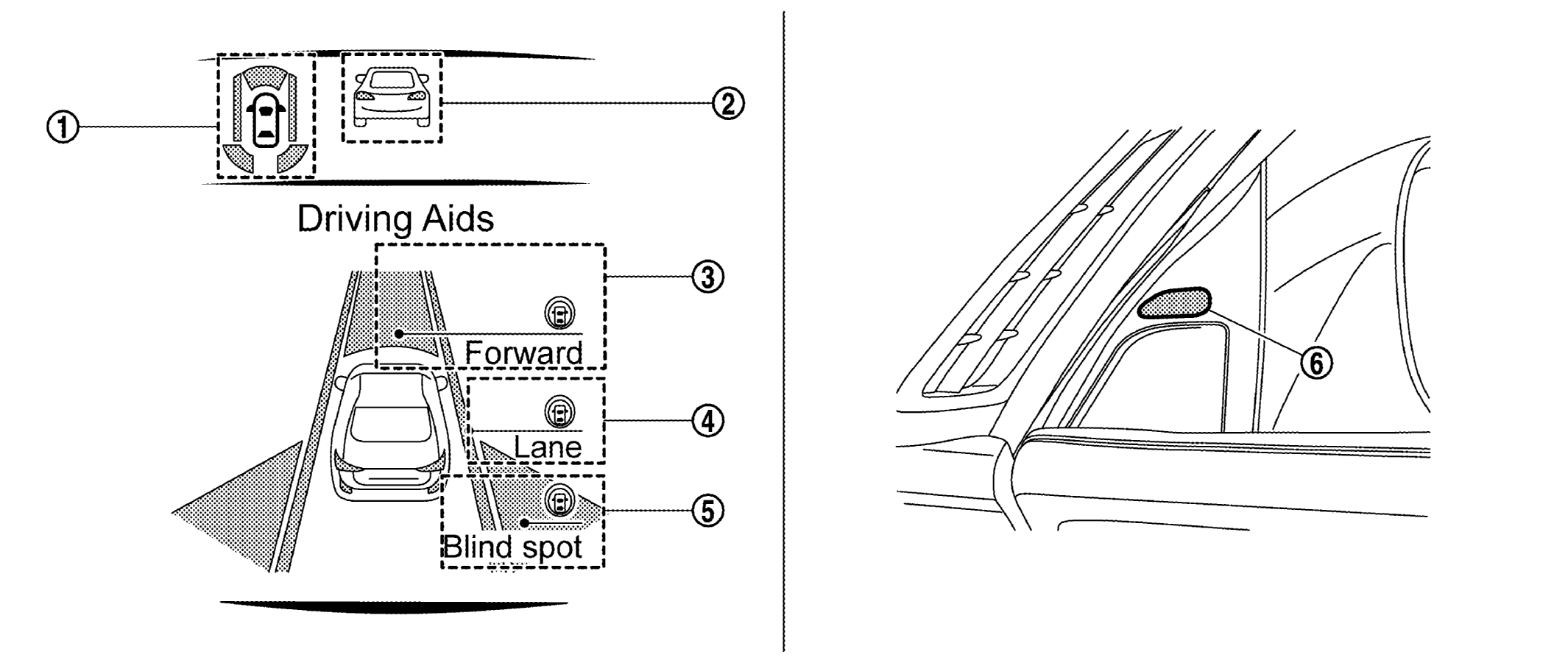

GNSJSOIA2557ZZ-557Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch Name Description
WHITE-1 Dynamic Driver Assistance Systems Indicator Indicates that DCA/LDP/Blind Spot Intervention systems are ON
WHITE-2 Vehicle Ahead Detection Indicator Indicates whether it detects a vehicle ahead
NOTE:

The vehicle ahead detection indicator turns OFF when the no operation condition is satisfied
WHITE-3 Dynamic Driver Assistance Systems Indicator "Forward" Position
(Dynamic Driver Assistance Icon)		 Indicates that DCA Systems are ON
WHITE-4 Dynamic Driver Assistance Systems Indicator "Lane" Position
(Dynamic Driver Assistance Icon)		 Indicates that LDP systems are ON
WHITE-5 Dynamic Driver Assistance Systems Indicator "Blind Spot" Position
(Dynamic Driver Assistance Icon)		 Indicates that Blind Spot Intervention systems are ON
WHITE-6 Blind Spot Warning/Blind Spot Intervention Indicator LH/RH
  • Illuminates when detect other vehicles beside vehicle in an adjacent lane
  • Blinks when Blind Spot Intervention system is warning to driver
