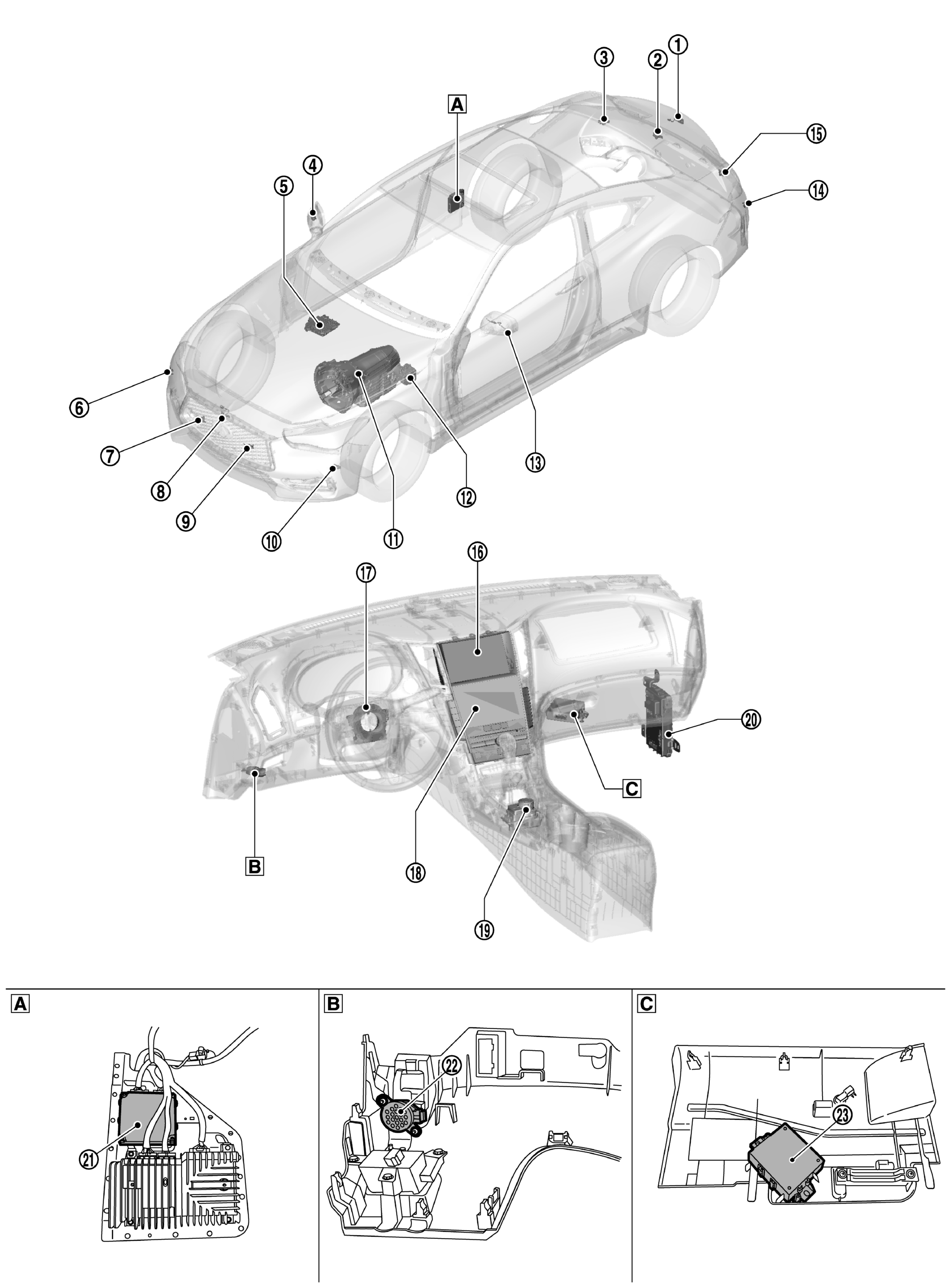

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Rear pillar inner reinforcement RH removed condition

Instrument lower panel LH removed condition

Instrument lower panel RH removed condition

No.	Component	Function
	Rear Camera	Refer to REAR CAMERA .
	Center Sensor Rear RH	Refer to SONAR SENSOR .
	Corner Sensor Rear RH	Refer to SONAR SENSOR .
	Side Camera RH	Refer to SIDE CAMERA .
	ECM	Transmits the shift position signal to the Around View Monitor Control Unit. (2.0L turbo gasoline engine models) Refer to COMPONENT LOCATION , for detailed installation location.
	Corner Sensor Front RH	Refer to SONAR SENSOR .
	Center Sensor Front RH	Refer to SONAR SENSOR .
	Front Camera	Refer to FRONT CAMERA .
	Center Sensor Front LH	Refer to SONAR SENSOR .
	Corner Sensor Front LH	Refer to SONAR SENSOR .
	TCM	Transmits the shift position signal to the Around View Monitor Control Unit. (VR30DDTT engine models) Refer to COMPONENT LOCATION , for detailed installation location.
	ABS Actuator And Electric Unit (Control Unit)	Transmits the following signals to the display Control Unit. Vehicle speed signal Rear LH wheel speed signal Rear RH wheel speed signal Refer to COMPONENT LOCATION , for detailed installation location.
	Side Camera LH	Refer to SIDE CAMERA .
	Corner Sensor Rear LH	Refer to SONAR SENSOR .
	Center Sensor Rear LH	Refer to SONAR SENSOR .
	Display Control Unit	Camera image signal that is received from Around View Monitor Control Unit is displayed in the display. Transmits the following signals to the Around View Monitor Control Unit. Camera Switch signal
	Steering Angle Sensor	Refer to STEERING ANGLE SENSOR .
	Integral Switch	Push switch B signal and camera switch signal are transmitted from integral switch to the display Control Unit.
	Multifunction Switch	When the "CAMERA" switch is pressed, the push switch B signal is transmitted to integral switch.
	BCM	Transmits the following signals to the Around View Monitor Control Unit. Door switch signal Trunk switch signal Refer to COMPONENT LOCATION , for detailed installation location.
	Around View Monitor Control Unit	Refer to AROUND VIEW MONITOR CONTROL UNIT .
	Buzzer	Refer to BUZZER .
	Sonar Control Unit	Refer to SONAR CONTROL UNIT .
