Exploded View With Torque Specifications

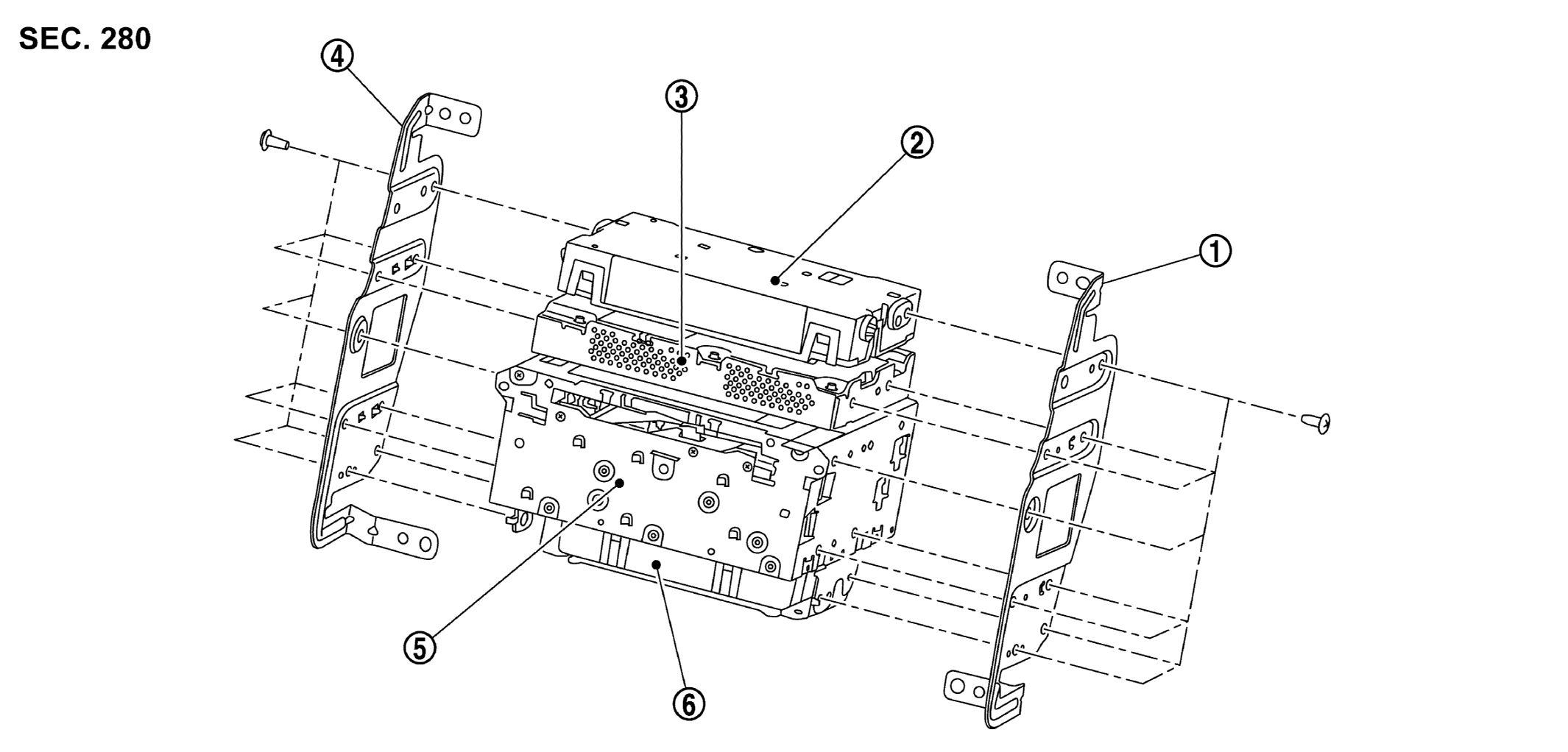

GNSJSNIB0414ZZ-414Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Bracket RH WHITE-2 A/C Auto Amp. WHITE-3 NAVI Control Unit
WHITE-4 Bracket LH WHITE-5 AV Control Unit WHITE-6 TCU
