Exploded View: Disassembly

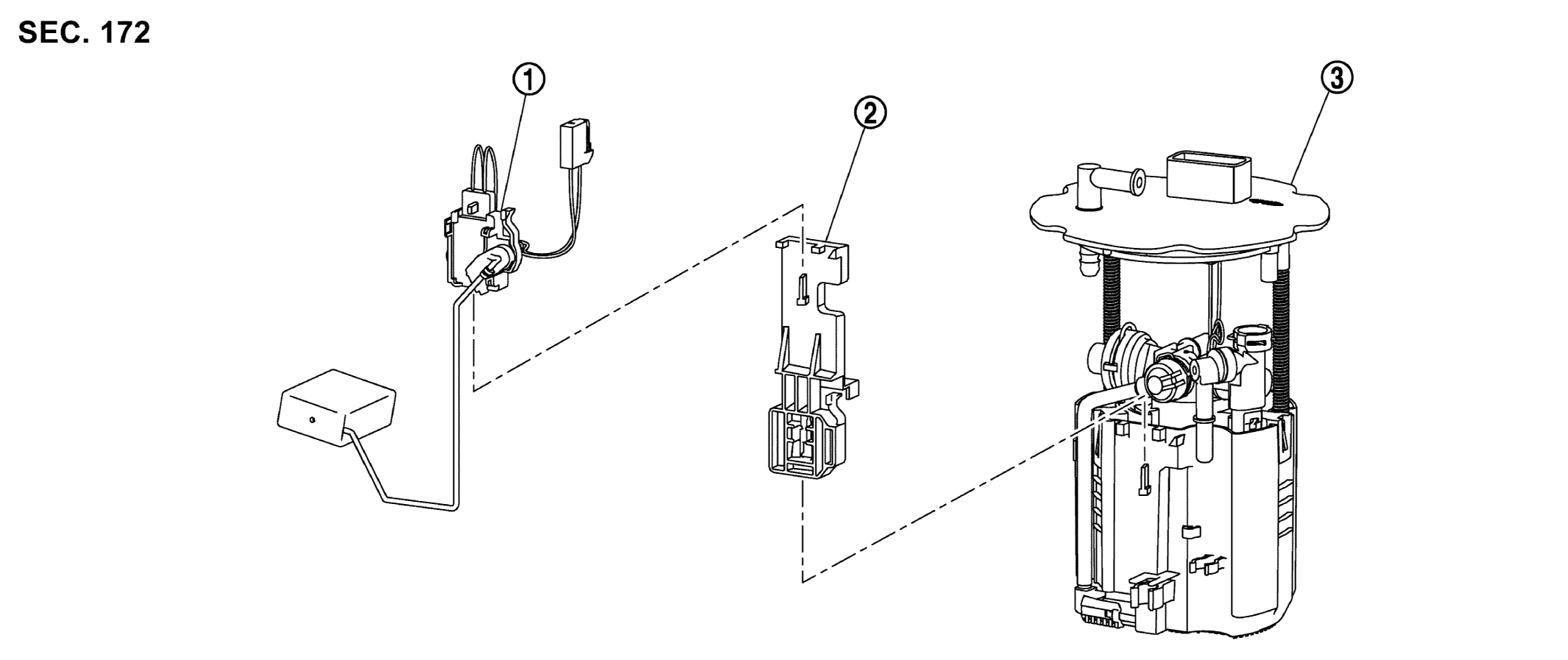

GNSJSBIA9507ZZ-507Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Main Fuel Level Sensor Unit WHITE-2 Adapter WHITE-3 Fuel Filter And Fuel Pump Assembly
NOTE:

Sub Fuel Level Sensor Unit cannot be disassembled and should be replaced as a unit.
