High Pressure Fuel Circuit

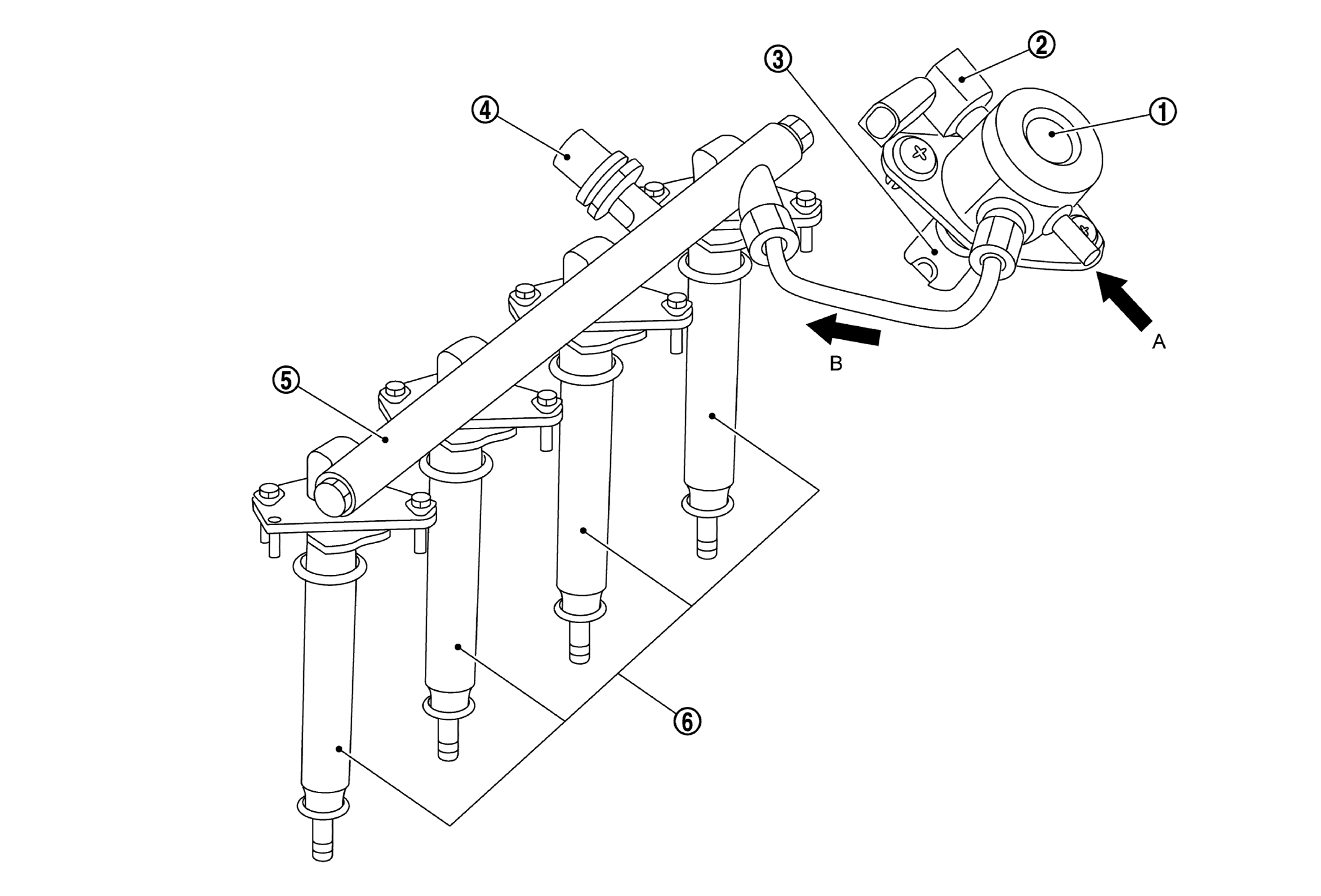

| High pressure fuel pump | Quantity control valve | Drive plate | |||
| Fuel pressure and temperature sensor | Fuel rail | Fuel injector | |||
| A | Fuel feed from fuel tank (low pressure fuel) |
B | Fuel feed to the rail (high pressure fuel) |
ECM controls fuel rail pressure by controlling the quantity control valve according to a signal transmitted from the fuel pressure and temperature sensor and adjusting fuel pressure necessary to the direct injection in the high pressure circuit to approximately 20 MPa (200 bar, 204 kg/cm2 , 2, 900 psi).
The high pressure circuit has control items as follow.
- Fuel feed
- Fuel pressure control
