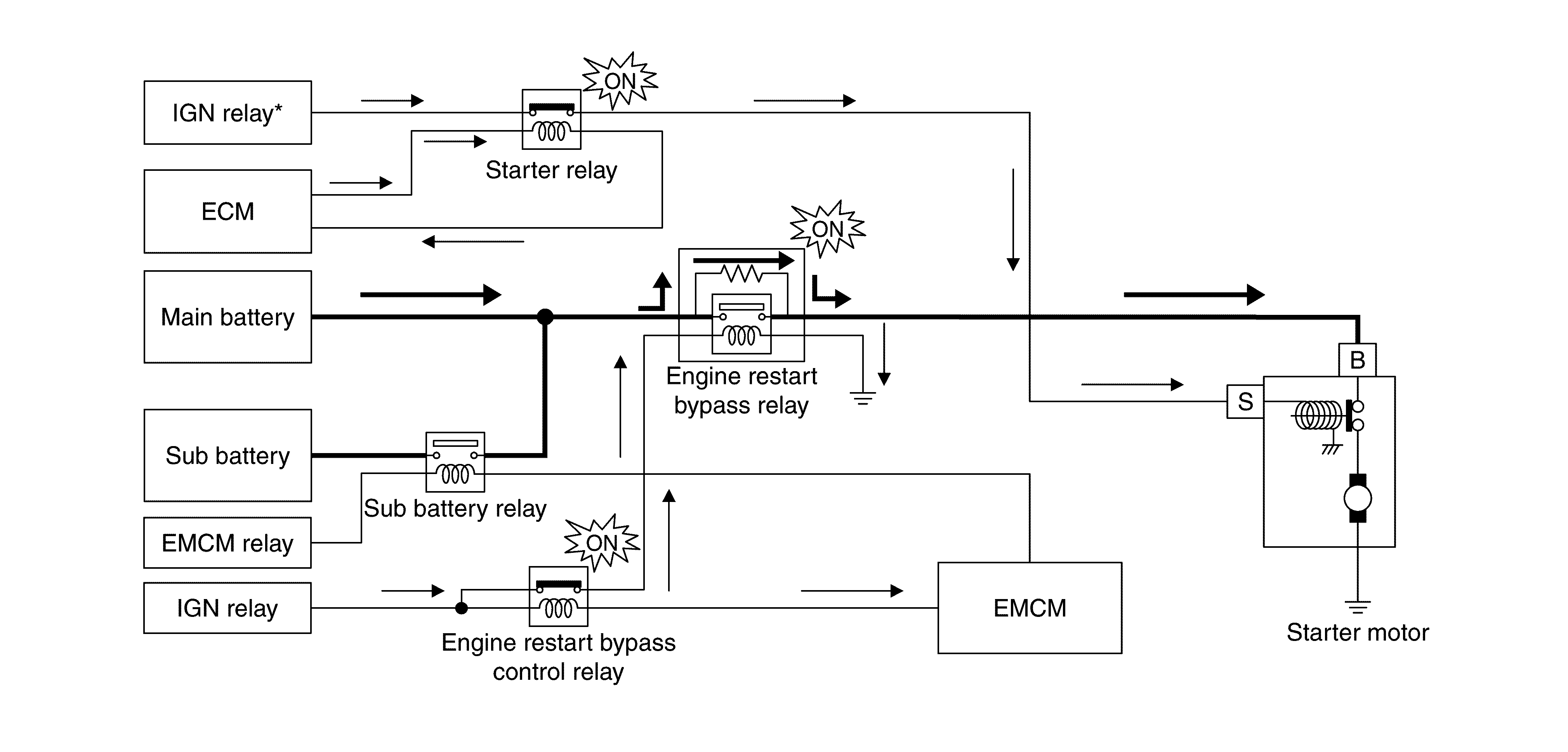

Control Flow - During Engine Restart By Stop/Start System
*: Fuse and Fusible Link Block
When engine is restarted, ECM turns ON the Starter Relay. At the same time, EMCM turns ON the Engine Restart Bypass Control Relay and activates the Engine Restart Bypass Relay. When the starter motor is rotating, EMCM turns OFF the Engine Restart Bypass Control Relay to deactivate the Engine Restart Bypass Relay.
