Engine Control System (Introduction) (2.0L Turbo)
>>
System Description
>>
System
>>
Stop/Start System
>>
System Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

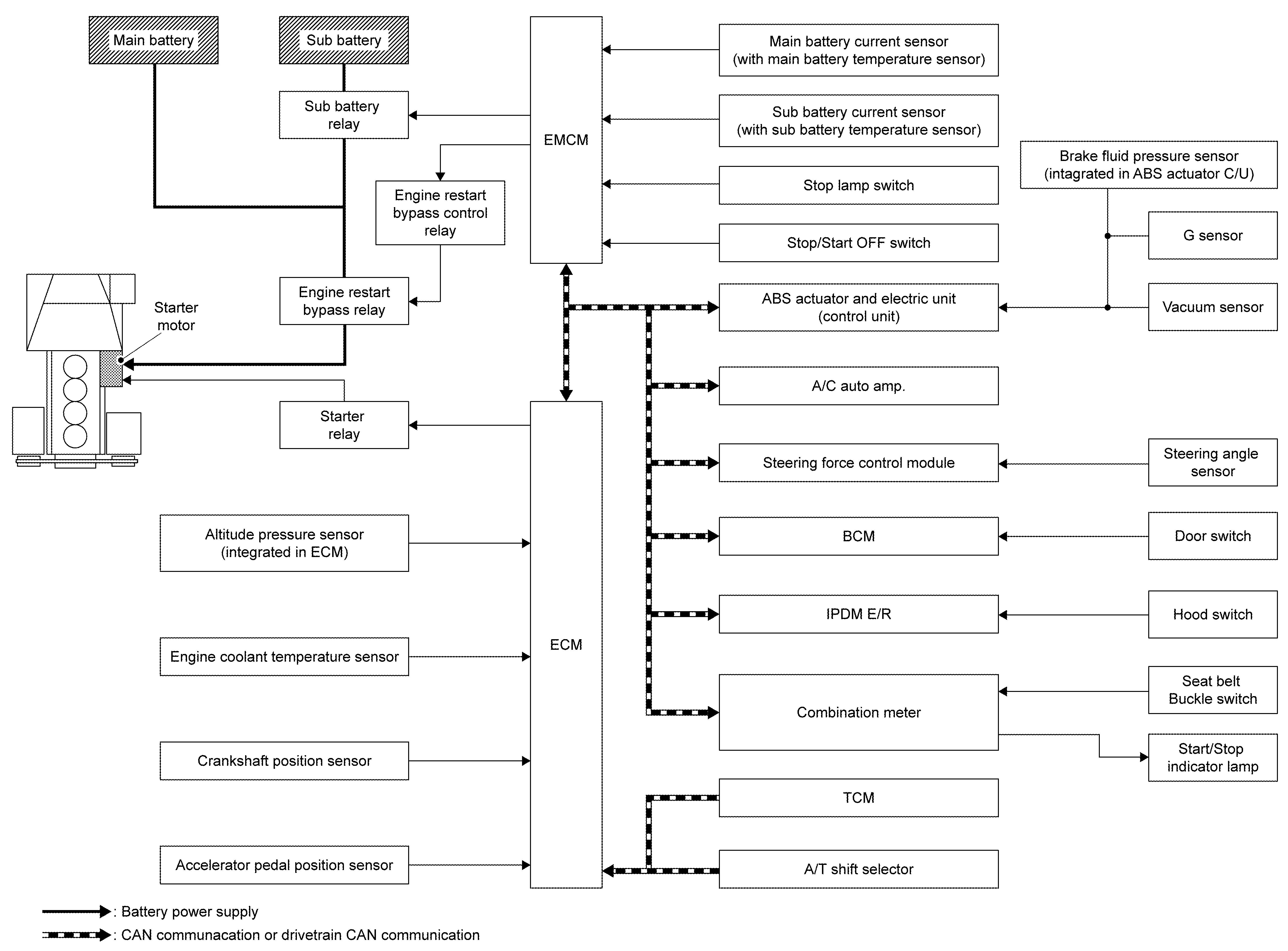

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: Steering force control module is power steering control module.
Courtesy of NISSAN NORTH AMERICA, INC.
