Switches And Their Control Function

Courtesy of NISSAN NORTH AMERICA, INC.

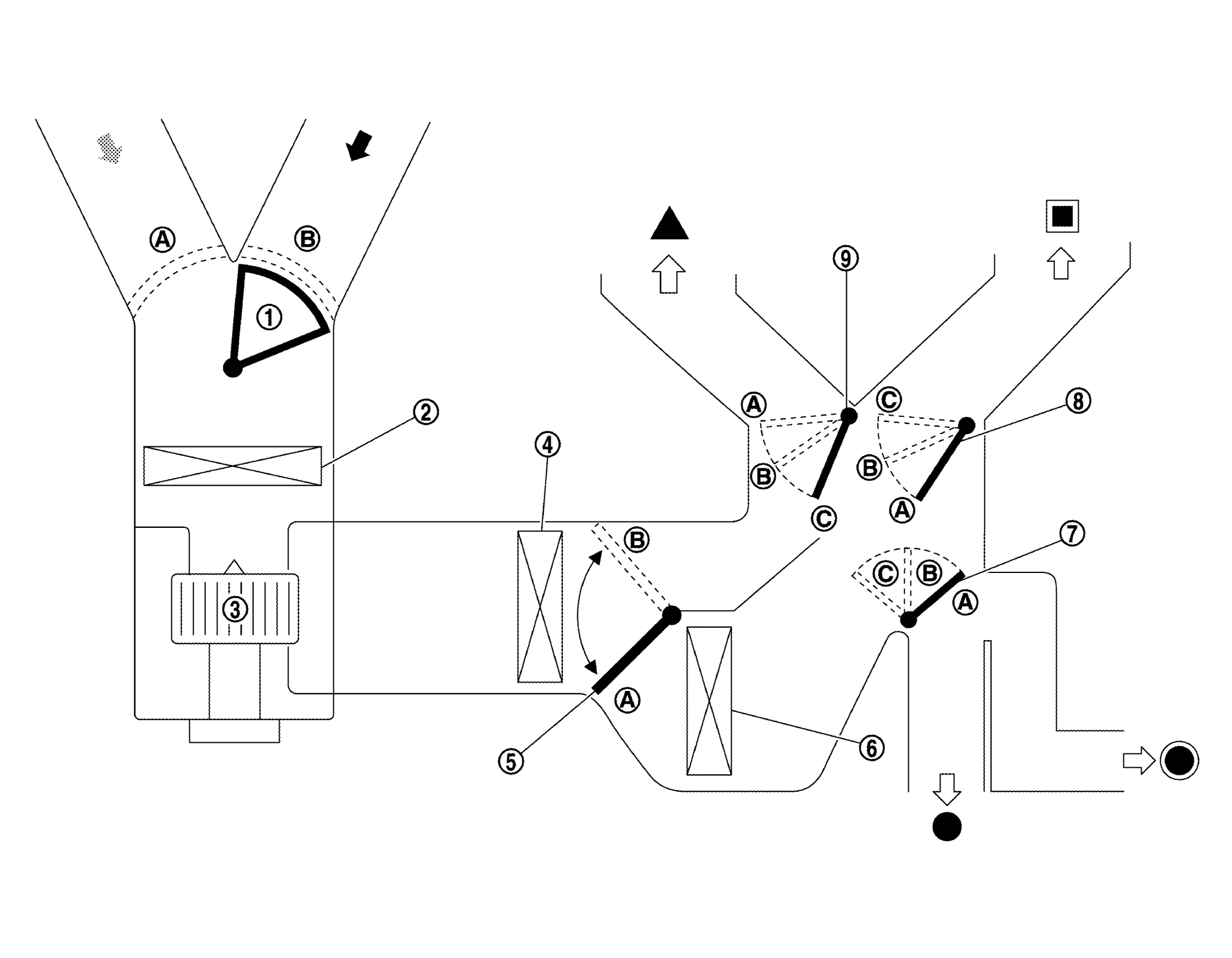

	Intake Door		In-Cabin Microfilter		Blower Motor
	Evaporator		Air Mix Door (Driver Side/Passenger Side)		Heater Core
	Foot Door		Ventilator Door		Defroster Door
	Fresh Air		Recirculation Air		Discharge Air
	Defroster		Ventilator		Front Foot
	Rear Foot

Switch Position				Door Position
				Mode Door			Intake Door	Air Mix Door (Driver Side)	Air Mix Door (Passenger Side)
				Ventilator Door	Foot Door	Defroster Door
AUTO Switch				AUTO			-	-	-
MODE Switch
						(* 2 or )* 3
DEF Switch
Intake Switch* 1	REC			-	-	-
	FRE
Temperature Control Switch (Driver Side)	DUAL Switch: OFF	Full Cold 18.0° (60°F)					-
		18.5°C - 31.5°C (61°F - 89°F)						AUTO
		Full Hot 32.0°C (90°F)
Temperature Control Switch (Driver Side)	DUAL switch: ON	Full Cold 18.0°C (60°F)							-
		18.5°C - 31.5°C (61°F - 89°F)						AUTO
		Full Hot 32.0°C (90°F)
Temperature Control Switch (Passenger Side)		Full Cold 18.0°C (60°F)						-
		18.5°C - 31.5°C (61°F - 89°F)							AUTO
		Full Hot 32.0°C (90°F)
ON•OFF switch		OFF				(* 2 or )* 3			-

* 1: Air inlet status is displayed by indicator during activating automatic control

* 2: Default setting

* 3: It can be changed using "BLOW SET" in "WORK SUPPORT" mode of CONSULT. Refer to FOOT POSITION SETTING TRIMMER .
