Exploded View

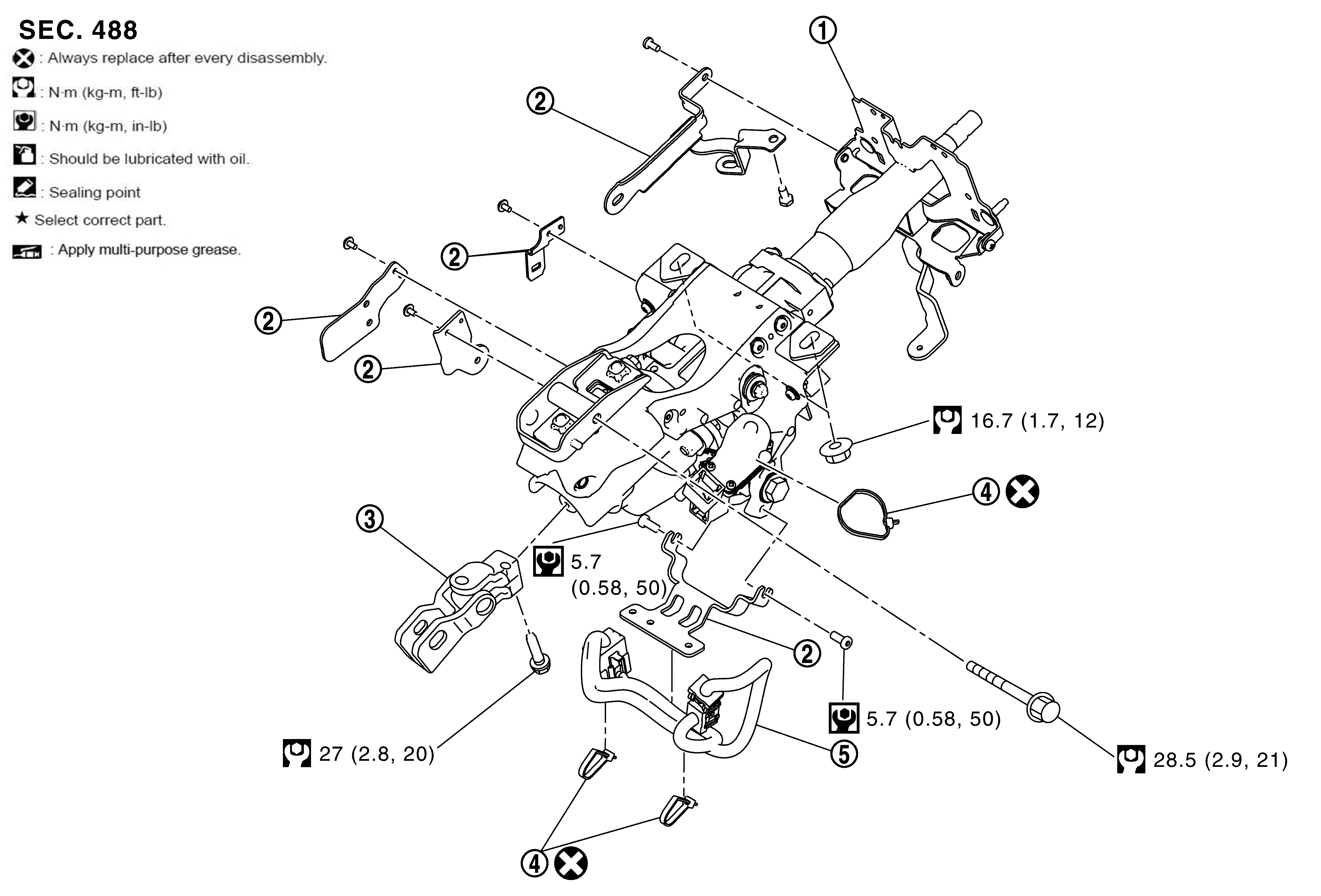

Fig 1: Steering Column W/Electric Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering column assembly	bracket	Upper joint
	Band	Harness
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
