Circuit Diagram

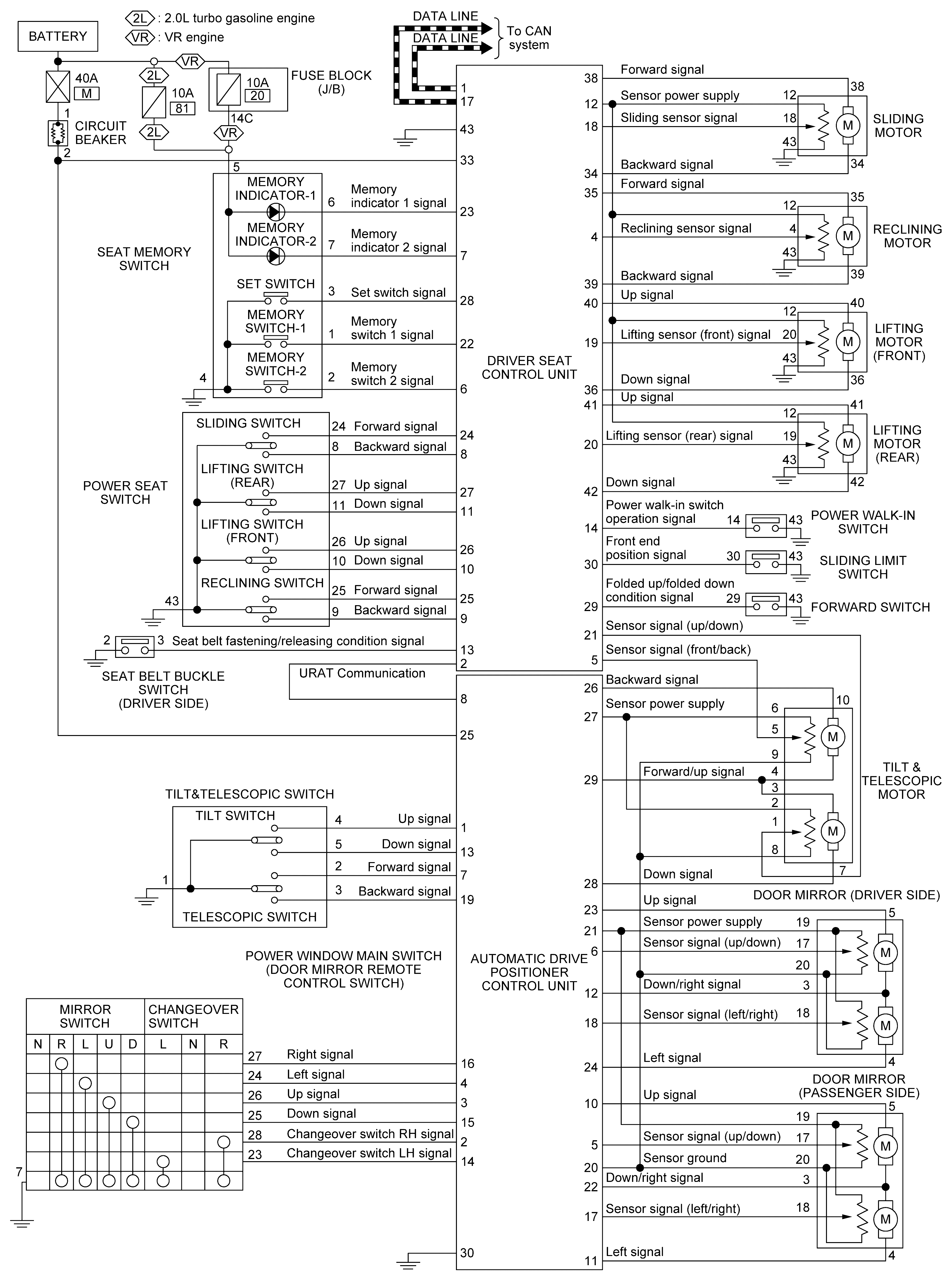

GNSJMJIB2221GB-221

Courtesy of NISSAN NORTH AMERICA, INC.

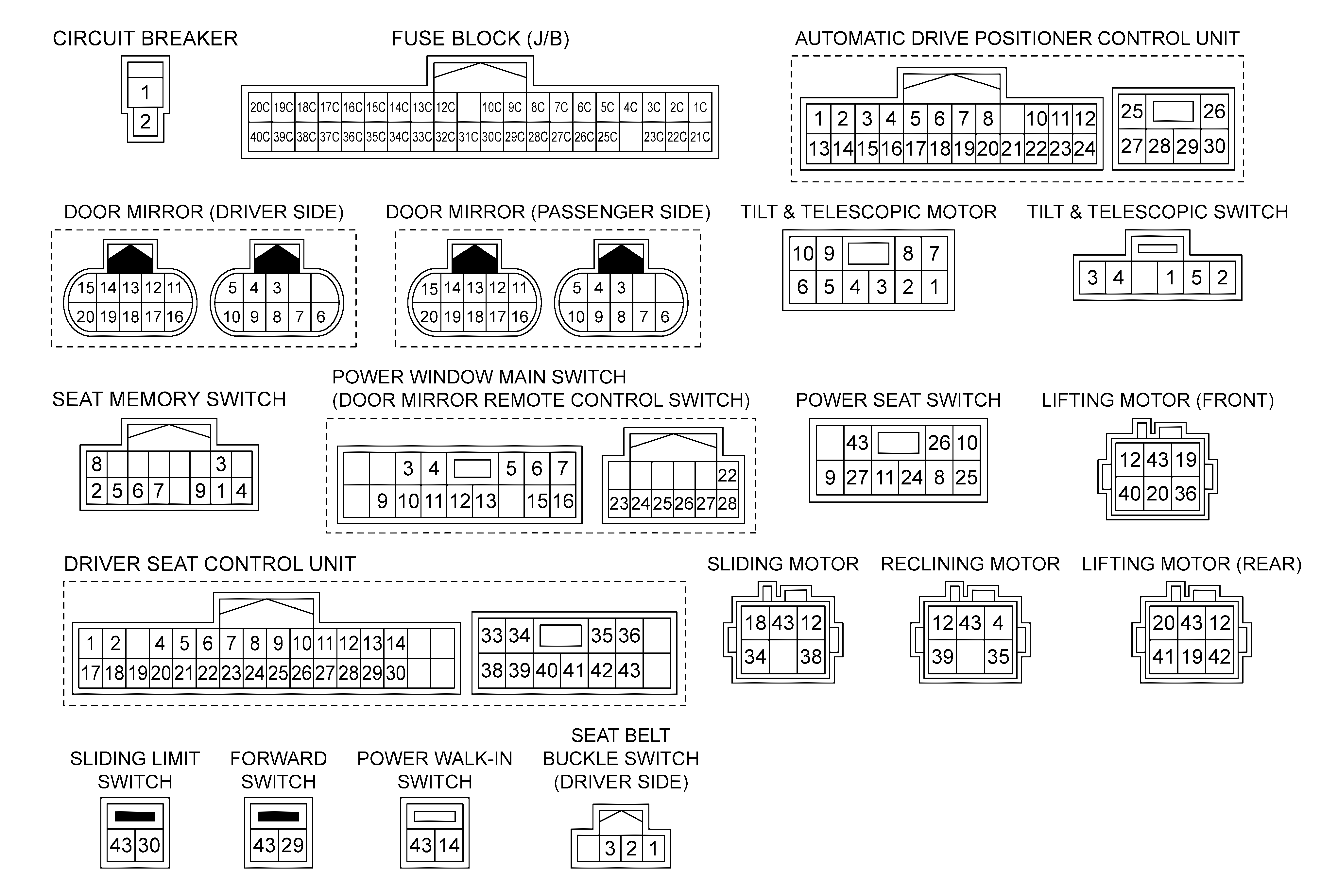

GNSJMJIB2222GB-222

Courtesy of NISSAN NORTH AMERICA, INC.
