Left Side

WARNING: This page is about a different variant/trim than selected.

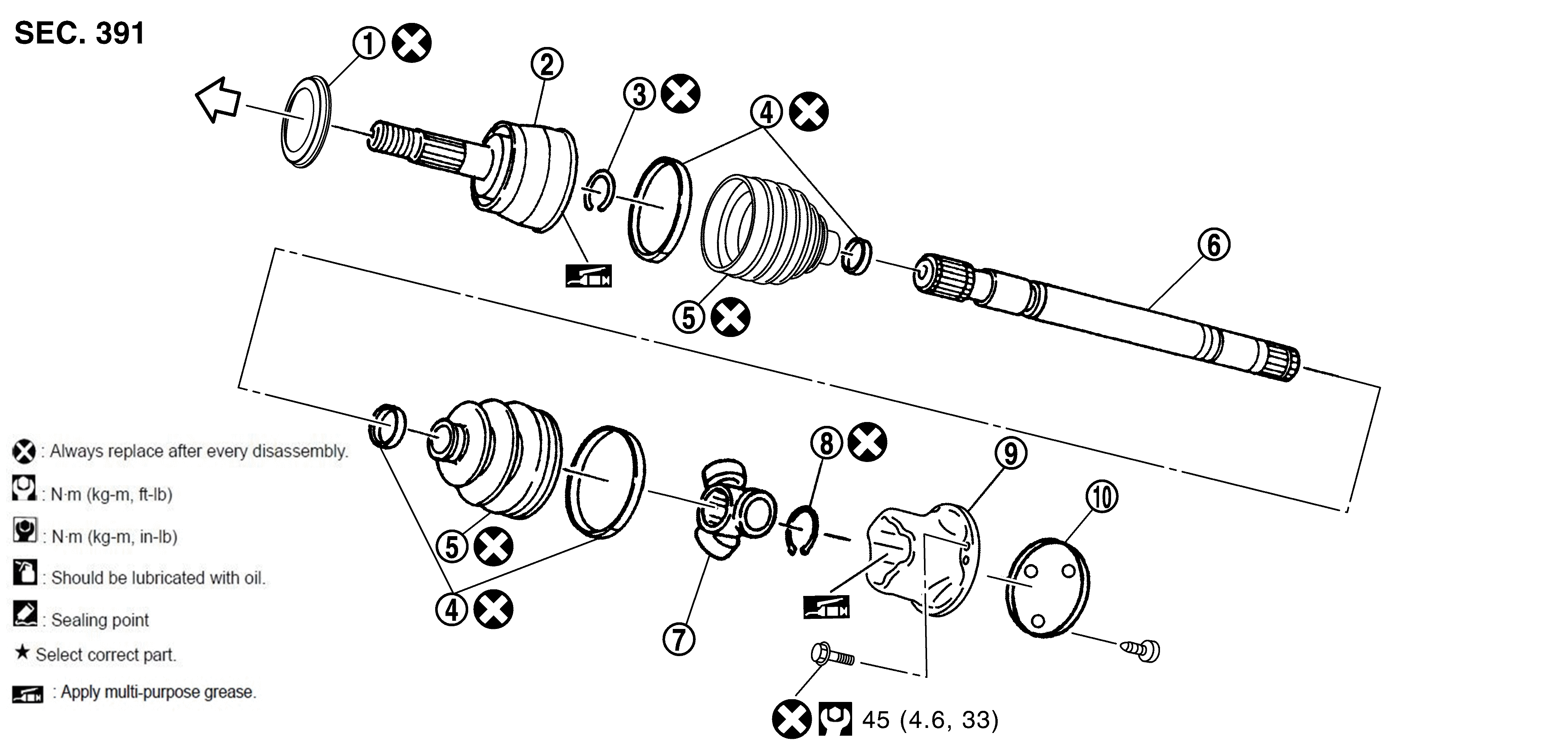

Fig 1: Front Drive Shaft Boot LH With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Dust shield	Joint sub-assembly	Circular clip
Boot band	Boot	Shaft
Spider assembly	Snap ring	Housing
Plug
: Wheel side
: NISSAN genuine grease or equivalent.
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
