Right Side

WARNING: This page is about a different variant/trim than selected.

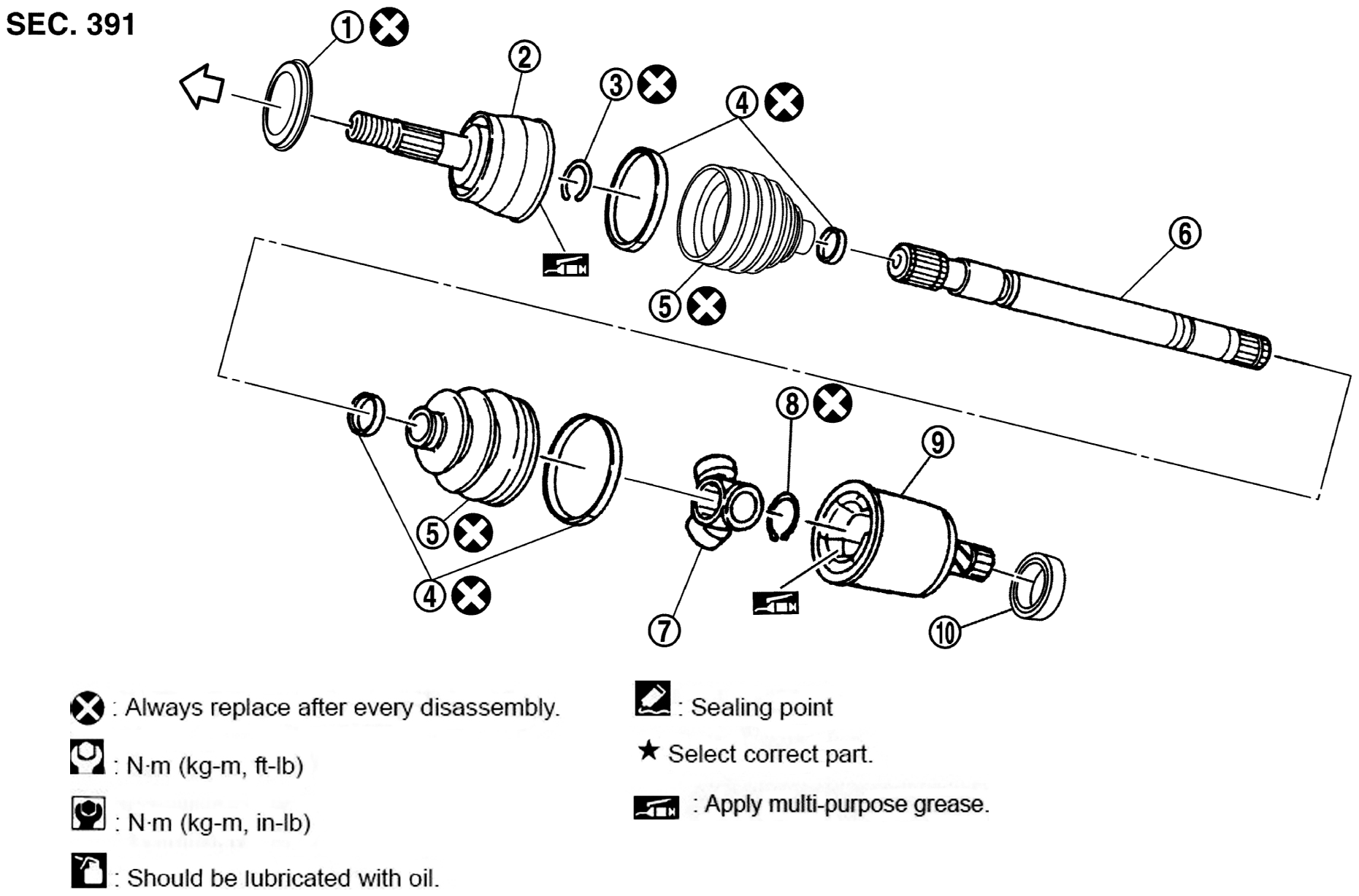

GNSJSDIA4460ZZ-460Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Dust shield WHITE-2 Joint sub-assembly WHITE-3 Circular clip
WHITE-4 Boot band WHITE-5 Boot WHITE-6 Shaft
WHITE-7 Spider assembly WHITE-8 Snap ring WHITE-9 Housing
WHITE-10 Dust shield
ARROW : Wheel side
GREASE : NISSAN genuine grease or equivalent.
BOLT : N•m (kg-m, ft-lb)
DISAS : Always replace after every disassembly.
