Exploded View

WARNING: This page is about a different variant/trim than selected.

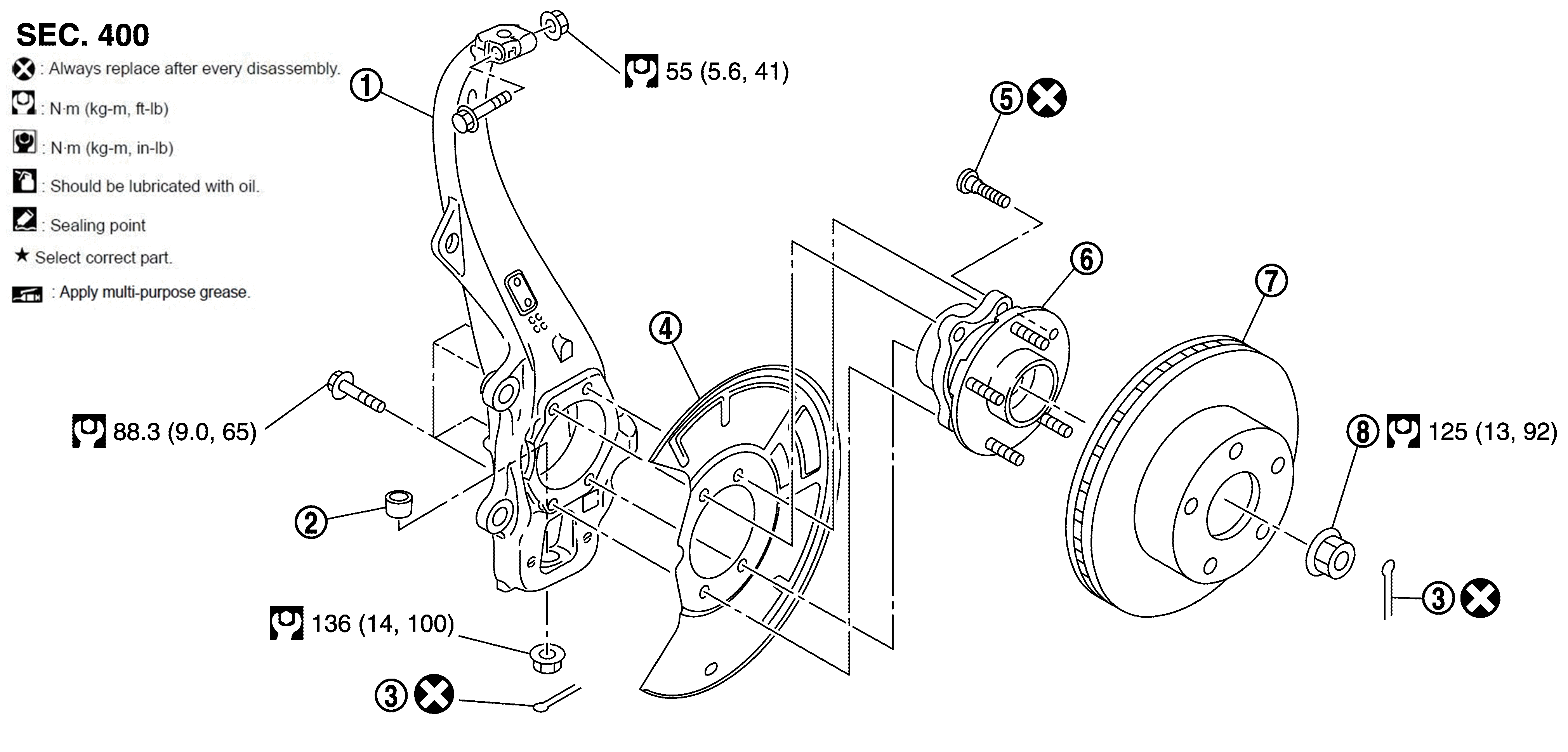

Fig 1: Front Wheel Hub And Knuckle With Torque Specifications
GNSJPDIF0309GB-309Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Steering Knuckle WHITE-2 Ball Seat WHITE-3 Cotter Pin
WHITE-4 Splash Guard WHITE-5 Hub Bolt WHITE-6 Wheel Hub And Bearing Assembly
WHITE-7 Disc Rotor WHITE-8 Wheel Hub Lock Nut
BOLT : N•m (kg-m, ft-lb)
DISAS : Always replace after every disassembly.
