Engine Control System (Introduction) (VR30DDTT)

WARNING: This page is about a different variant/trim than selected.

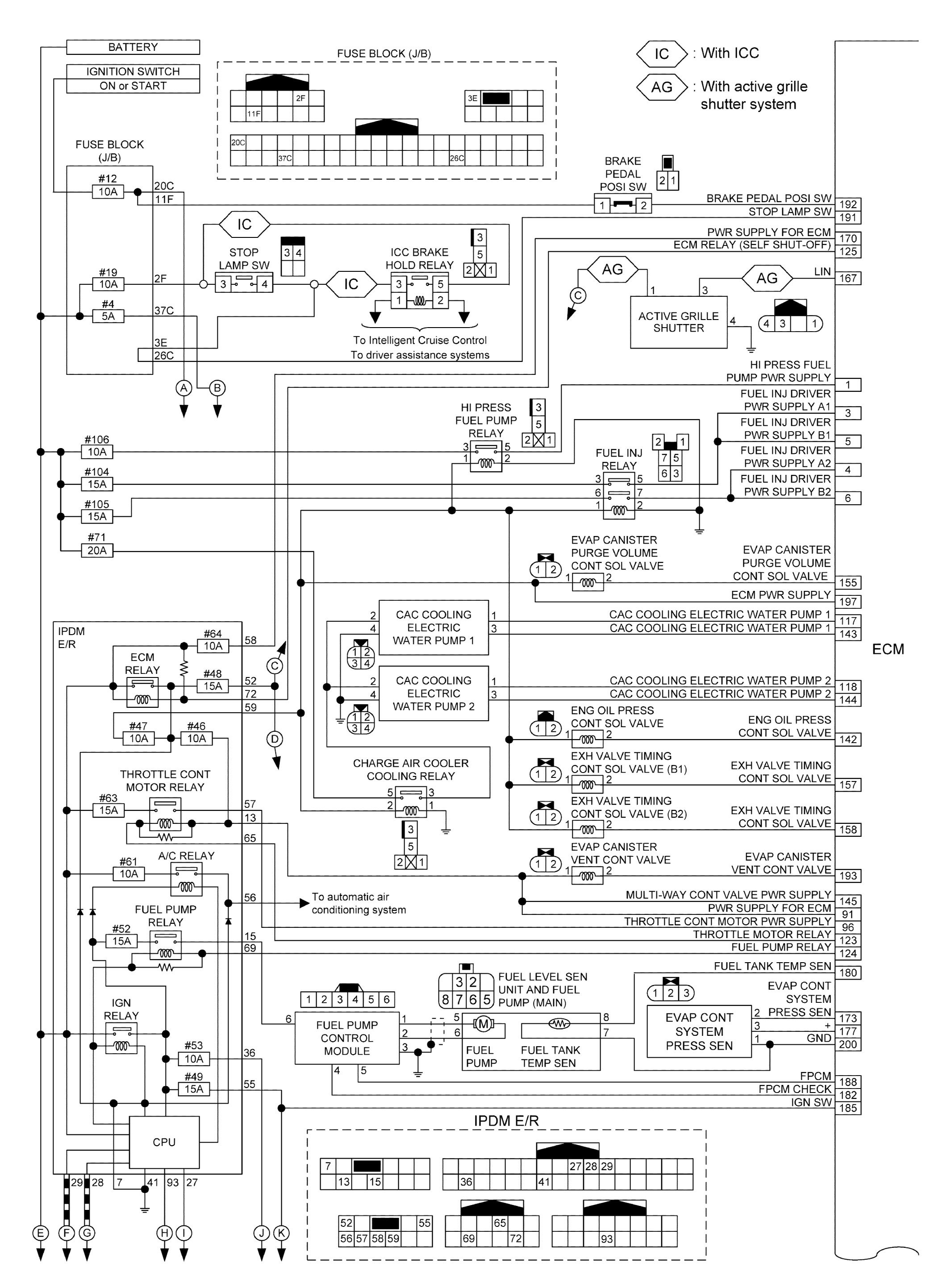

GNSJSBIB2400GB-400Courtesy of NISSAN NORTH AMERICA, INC.

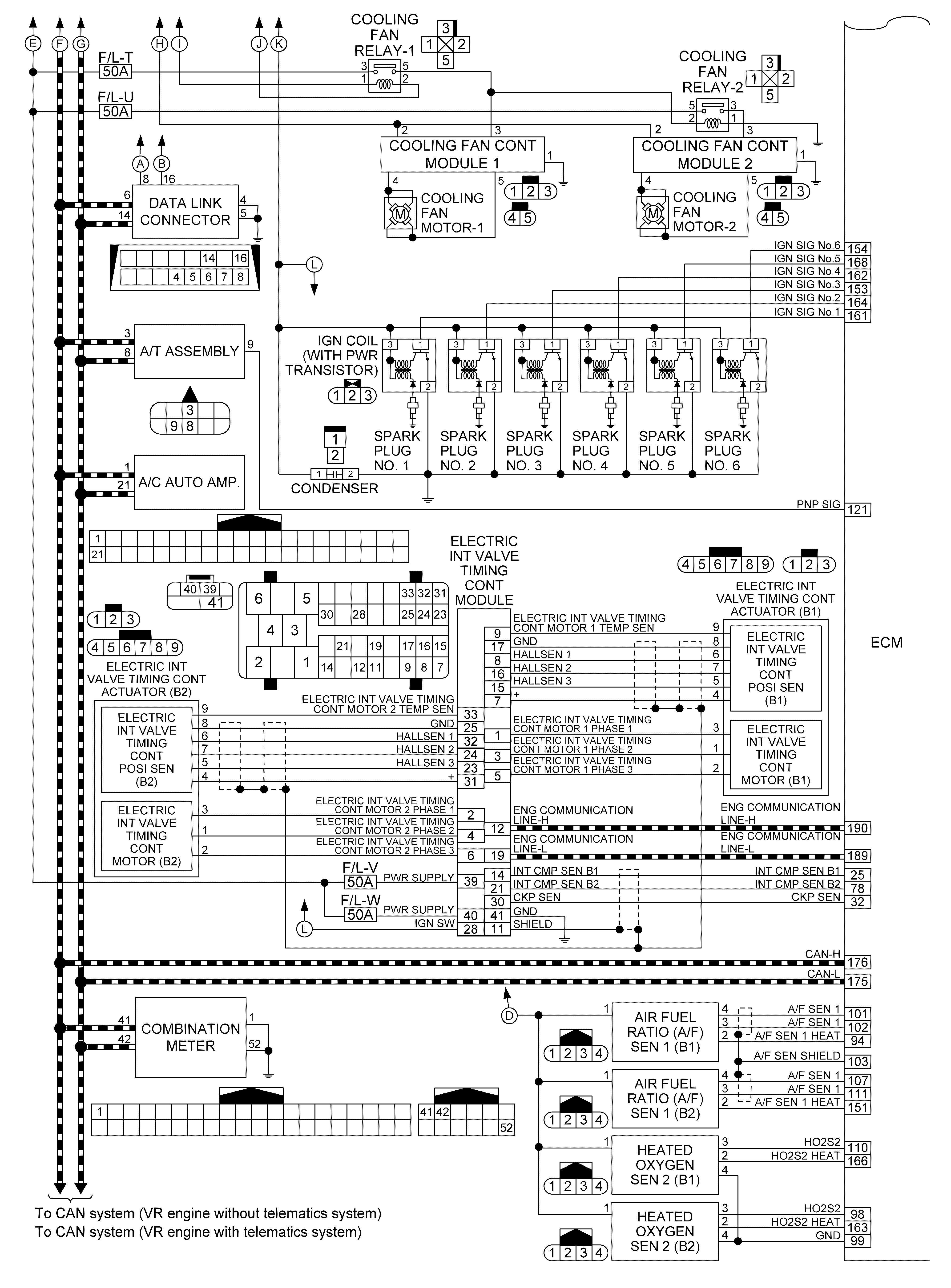

GNSJSBIB0569GB-569Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0570GB-570Courtesy of NISSAN NORTH AMERICA, INC.

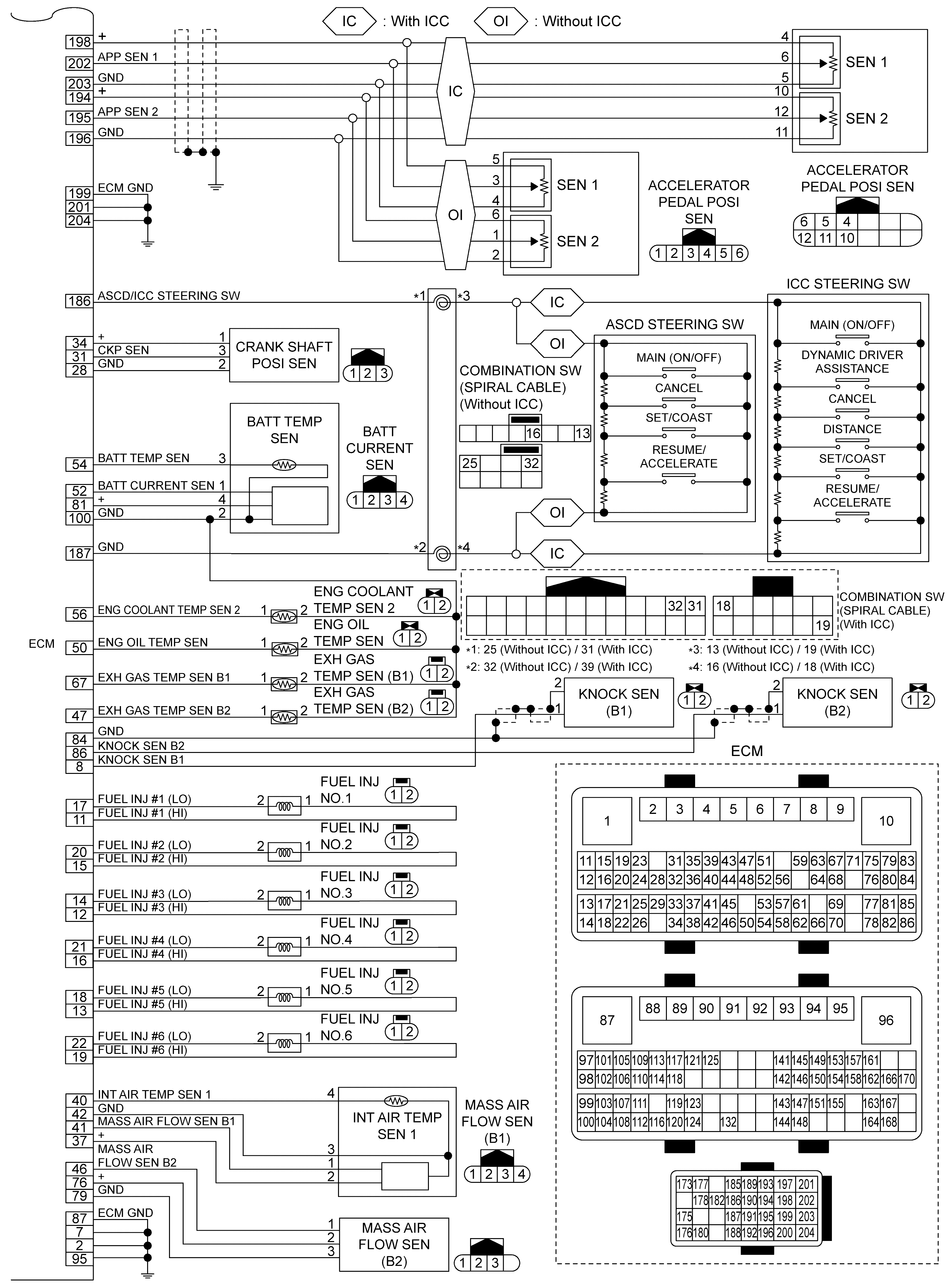

GNSJSBIB0571GB-571Courtesy of NISSAN NORTH AMERICA, INC.
