Circuit Diagram (Turbo Low Pressure Model)

WARNING: This page is about a different variant/trim than selected.

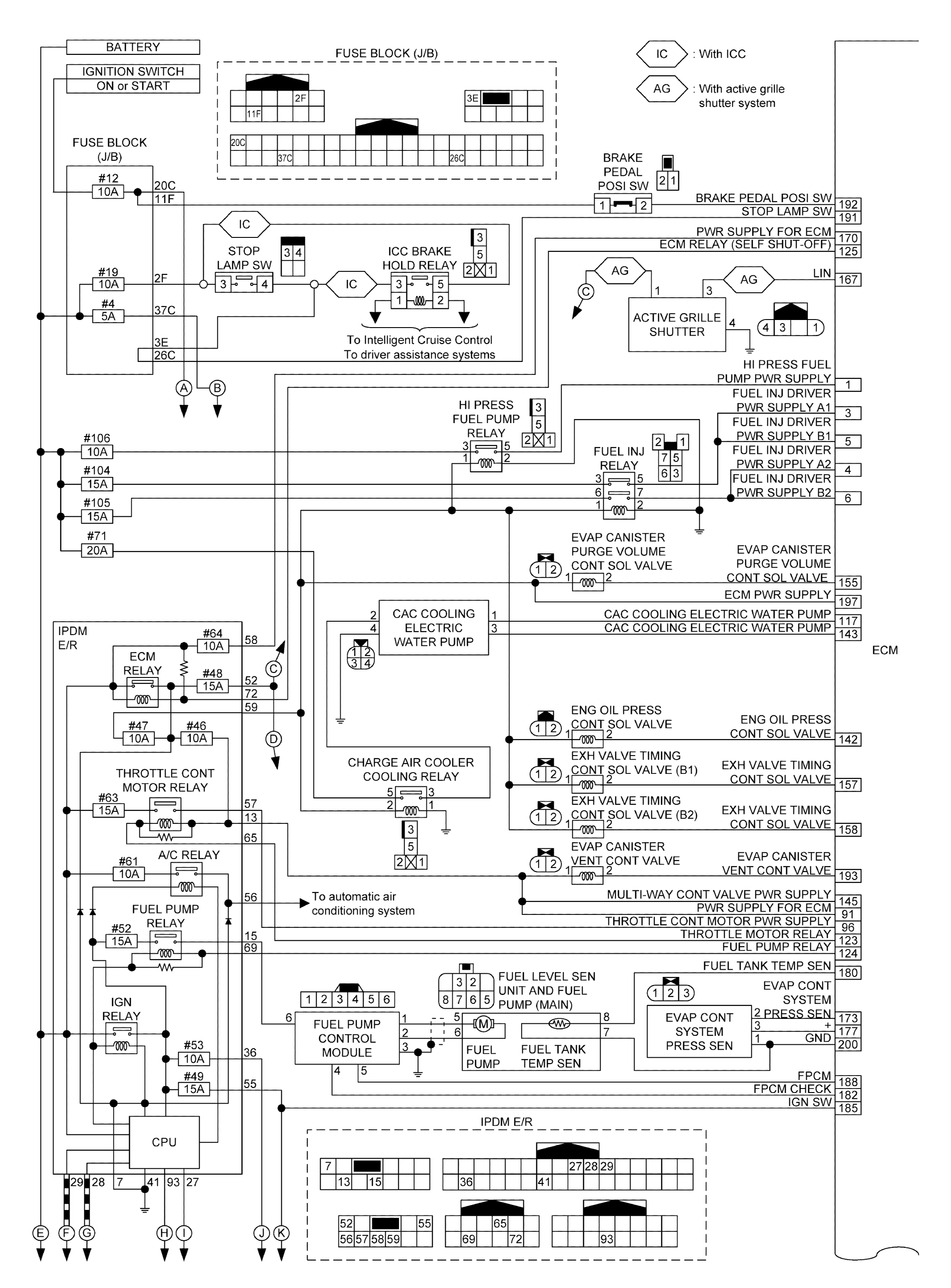

GNSJSBIB2404GB-404Courtesy of NISSAN NORTH AMERICA, INC.

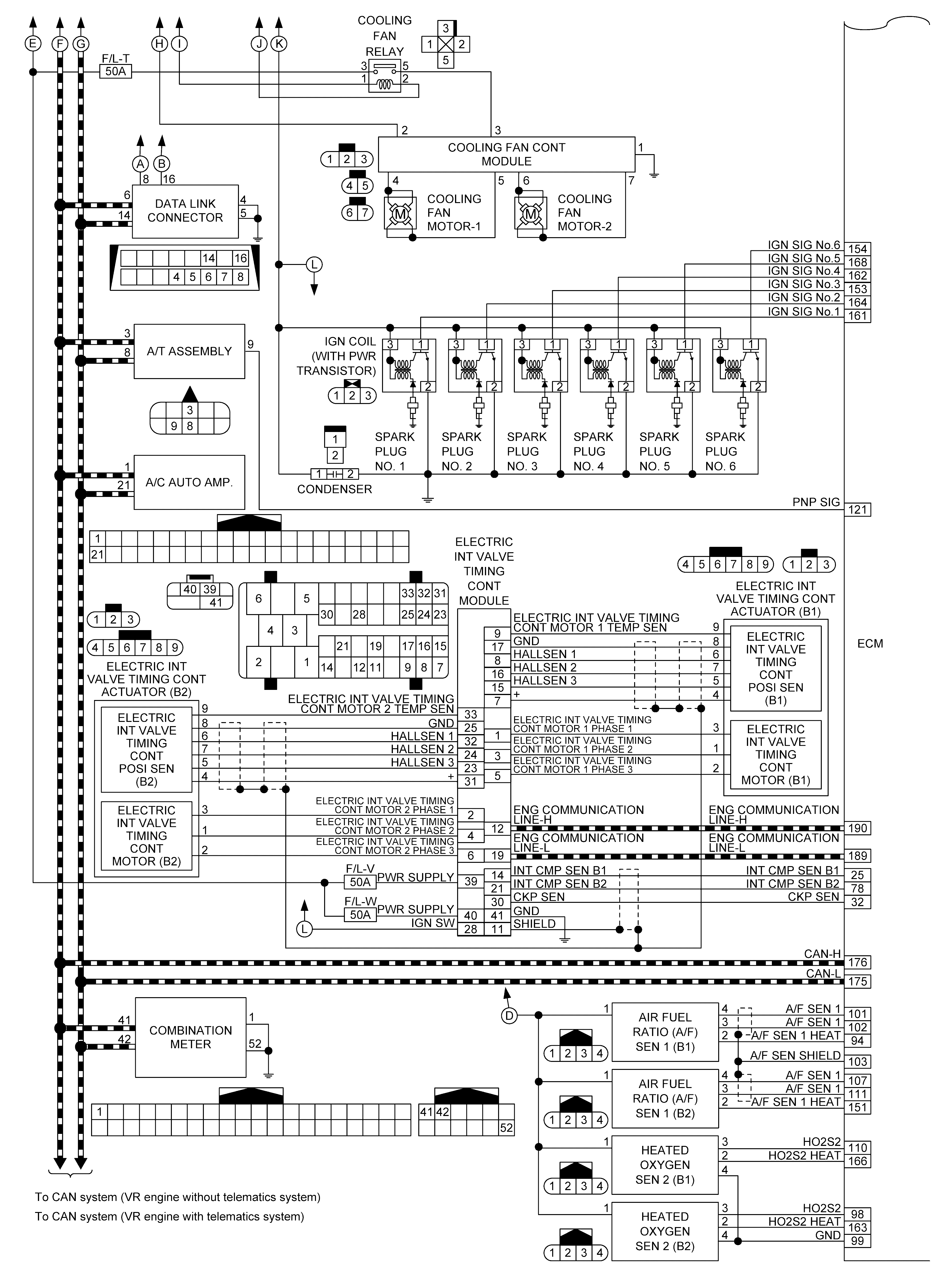

GNSJSBIB0603GB-603Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0604GB-604Courtesy of NISSAN NORTH AMERICA, INC.

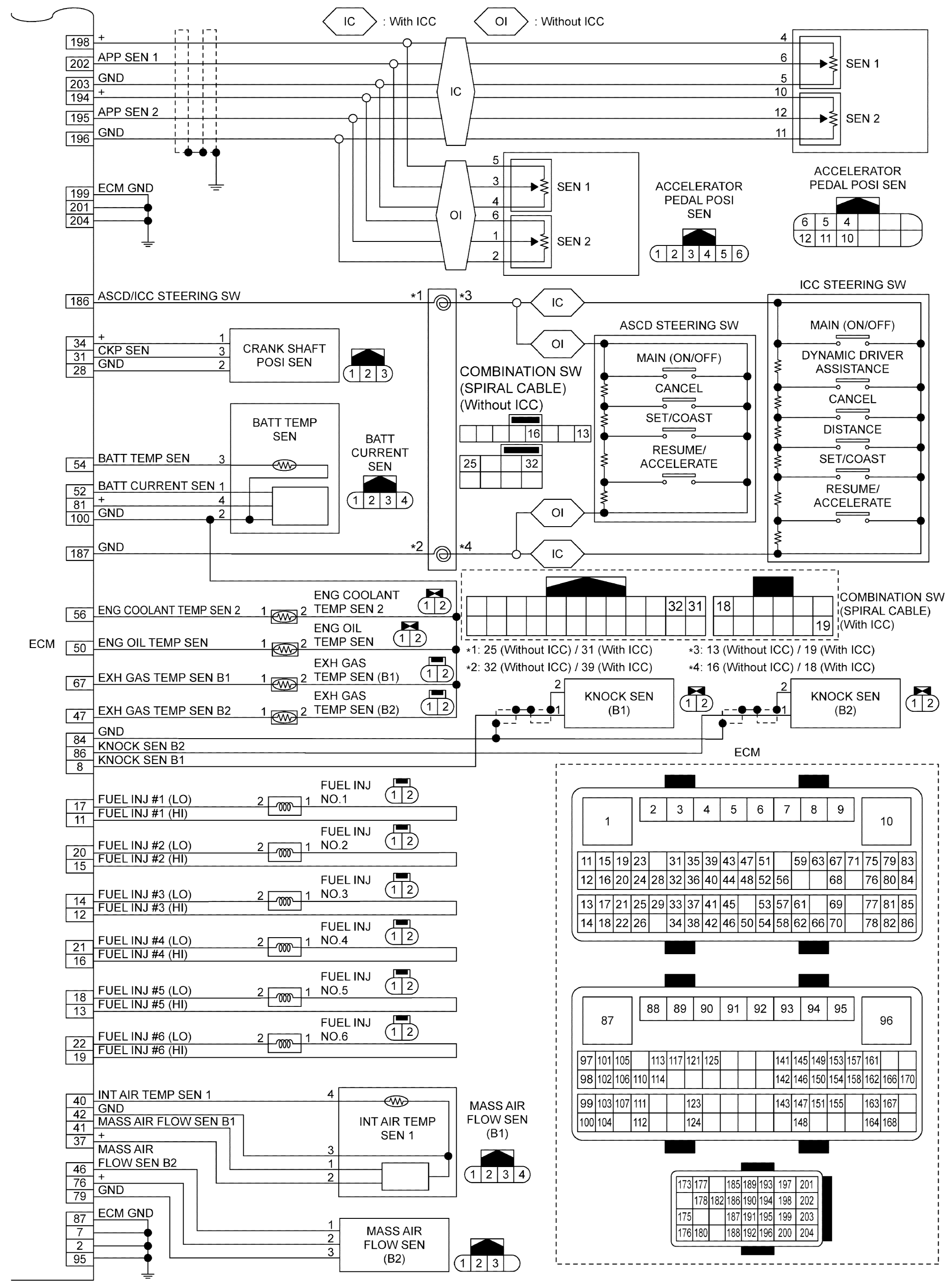

GNSJSBIB0605GB-605Courtesy of NISSAN NORTH AMERICA, INC.
