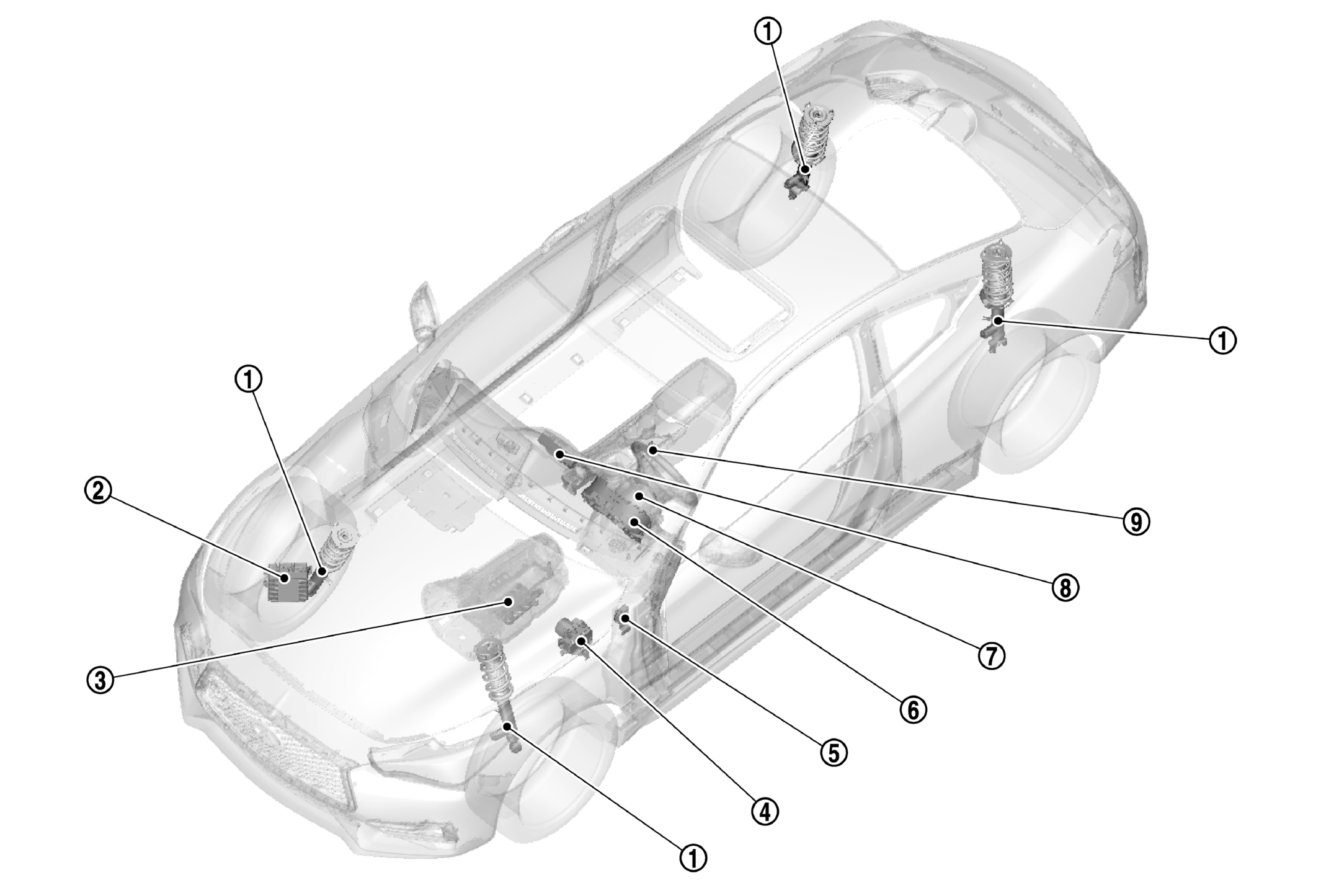

Component Location
| No. | Component parts | Function |
|---|---|---|
| Dynamic digital suspension | Refer to DYNAMIC DIGITAL SUSPENSION . | |
| ECM | Transmits each engine status to chassis control module via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
|
| TCM | Transmits each transmission status to chassis control module via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
|
| ABS actuator and electric unit (control unit) | Transmits braking and wheel speed status to chassis control module via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Chassis control module | Mainly controls the digital motion control. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Combination meter | Indicates the "Chassis Control" status on information display Refer to COMPONENT LOCATION for detailed installation location. |
|
| Steering angle sensor | Transmits steering angle status to chassis control module via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Display control unit | Transmits the setting state of "Infiniti InTuition" to chassis control module via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Drive mode select switch | Inputs the drive mode signal to chassis control module unit. Refer to COMPONENT LOCATION for detailed installation location. |
