Line Pressure Solenoid Valve

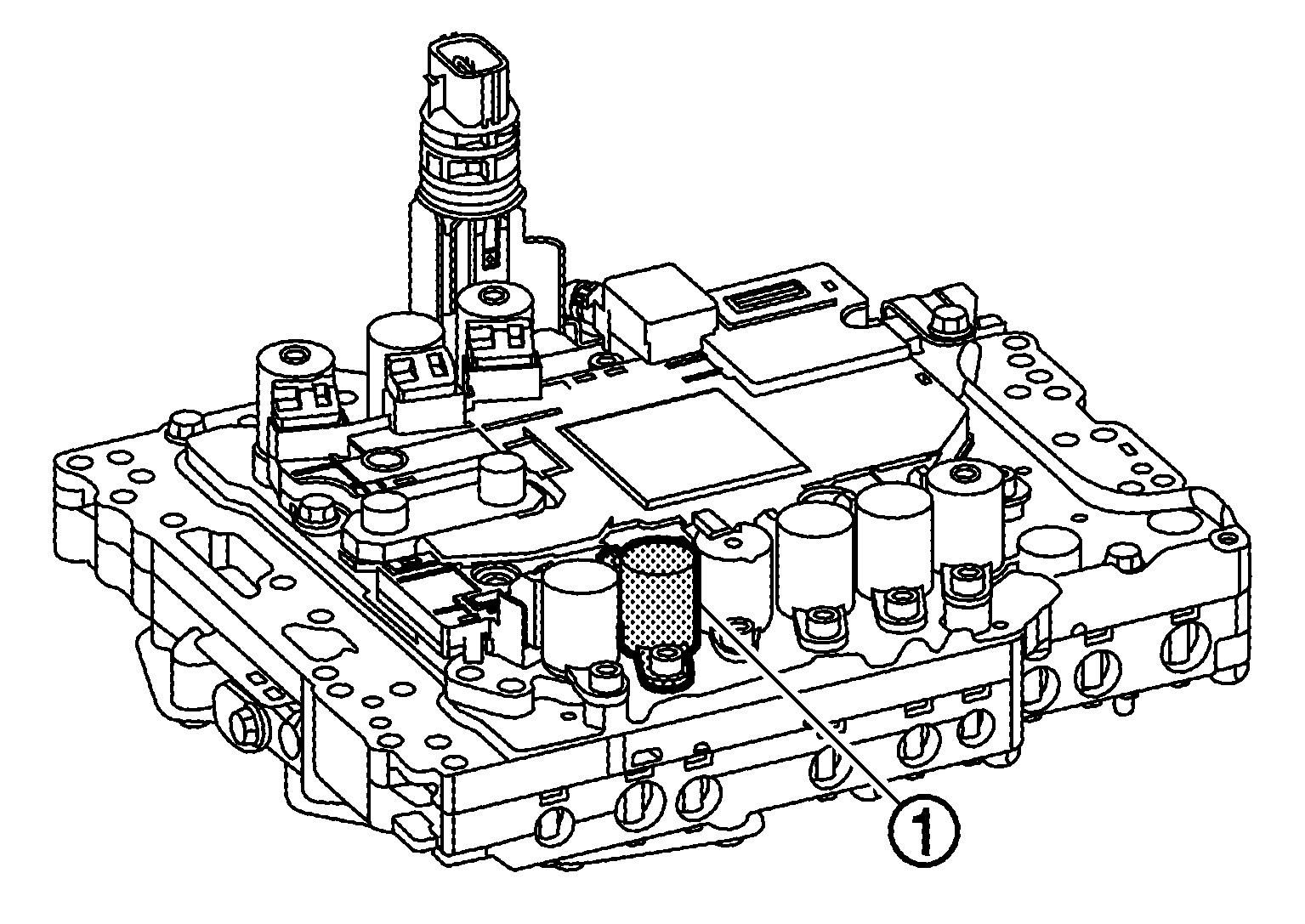

The Line Pressure Solenoid Valve is installed to Control Valve Assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
The Line Pressure Solenoid Valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal transmitted from the TCM.

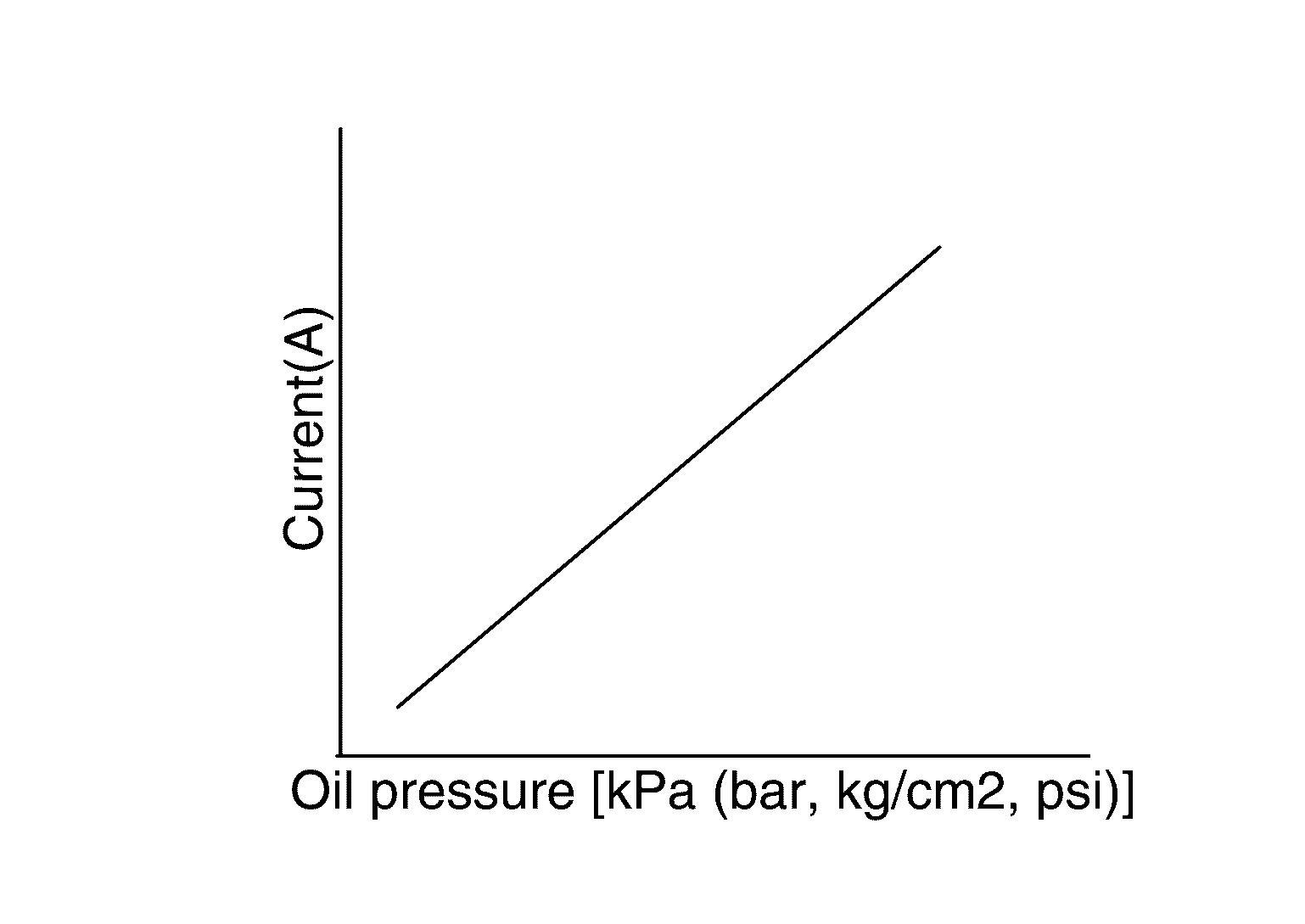

The Line Pressure Solenoid Valve utilizes a linear solenoid valve [N/L (normal low) type].

Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
- The principle of the linear solenoid valve utilizes the fact that the force pressing on the valve spool installed inside the coil increases nearly in proportion to the current. This allows it to produce a fluid pressure that is proportional to this pressing force.
- The N/L (normal low) type does not produce hydraulic control when the coil is not energized.
