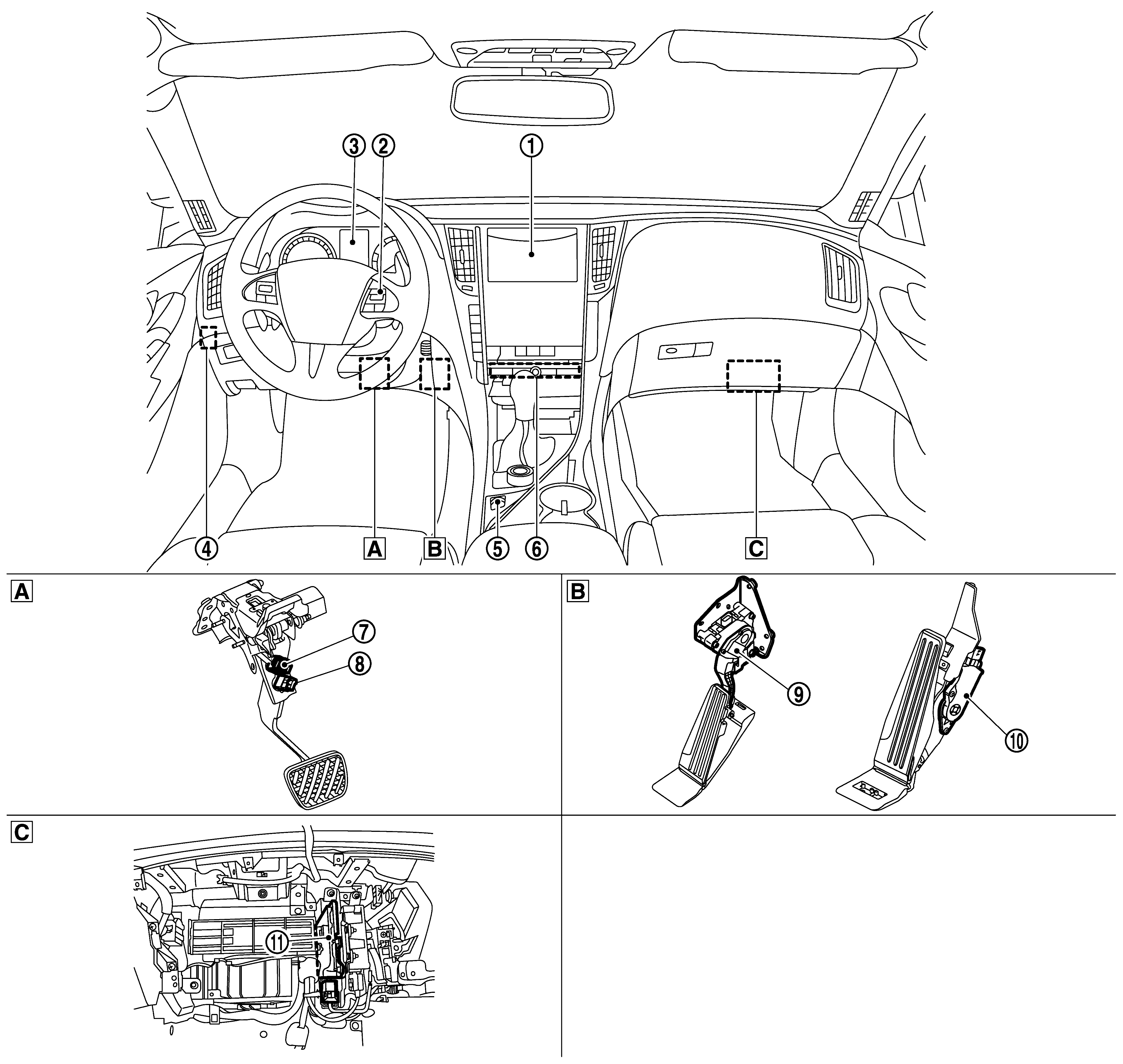

Interior Compartment
| Brake Pedal | Accelerator Pedal | Glove Box (Back Side) |
| No. | Component | Description |
|---|---|---|
| Display Control Unit | Displays a drive mode status on the display screen, according to signals received from ECM. For details of installation position, refer to COMPONENT LOCATION . |
|
| ASCD Steering Switch | ASCD STEERING SWITCH | |
| ICC Steering Switch | ICC STEERING SWITCH | |
| Combination Meter | Performs the ON/OFF control of the indicator lamp, warning lamp, and the information display, according to signals received from ECM via CAN communication. | |
| Chassis Control Module | Chassis Control Module send the drive mode select switch signal to the TCM via the CAN communication line. For details of installation position, refer to COMPONENT LOCATION . |
|
| Drive Mode Select Switch | DRIVE MODE SELECT SWITCH | |
| A/C Auto Amp. | Controls the air-conditioning system (e.g. compressor, blower fan motor), according to a command from ECM. | |
| Stop Lamp Switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| Brake Pedal Position Switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| Accelerator Pedal Position Switch (With ECO Pedal) | ACCELERATOR PEDAL POSITION SENSOR | |
| Accelerator Pedal Position Switch (Without ECO Pedal) | ACCELERATOR PEDAL POSITION SENSOR | |
| Steering Force Control Module (With Direct Adaptive Steering) | For details of installation position, refer to COMPONENT LOCATION . |
