Engine Control System (Introduction) (VR30DDTT)
| Around The Battery | Around The Radiator | Fuse And Fusible Link Block | |||
| Right Side Of Main Muffler | Rear Seat (Lower Right) |

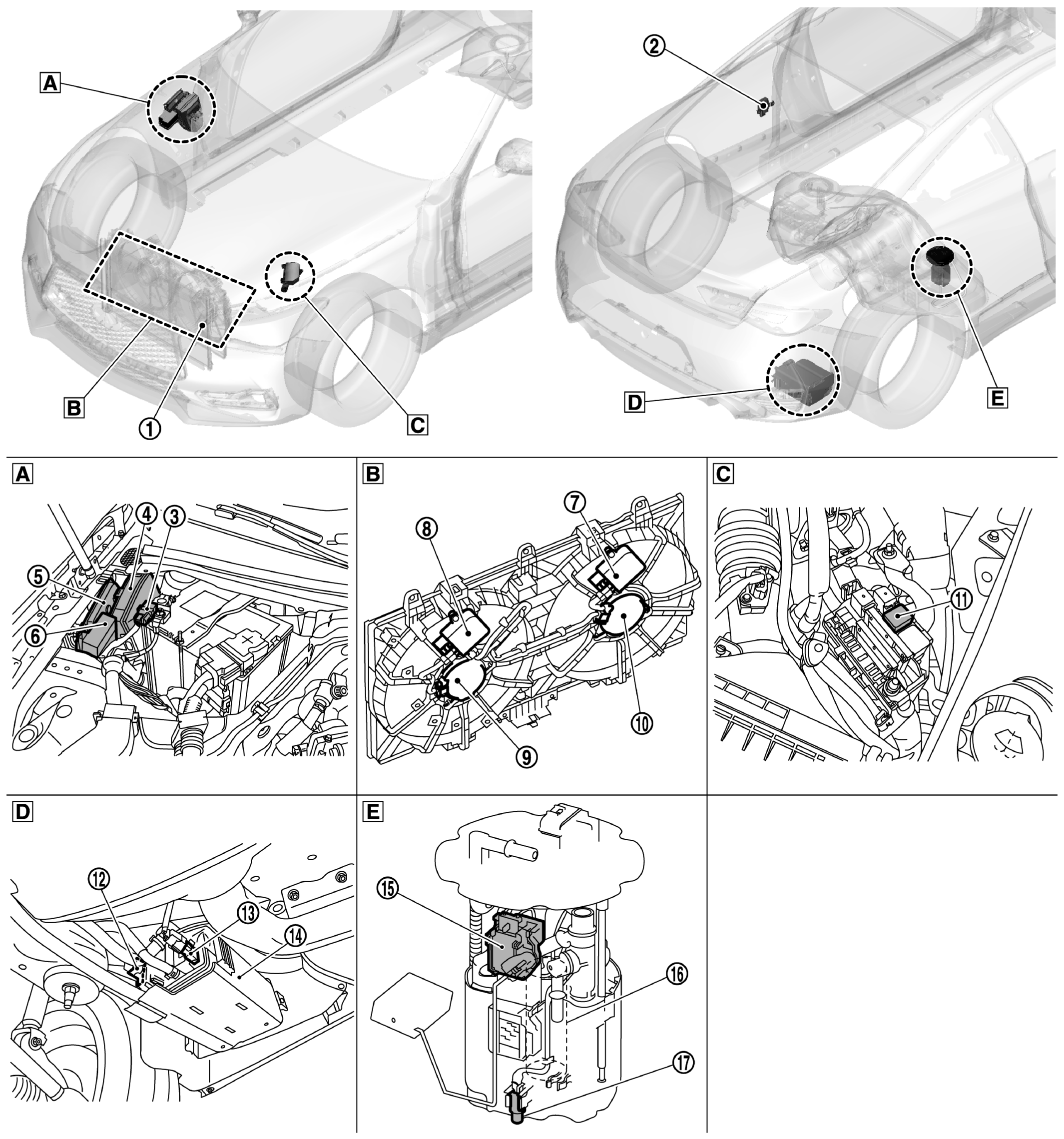

| No. | Component | Function |
|---|---|---|
| Refrigerant Pressure Sensor | REFRIGERANT PRESSURE SENSOR | |
| Fuel Pump Control Module | FUEL PUMP CONTROL MODULE | |
| Battery Current Sensor (With Battery Temperature Sensor) | BATTERY CURRENT SENSOR (WITH BATTERY TEMPERATURE SENSOR) | |
| IPDM E/R | IPDM E/R controls the internal relays and the actuators. When CAN Communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
| Electric Intake Valve Timing Control Module | ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR | |
| Cooling Fan Relay 2* | COOLING FAN | |
| Cooling Fan Control Module 2* | COOLING FAN | |
| Cooling Fan Control Module 1 | COOLING FAN | |
| Cooling Fan Motor - 1 | COOLING FAN | |
| Cooling Fan Motor - 2 | COOLING FAN | |
| Cooling Fan Relay 1 | COOLING FAN | |
| EVAP Canister Vent Control Valve | EVAP CANISTER VENT CONTROL VALVE | |
| EVAP Control System Pressure Sensor | EVAP CONTROL SYSTEM PRESSURE SENSOR | |
| EVAP Canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. | |
| Fuel Level Sensor | FUEL LEVEL SENSOR | |
| Low Pressure Fuel Pump | LOW PRESSURE FUEL PUMP | |
| Fuel Tank Temperature Sensor | FUEL TANK TEMPERATURE SENSOR |
*: For turbo high pressure model
