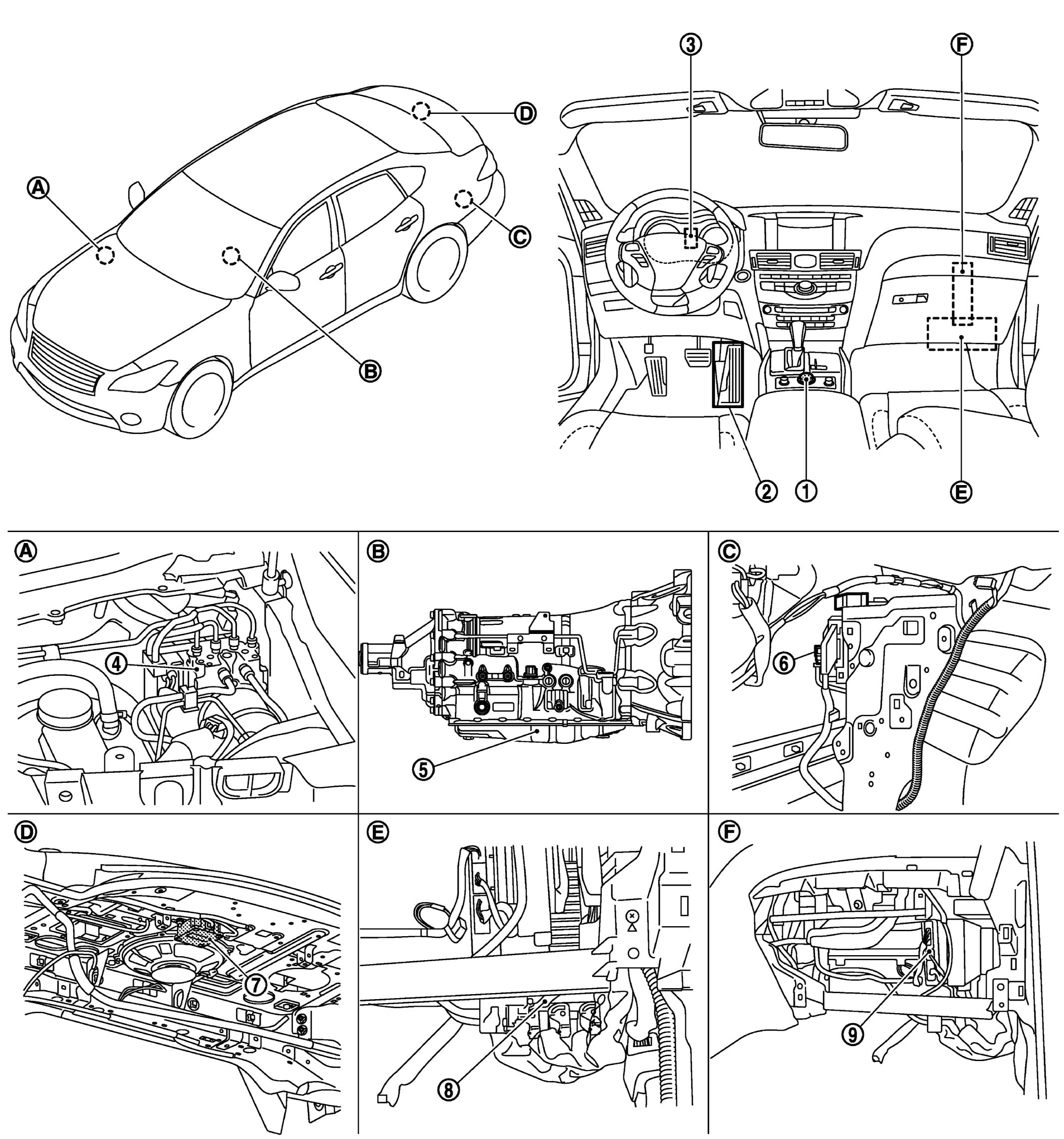

Component Location
| 1. | Drive mode select switch | 2. | Accelerator pedal actuator | 3. | Combination meter |
| 4. | ABS actuator and electric unit | 5. | TCM | 6. | 4WAS main control unit |
| 7. | ADAS control unit | 8. | ECM | 9. | A/C auto amp. |
| A. | Inside of brake master cylinder cover | B. | Transmission assembly | C. | Back of rear wheel house finisher (left) |
| D. | Trunk side rear parcel shelf | E. | Lower left of glove box | F. | A view with instrument lower panel (left) removed |
