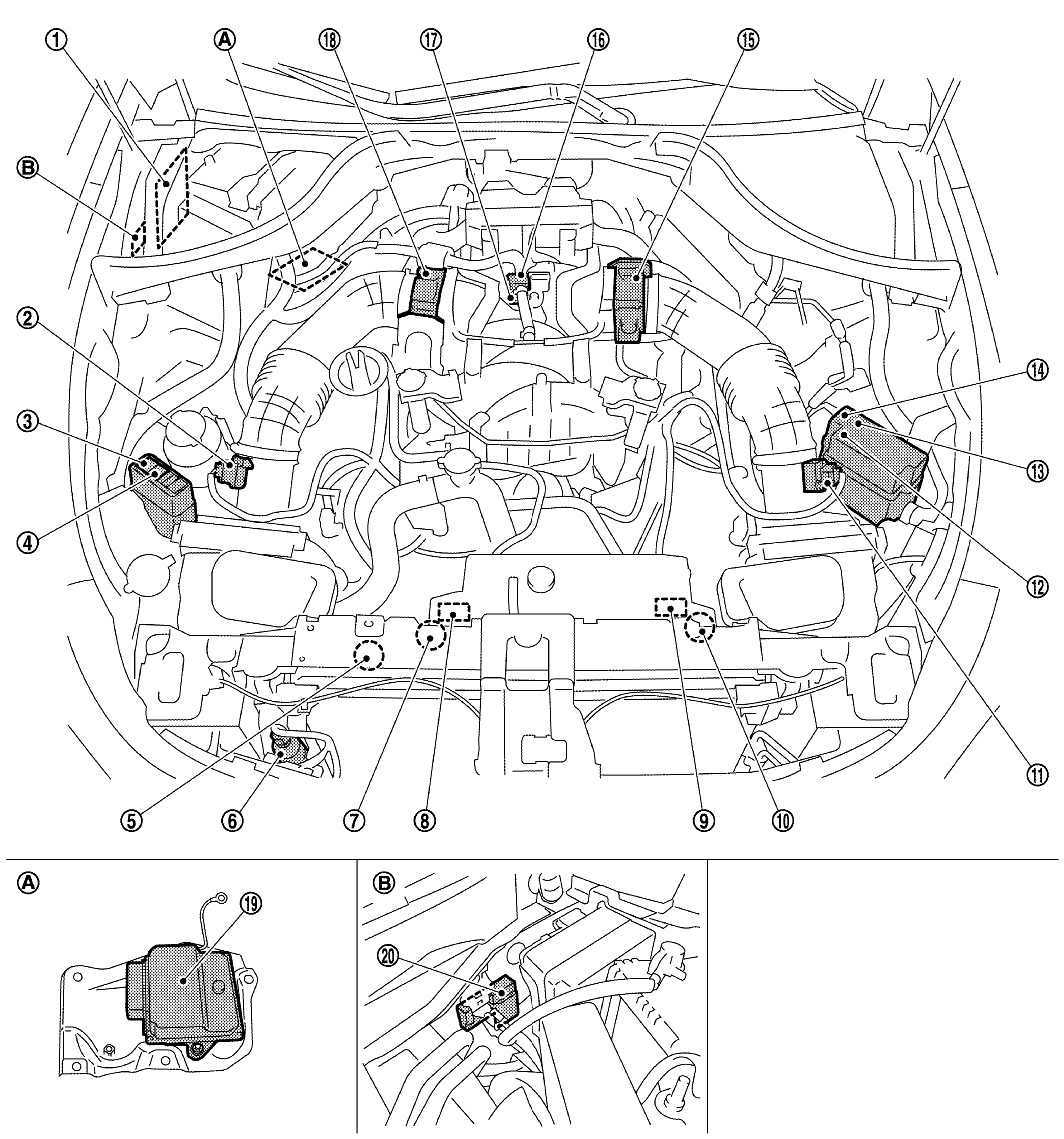

Engine Room Compartment
| 1. | IPDM E/R COMPONENT LOCATION |
2. | Mass air flow sensor | 3. | Cooling fan relay 2 |
| 4. | Injector relay 2 | 5. | Power steering pressure sensor EXPLODED VIEW WITH TORQUE SPECIFICATIONS (2WD models) EXPLODED VIEW WITH TORQUE SPECIFICATIONS (AWD models) |
6. | Refrigerant pressure sensor |
| 7. | Cooling fan motor 2 | 8. | Cooling fan control module 2 | 9. | Cooling fan control module 1 |
| 10. | Cooling fan motor 1 | 11. | Mass air flow sensor (with intake air temperature sensor) (bank 1) |
12. | Injector relay 1 |
| 13. | VVEL actuator motor relay | 14. | Cooling fan relay 1 | 15. | Electric throttle control actuator (bank 1) |
| 16. | EVAP canister purge volume control solenoid valve | 17. | Manifold absolute pressure (MAP) sensor | 18. | Electric throttle control actuator (bank 2) |
| 19. | VVEL control module | 20. | Battery current sensor (with battery temperature sensor) |
||
| A. | Under the battery tray (View with upside-down) |
B. | Body side in battery case |
