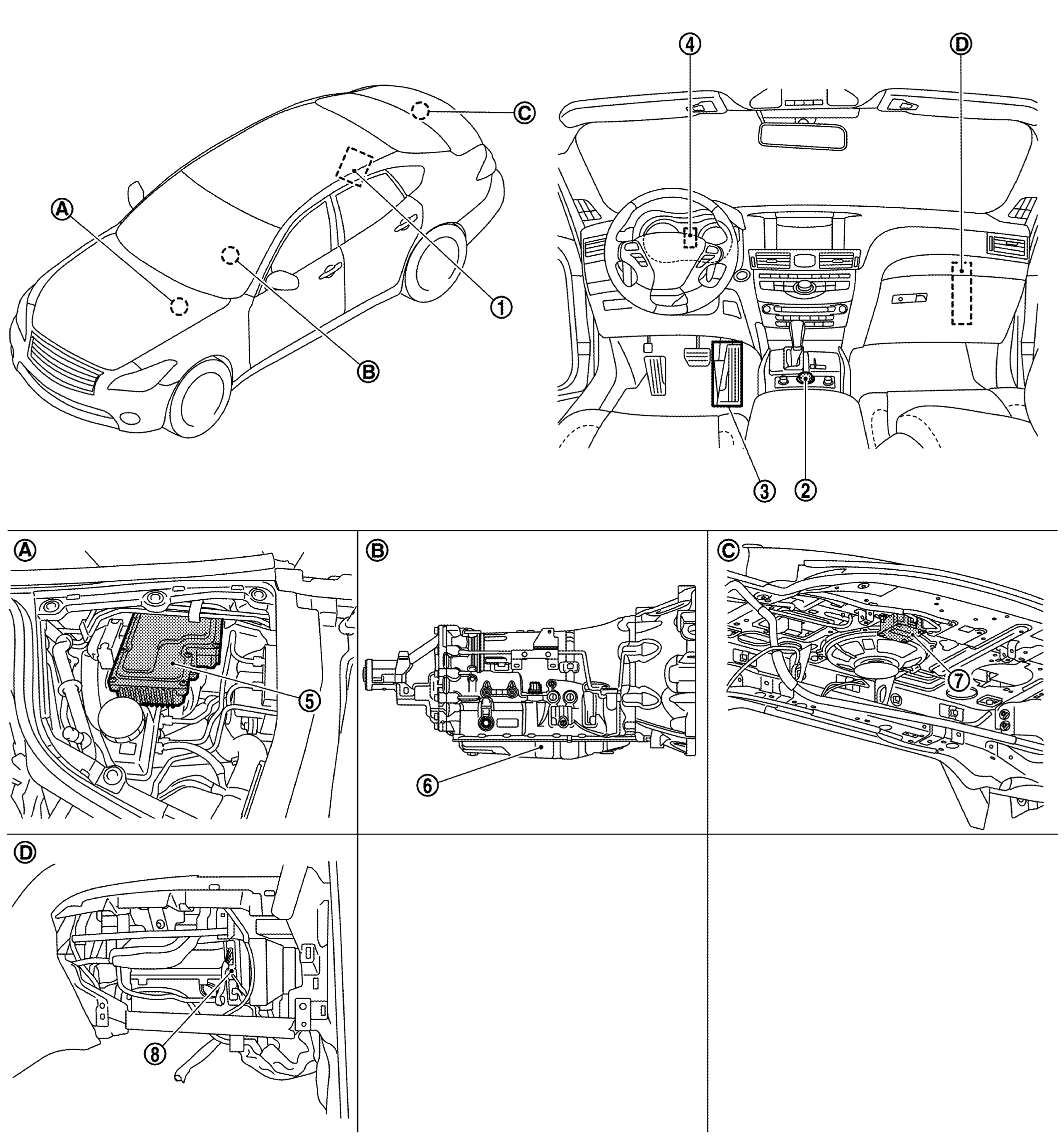

| 1 |
HPCM |
Receives a mode signal from TCM and controls throttle angle characteristics and torque. |
| 2 |
Drive mode select switch |
Outputs an ON/OFF state of STANDARD, SPORT, ECO, or SNOW mode to the A/C auto amp. |
| 3 |
Accelerator pedal actuator |
Applies feedback force to the accelerator pedal, based on an accelerator pedal feedback force control signal received from the ADAS control unit. |
| 4 |
Combination meter |
Displays a mode state on the vehicle information display, based on the mode state received from the A/C auto amp. |
| 5 |
Electrically-driven intelligent brake unit |
Activates the ABS actuator, according to an active trace control function control signal received from the ADAS control unit. |
| 6 |
TCM |
- Selects a shift pattern, based on a mode state received from the A/C auto amp.
- Transmits a mode state received from the A/C auto amp. to HPCM.
|
| 7 |
ADAS control unit |
- Controls the active trace control function, based on a mode state received from the A/C auto amp.
- Controls accelerator pedal feedback force of the accelerator pedal actuator, based on a ECO pedal reaction force control signal received from HPCM.
|
| 8 |
A/C auto amp. |
Receives an ON/OFF state of each mode from the drive mode select switch and transmits the switch signal to TCM, combination meter, and ADAS control unit via CAN communications. |
