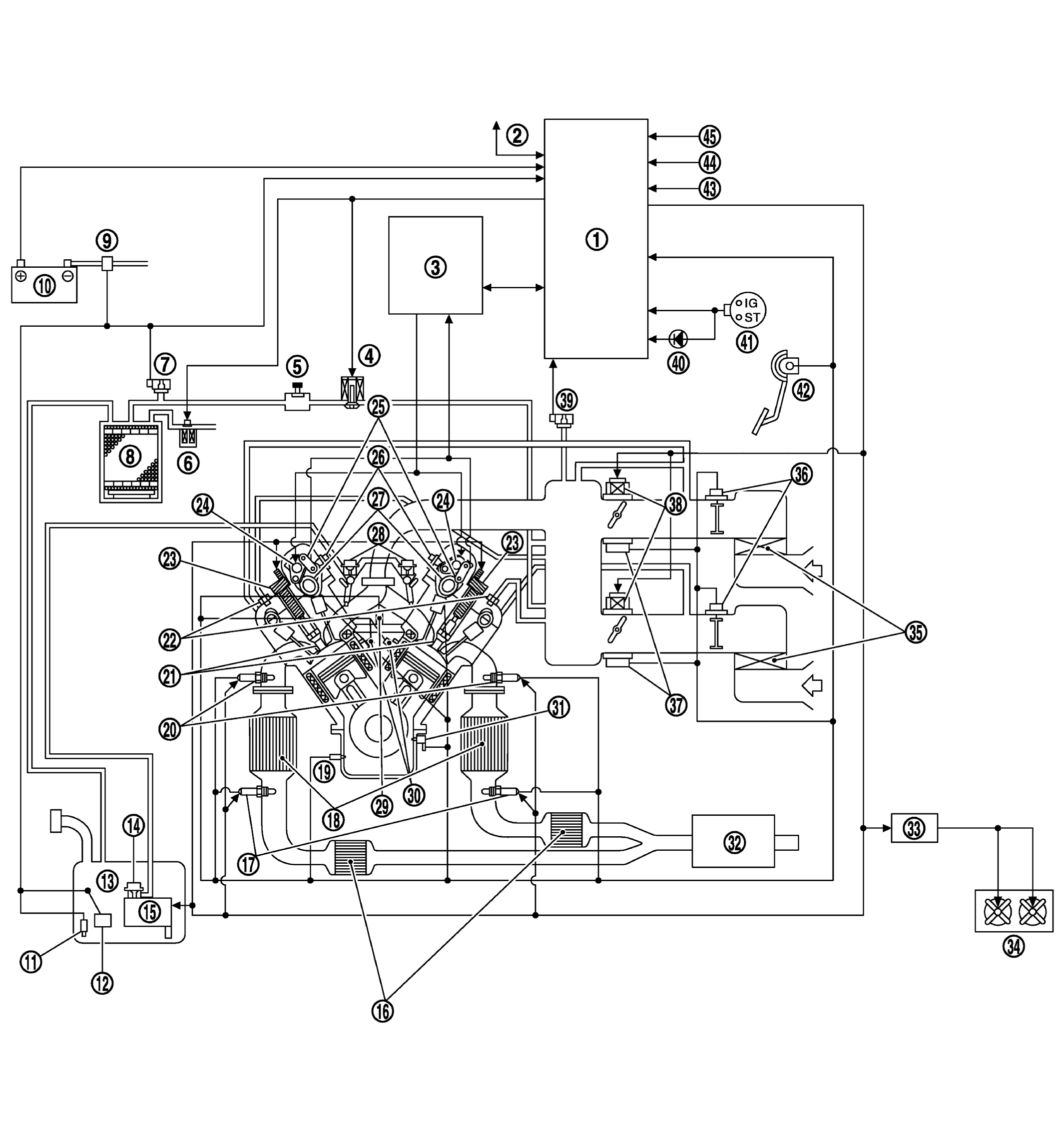

| 1. |
ECM |
2. |
Can communication |
3. |
VVEL control module |
| 4. |
EVAP canister purge volume control solenoid valve |
5. |
EVAP service port |
6. |
EVAP canister vent control valve |
| 7. |
EVAP control system pressure sensor |
8. |
EVAP canister |
9. |
Battery current sensor (with Battery temperature sensor) |
| 10. |
Battery |
11. |
Fuel tank temperature sensor |
12. |
Fuel level sensor |
| 13. |
Fuel tank |
14. |
Fuel pressure regulator |
15. |
Fuel pump |
| 16. |
Three way catalyst 2 |
17. |
Heated oxygen sensor 2 |
18. |
Three way catalyst 1 |
| 19. |
Engine oil temperature sensor |
20. |
A/F sensor 1 |
21. |
Spark plug |
| 22. |
PCV valve |
23. |
Ignition coil (with power transistor) |
24. |
VVEL actuator motor |
| 25. |
VVEL control shaft position sensor |
26. |
Intake valve timing control solenoid valve |
27. |
Camshaft position sensor (PHASE) |
| 28. |
Fuel damper |
29. |
Engine coolant temperature sensor |
30. |
Knock sensor |
| 31. |
Crankshaft position sensor (POS) |
32. |
Muffler |
33. |
Cooling fan control module |
| 34. |
Cooling fan |
35. |
Air cleaner |
36. |
Mass air flow sensor (with intake air temperature sensor) |
| 37. |
Electric throttle control actuator |
38. |
Throttle position sensor |
39. |
Manifold absolute pressure (MAP) sensor |
| 40. |
MIL |
41. |
Ignition switch |
42. |
Accelerator pedal position sensor |
| 43. |
Power steering pressure sensor |
44. |
Refrigerant pressure sensor |
45. |
PNP signal |
