System Description: Description
The crankcase ventilation system allows the discharging of excess pressure and excessive gas sent from the crankcase, feeding them back to the engine through the induction system, and combusting them under any engine operating condition.
- Pressure sensor downstream of throttle valve (Engine load)
- Accelerator pedal position sensor (Accelerator pedal position)
- BCM (Ambient temperature)

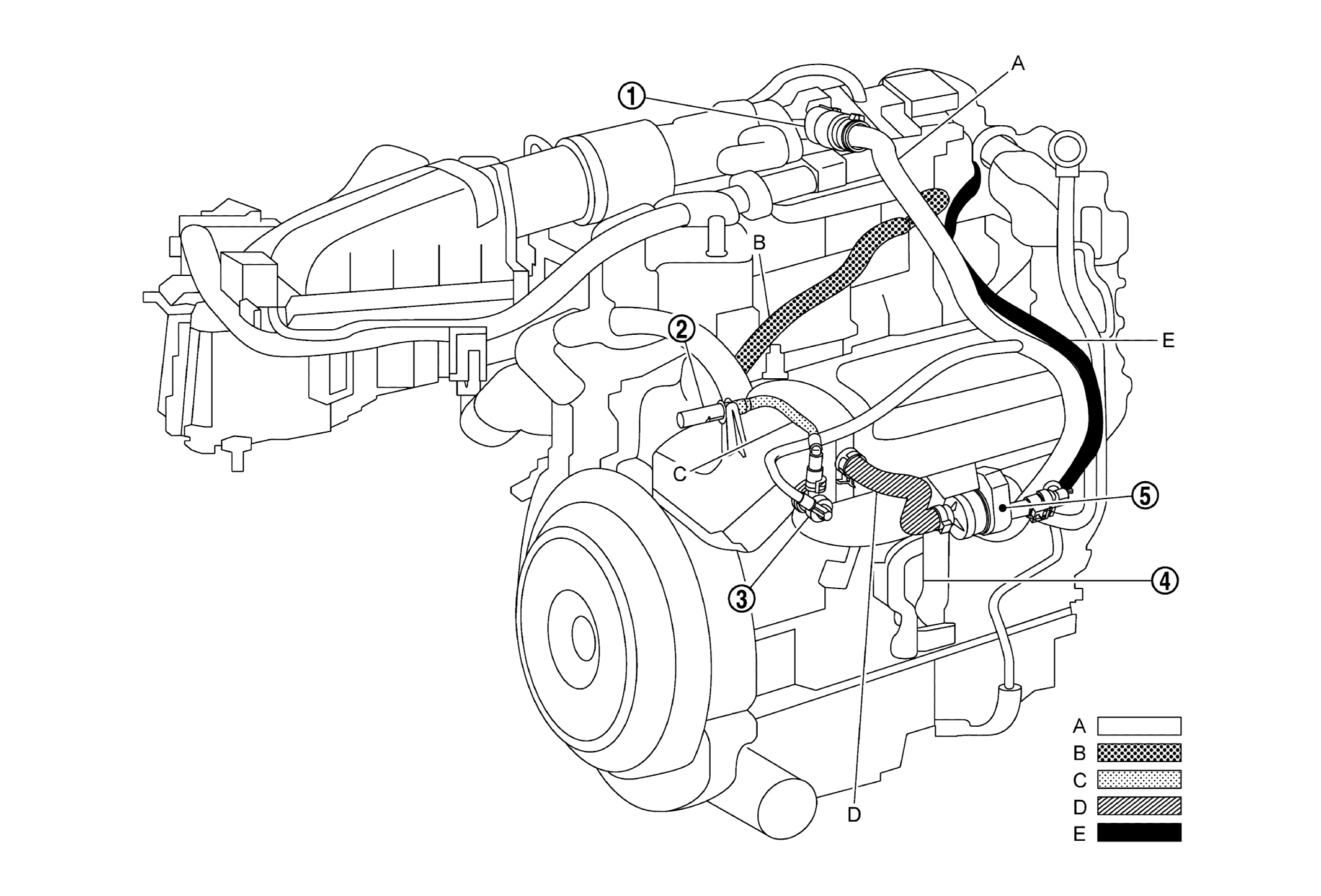

| Full-load operation vent line heater element | Fuel tank ventilation connector | Vent valve | |||
| Oil separator | Partial load operation crankcase ventilation valve | ||||
| A | Partial load bleed line | B | Vent line for oil separator | C | Purge line |
| D | Wide open throttle bleed line | E | Engine ventilation line |
