Power Steering Control System: Wiring Diagram

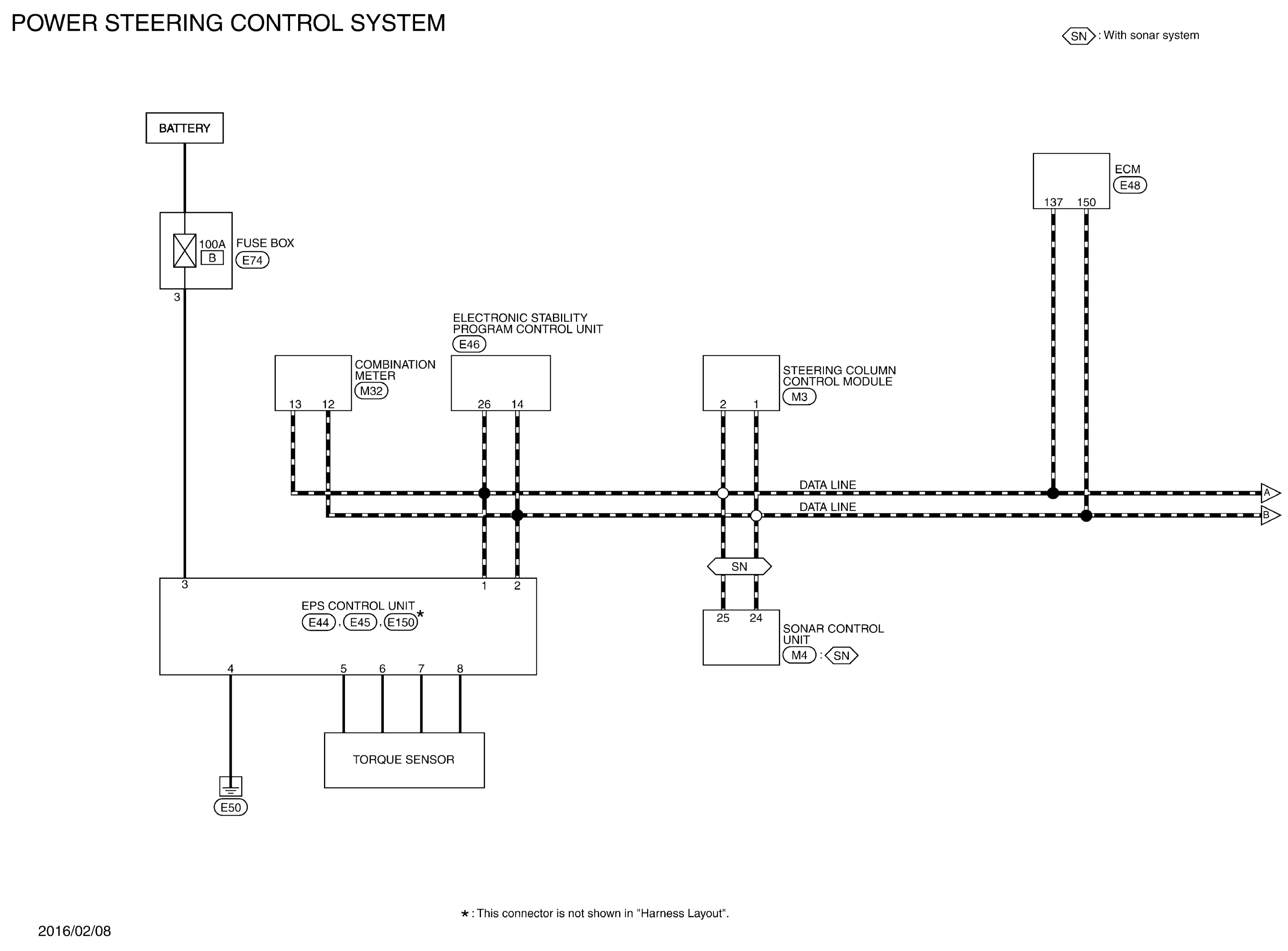

GNSJRGWC3204GB-204Courtesy of NISSAN NORTH AMERICA, INC.

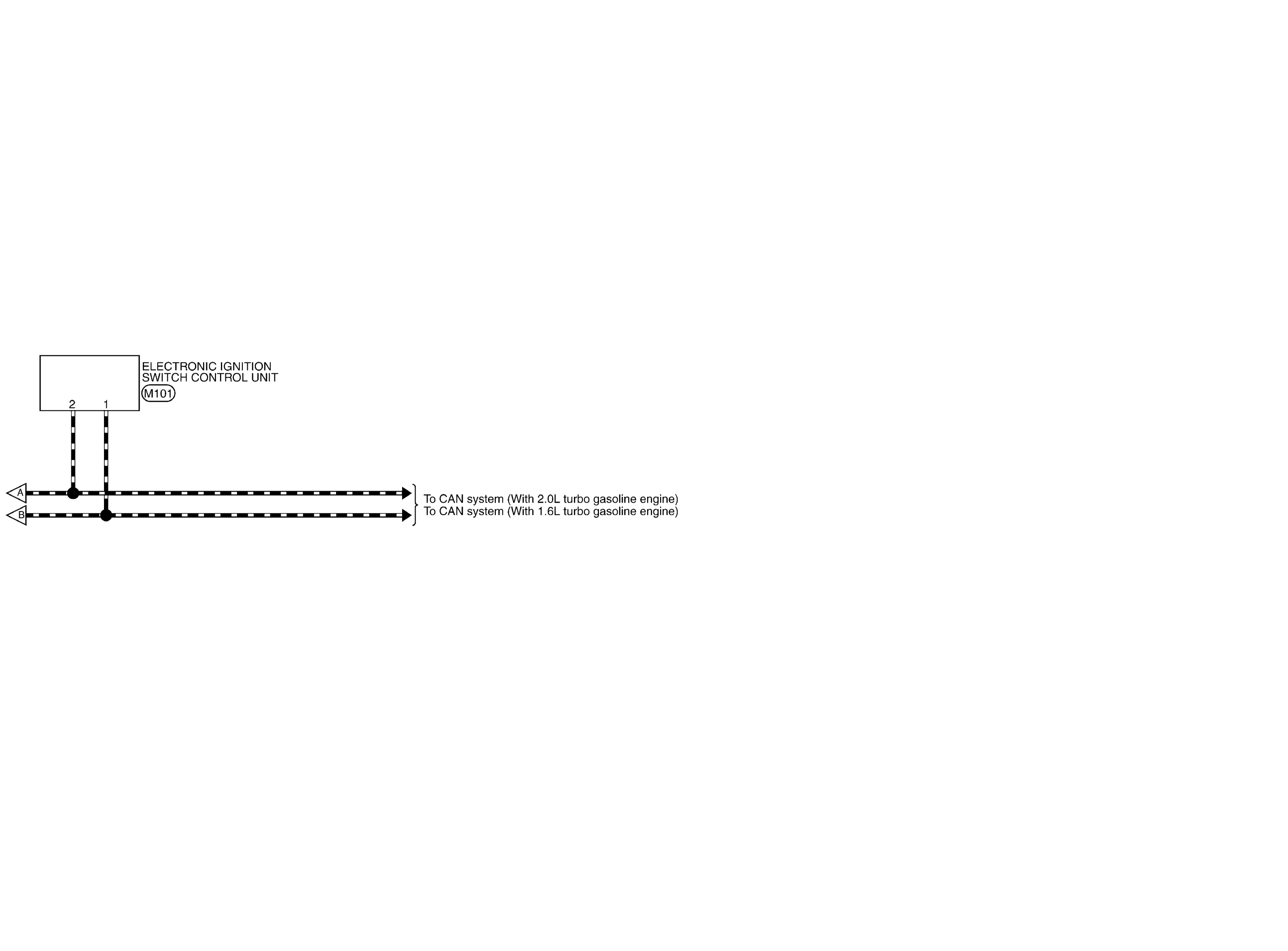

GNSJRGWC3205GB-205Courtesy of NISSAN NORTH AMERICA, INC.

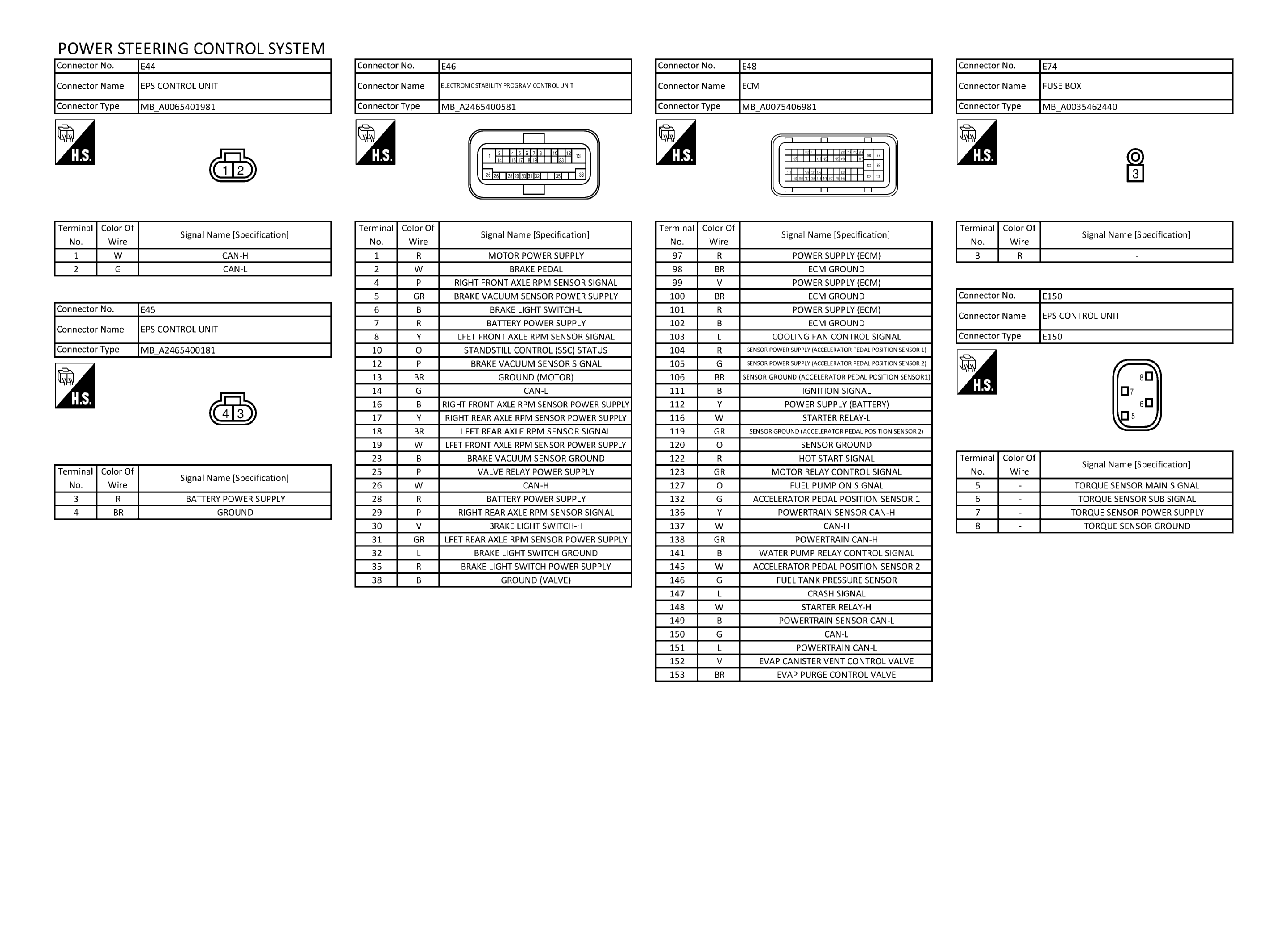

GNSJRGWC3206GB-206Courtesy of NISSAN NORTH AMERICA, INC.

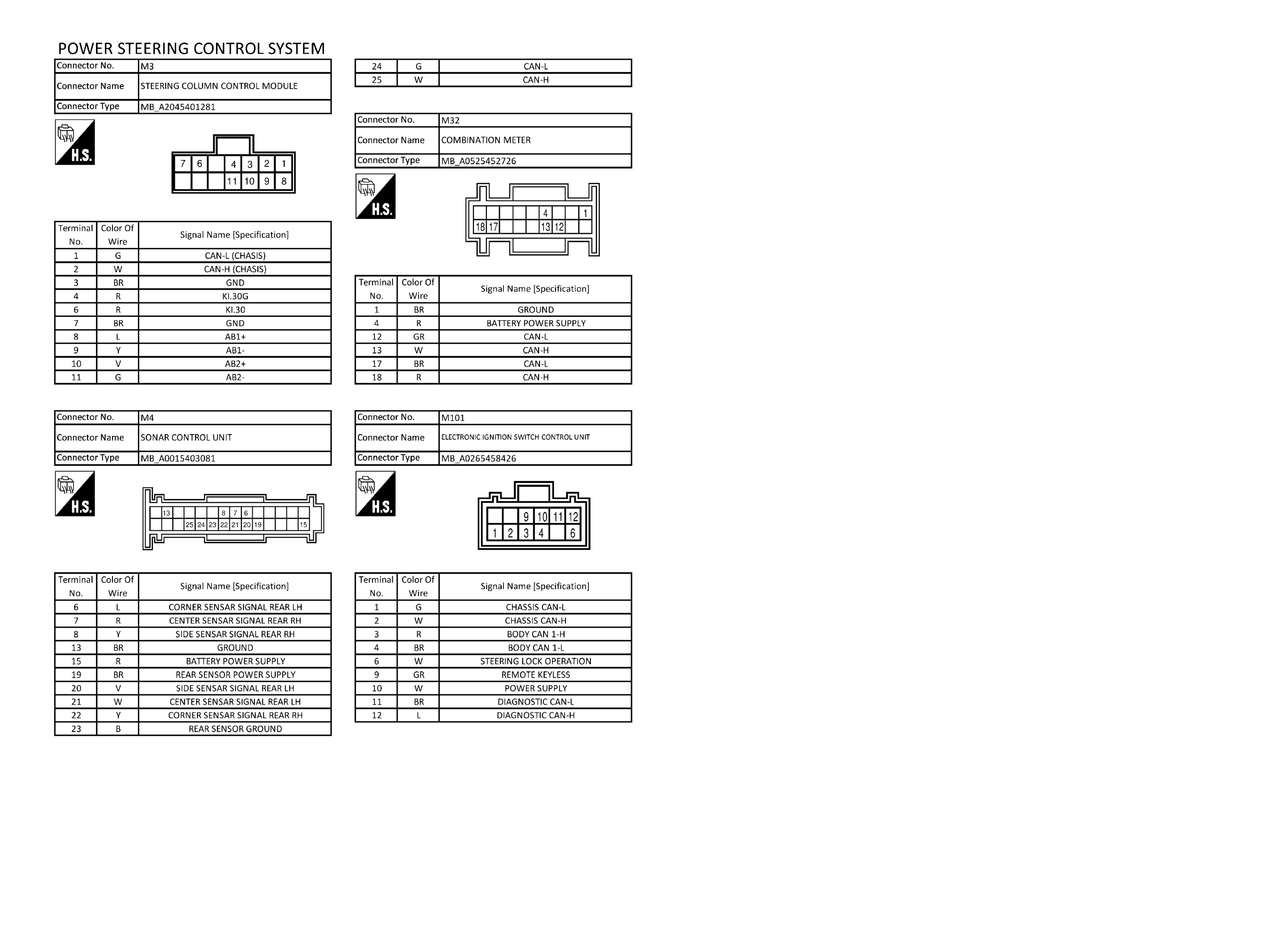

GNSJRGWC3207GB-207Courtesy of NISSAN NORTH AMERICA, INC.
