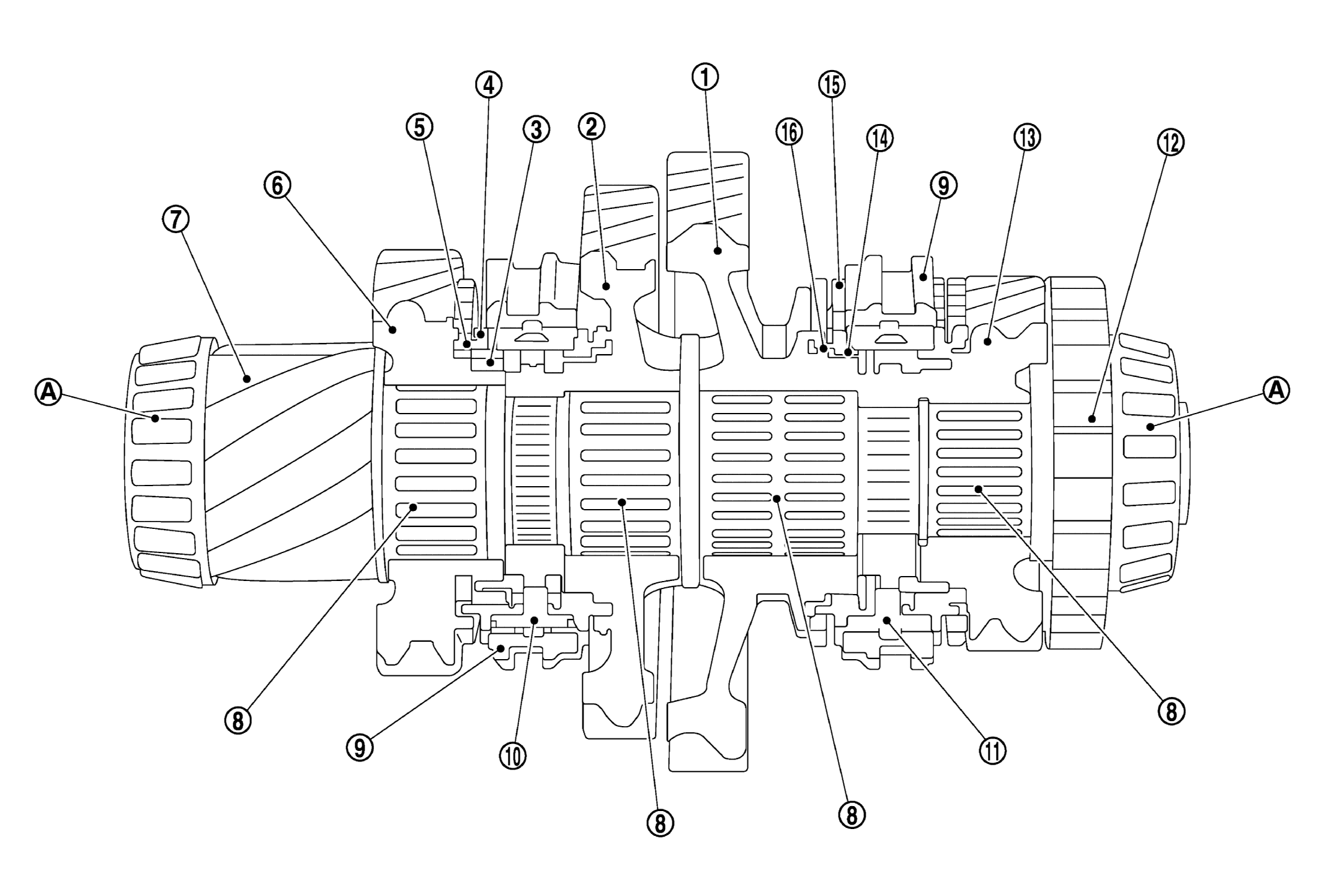

Sectional View: Synchronization
| Tapered roller bearing | |||||
| 1st idler gear | 2nd idler gear | Friction ring (4th gear) | |||
| Synchronizer ring (4th gear) | Cone ring (4th gear) | 4th idler gear | |||
| Output shaft fixed gear 1 | Needle roller bearing | Sliding sleeve | |||
| Synchronizer body with thrust piece (2nd gear/4th gear) | Synchronizer body with thrust piece (1st gear/5th gear) | Park pawl gear | |||
| 5th idler gear | Friction ring with friction lining (1st gear) | Synchronizer ring (1st gear) | |||
| Cone ring (1st gear) |
Synchronization refers to the equalization of rotational speed and positive connection between the output shaft and respective idler gear. Frequent shift operations with short shift times in combination with reduced shift force require an effective synchronization system.
Generally, a distinction is made between the following synchronization types:
- Multiple-cone synchronization (1st to 3rd gear)
- Dual-cone synchronization (4th to 7th gear)
- Single-cone synchronization (reverse gear)
