Exploded View

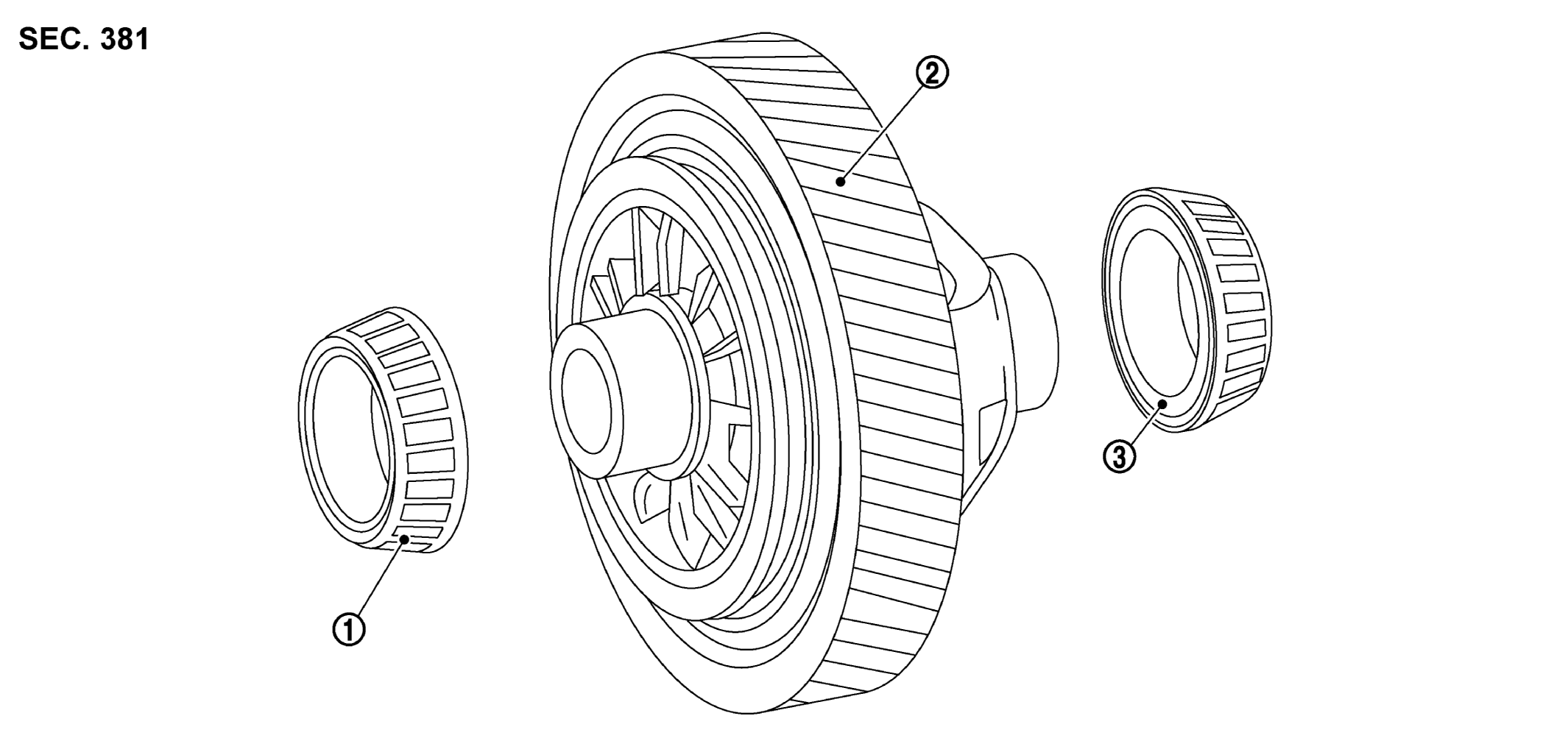

GNSJSDIA8940ZZ-940Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Differential side bearing WHITE-2 Final drive assembly WHITE-3 Differential side bearing
