Entertainment Systems
>>
Audio, Visual & Navigation System (Around View Monitor System)
>>
System Description
>>
Around View Monitor System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

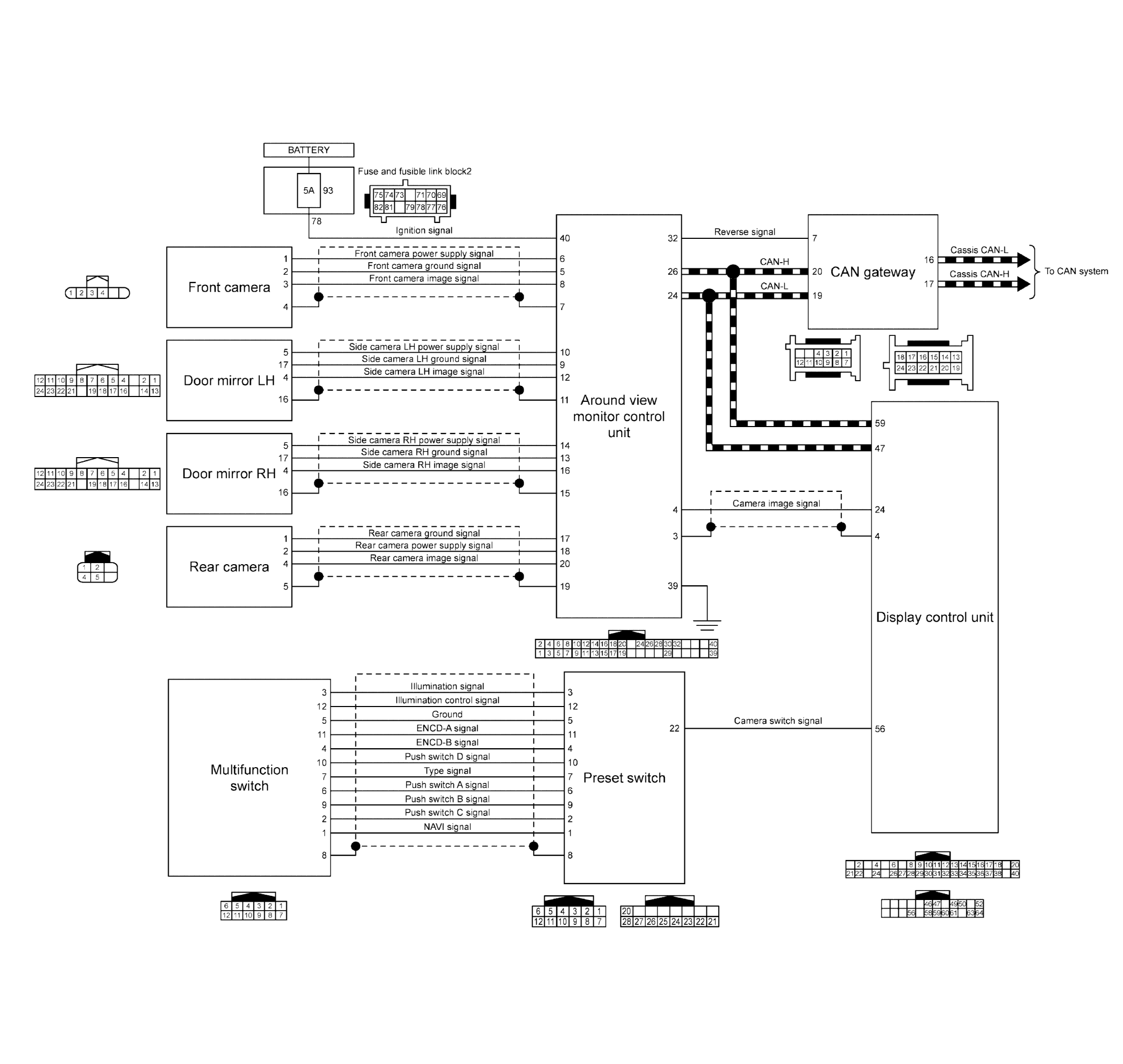

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
