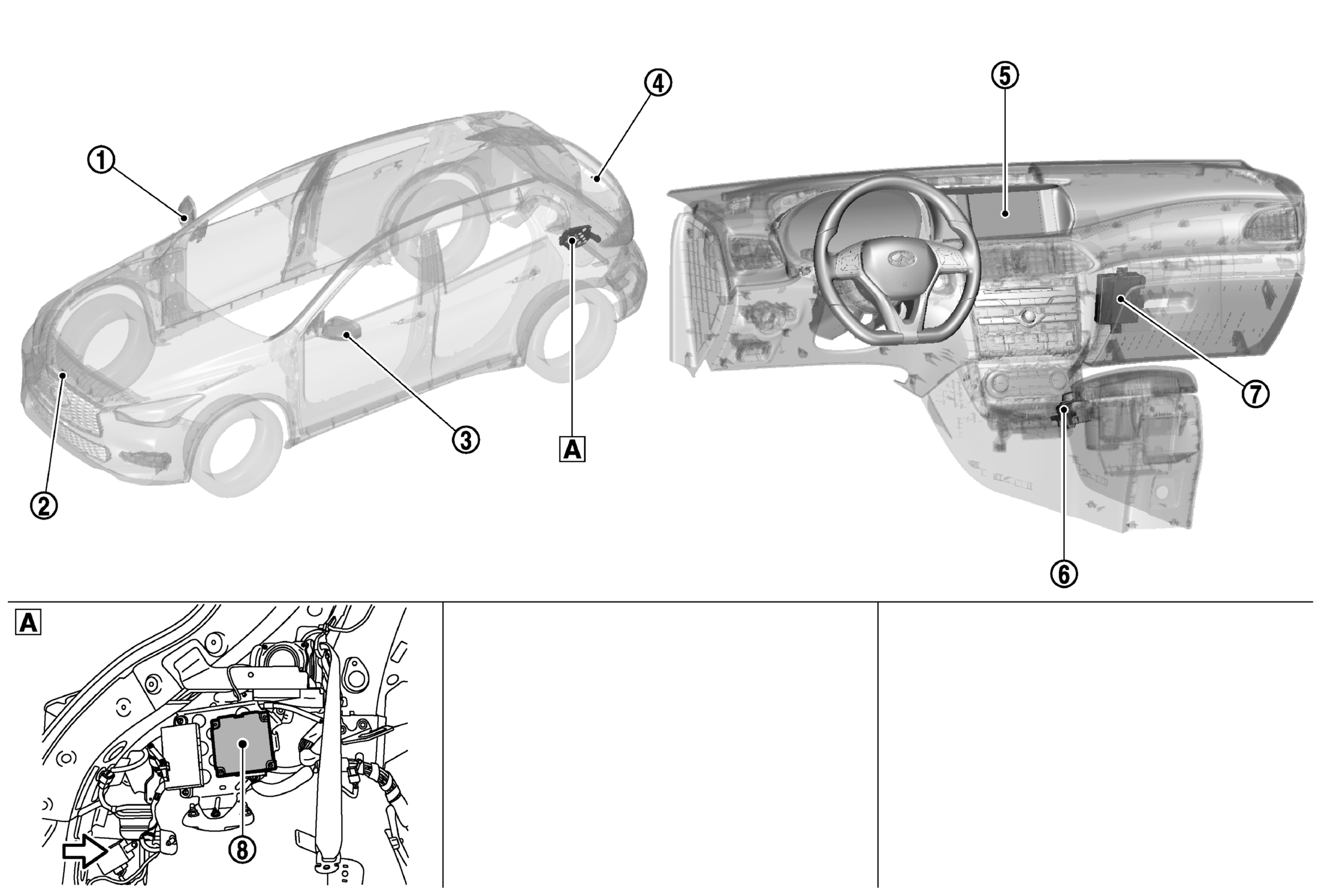

Side camera RH |
Refer to SIDE CAMERA . |
 |
Front camera |
Refer to FRONT CAMERA . |
 |
Side camera LH |
Refer to SIDE CAMERA . |
 |
Rear camera |
Refer to REAR CAMERA . |
 |
Display control unit |
- Camera image signal that is received from around view monitor control unit is displayed in the display.
- Transmits the camera switch signal to the around view monitor control unit.
|
 |
Multifunction switch |
Transmits the camera switch signal to the display control unit. |
 |
CAN gateway |
- Transmits the CAN communication signal to the around view monitor control unit.
- CAN gateway receives each signal via CAN communication. And it converts the signal to Digital/PWM and outputs it to around view monitor control unit.
Refer to COMPONENT LOCATION
for detailed installation location. |
 |
Around view monitor control unit |
Refer to AROUND VIEW MONITOR CONTROL UNIT . |
