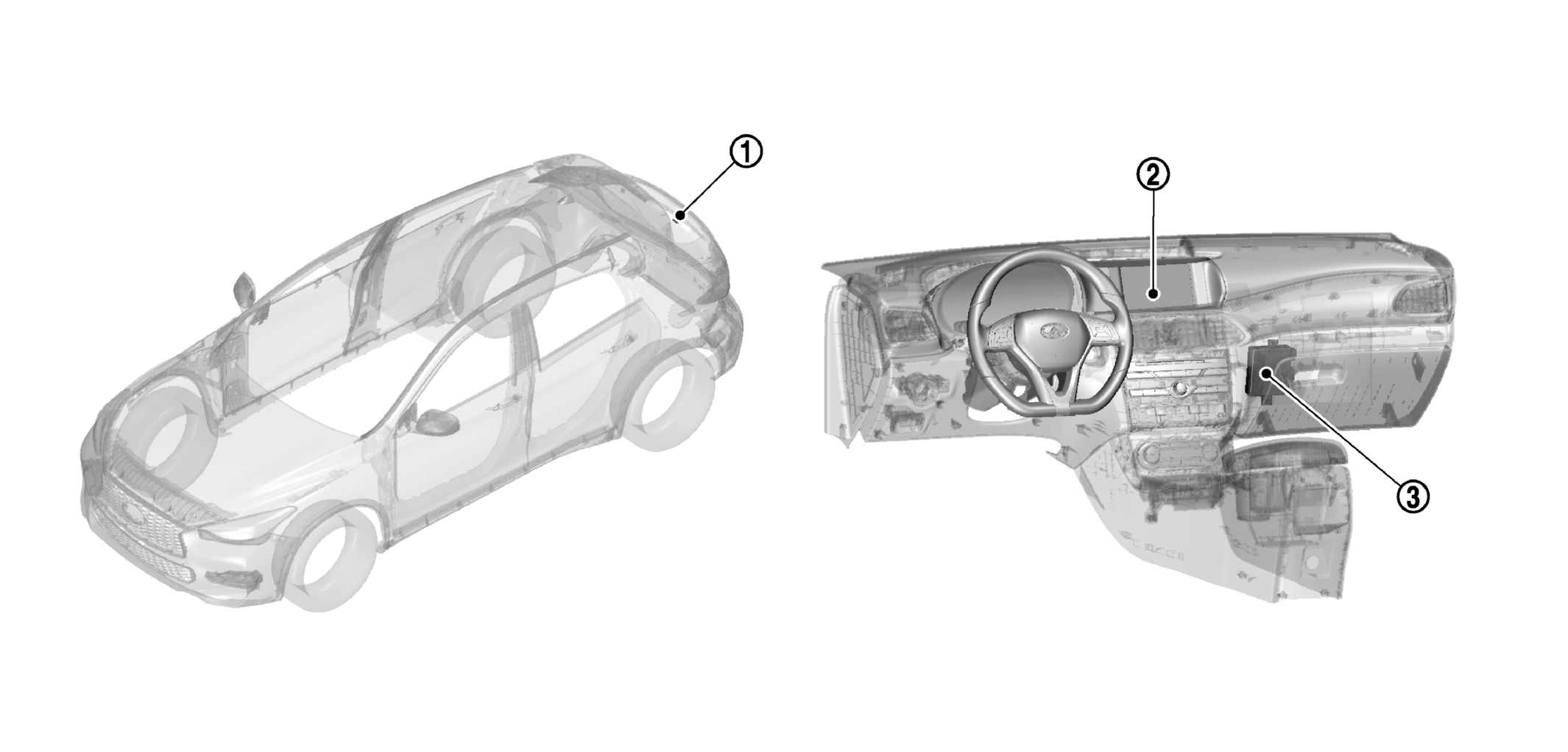

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	Rear view camera	Refer to REAR VIEW CAMERA .
	Display control unit	Refer to DISPLAY CONTROL UNIT .
	CAN gateway	Transmits the CAN communication signals to the display control unit. CAN gateway receives each signal via CAN communication. And it converts the signal to Digital/PWM and outputs it to control unit of AV system. Refer to COMPONENT LOCATION , for detailed installation location.
