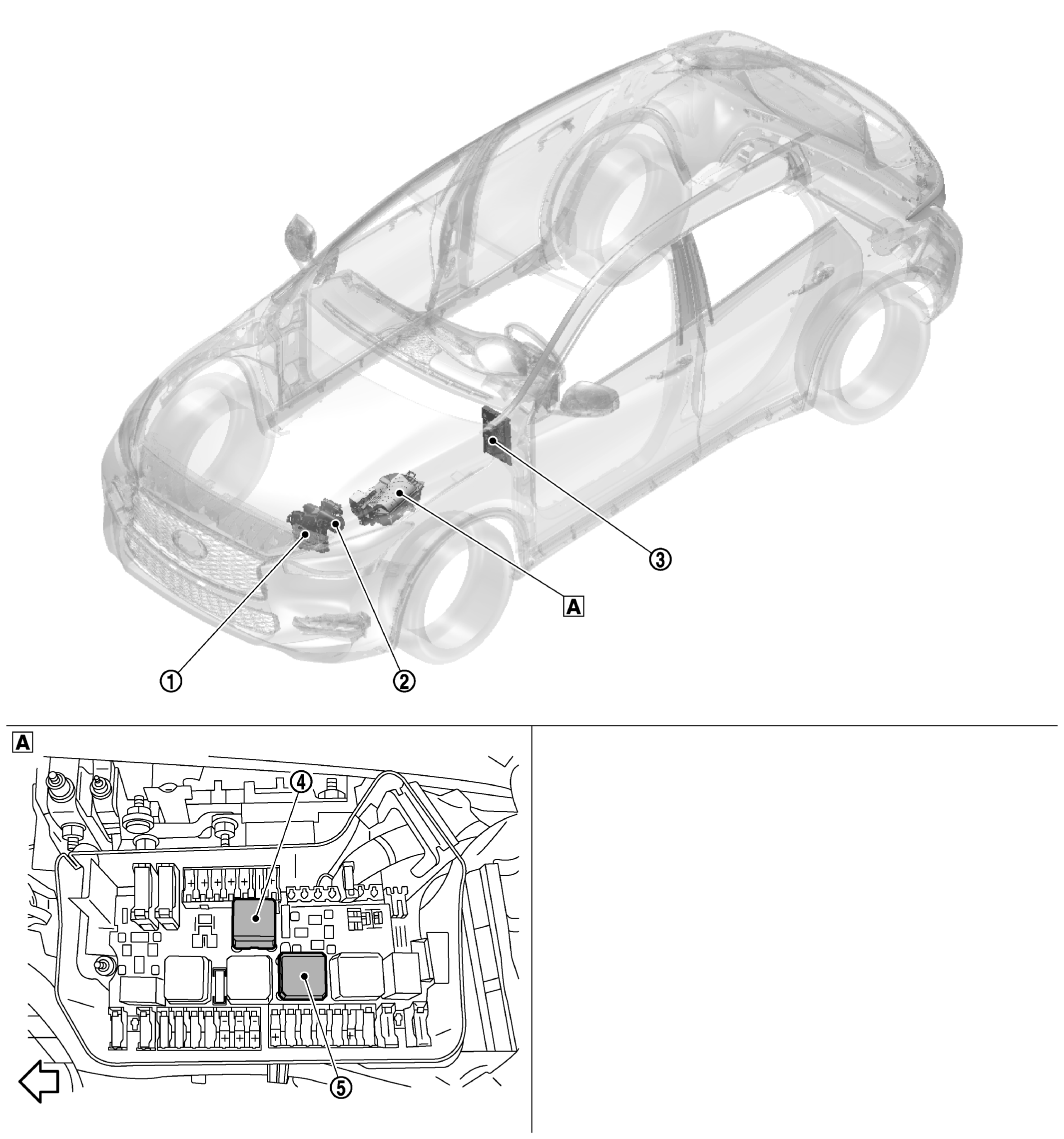

Component Location
| Fuse and fusible link block 1 |
| No. | Component | Function |
|---|---|---|
| ECM | ECM controls starter relay. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Starter motor | Refer to STARTER MOTOR . | |
| BCM | BCM controls injection relay. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Injection relay | Injection relay is turned ON by BCM when ignition switch is ON or START. | |
| Starter relay | Starter relay is turned ON by ECM when starter operating condition is satisfied. |
