Exploded View

Single type

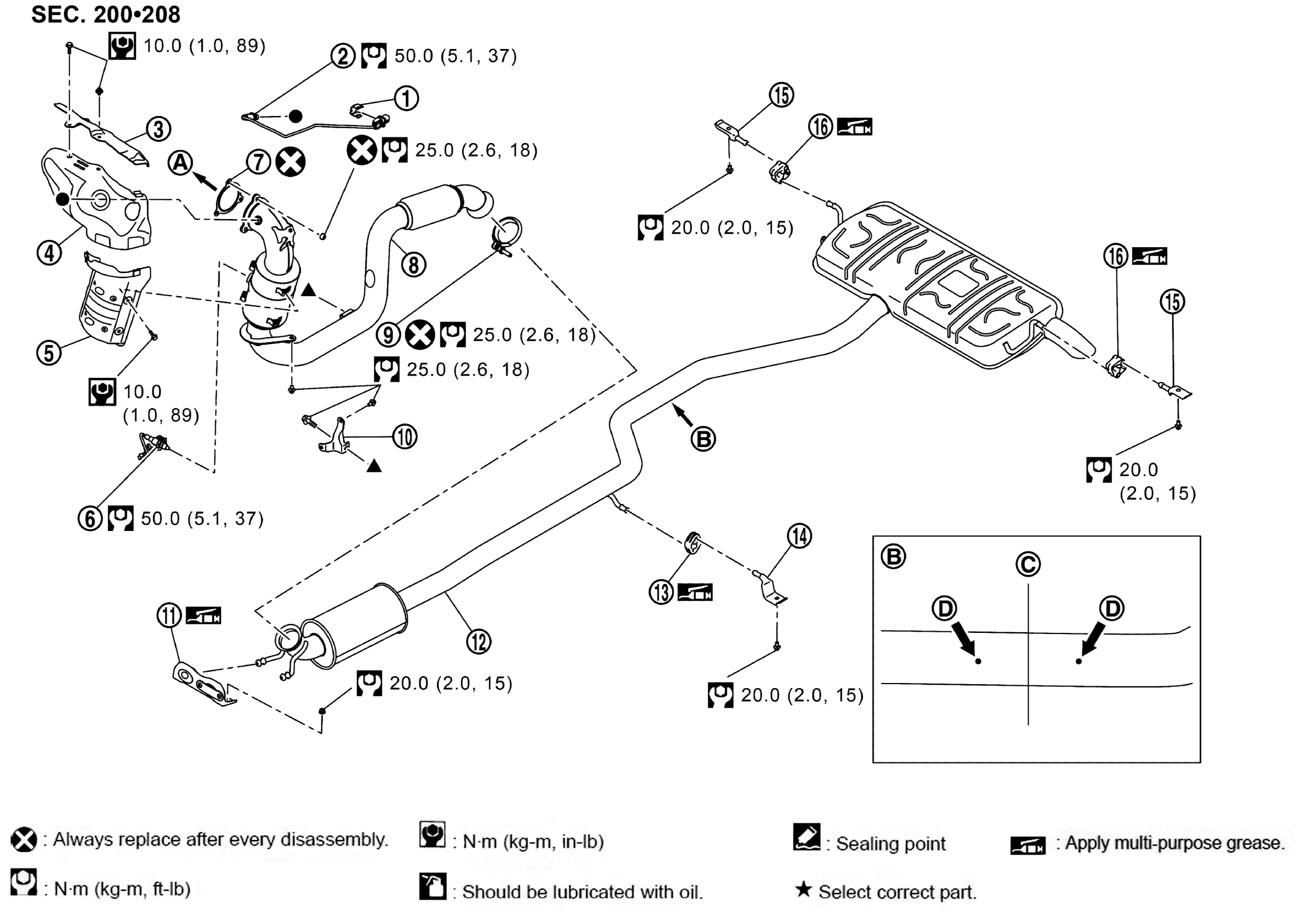

Fig 1: Exhaust System 2WD Single With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Clip	Air fuel ratio sensor	Heat insulator
	Heat insulator	Heat insulator	Heated oxygen sensor
	Gasket	Exhaust front tube	Tube clamp
	Bracket	Mounting bracket 1	Rear muffler assembly
	Mounting rubber	Mounting bracket 2	Mounting bracket 3
	Mounting rubber
	To exhaust manifold and turbocharger assembly	View B	Cutting point
	Rear clamp install point
	: N•m (kg-m, in-lb)
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
	: Should be lubricated with antifriction paste.
, : Indicates that the part is connected at points with same symbol in actual vehicle.

2WD dual type

Fig 2: Exhaust System 2WD Dual With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Clip	Air fuel ratio sensor	Heat insulator
	Heat insulator	Heat insulator	Heated oxygen sensor
	Gasket	Exhaust front tube	Tube clamp
	Bracket	Mounting bracket 1	Rear muffler assembly
	Mounting rubber	Mounting bracket 2	Mounting bracket 3
	Mounting rubber
	To exhaust manifold and turbocharger assembly	View B	Cutting point
	Rear clamp install point
	: N•m (kg-m, in-lb)
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
	: Should be lubricated with antifriction paste.
, : Indicates that the part is connected at points with same symbol in actual vehicle.

AWD models

Fig 3: Exhaust System AWD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Clip	Air fuel ratio sensor	Heat insulator
	Heat insulator	Heat insulator	Heated oxygen sensor
	Gasket	Exhaust front tube	Tube clamp
	Bracket	Mounting bracket 1	Rear muffler assembly
	Mounting rubber	Mounting bracket 2	Mounting bracket 3
	Mounting rubber	Heat insulator
	To exhaust manifold and turbocharger assembly	View B	Cutting point
	Rear clamp install point
	: N•m (kg-m, in-lb)
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
	: Should be lubricated with antifriction paste.
, : Indicates that the part is connected at points with same symbol in actual vehicle.
