Exploded View

WARNING: This page is about a different variant/trim than selected.

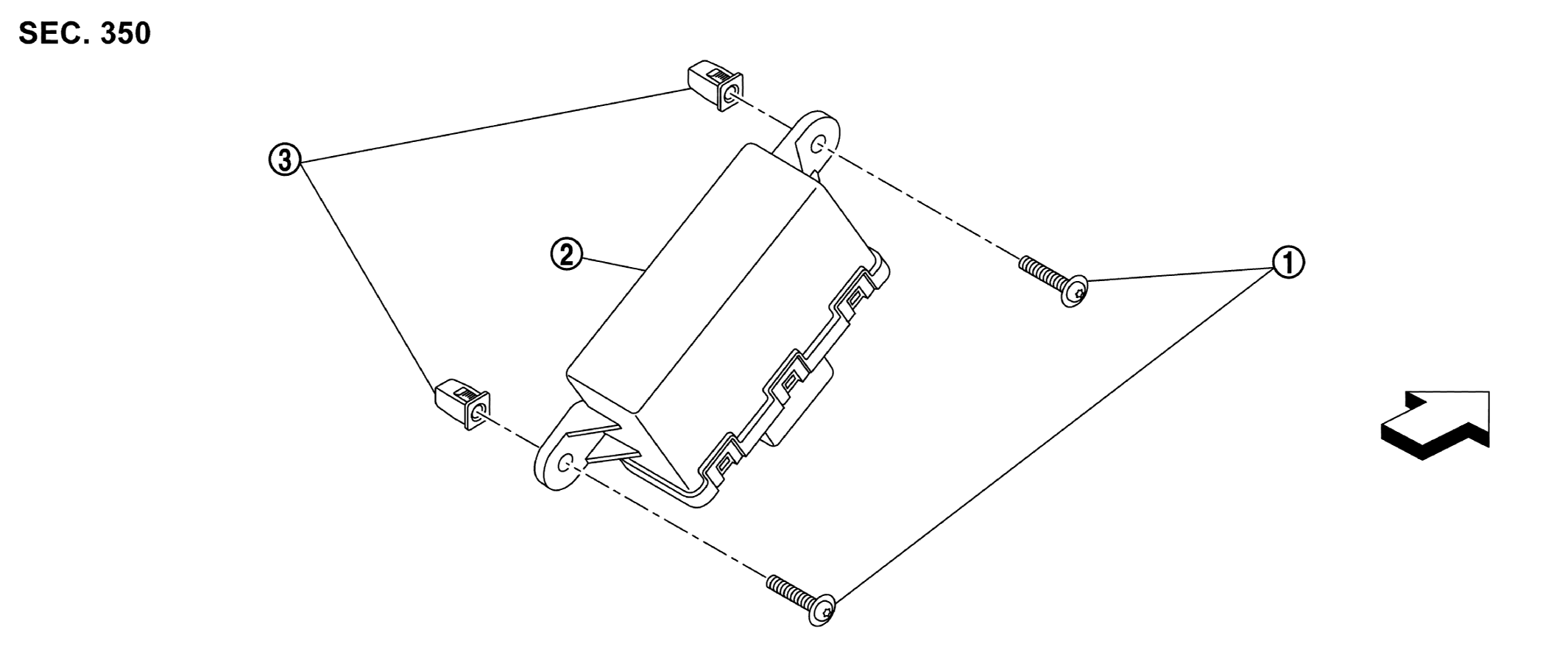

GNSJSDIA8769ZZ-769Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Combination screw WHITE-2 AWD control unit WHITE-3 Spreader nut
ARROW : Vehicle front
