Sectional View

WARNING: This page is about a different variant/trim than selected.

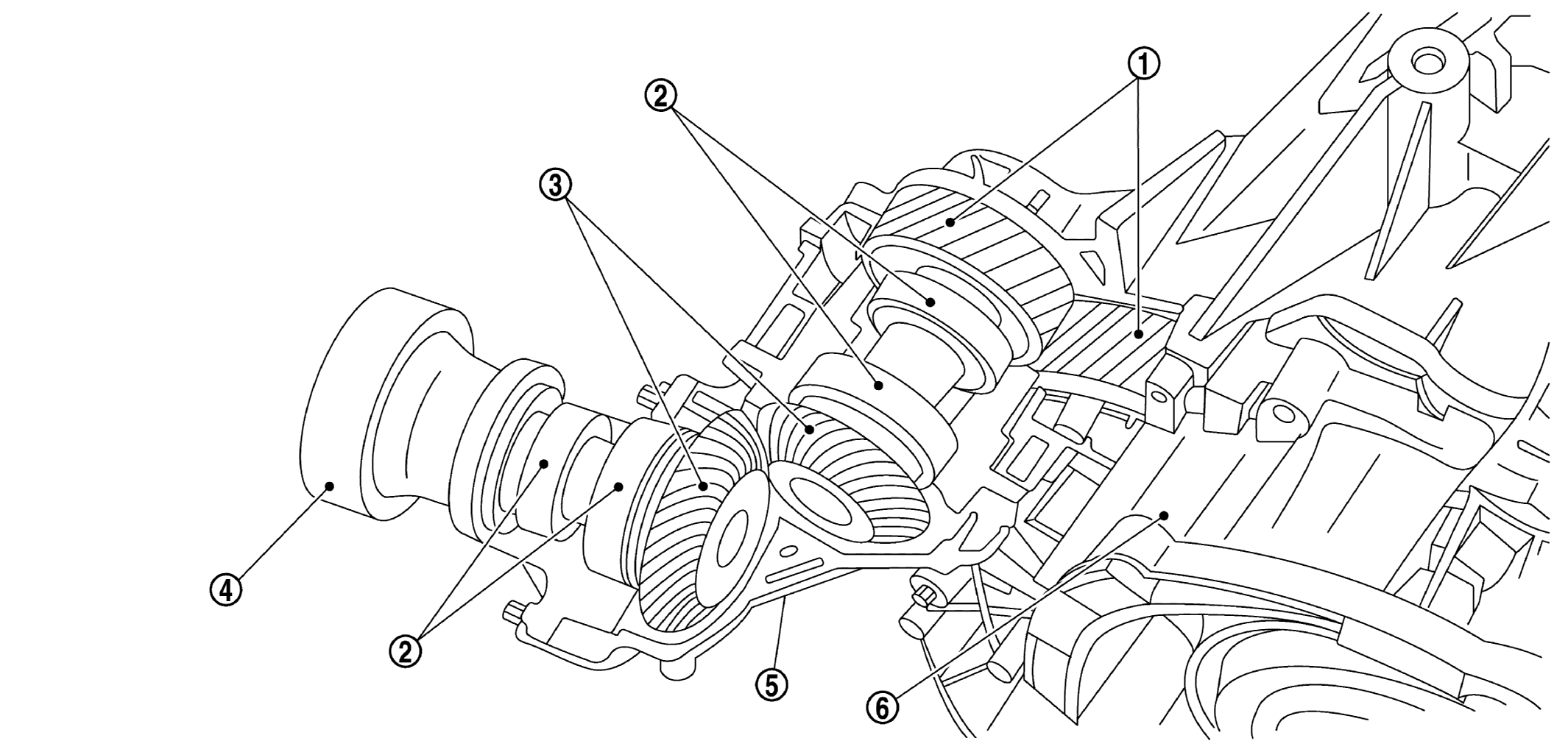

GNSJSDIA8792ZZ-792Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Spur gears (helically geared) WHITE-2 Tapered roller bearing WHITE-3 Bevel gears (spirally geared)
WHITE-4 Companion flange WHITE-5 Transfer WHITE-6 Transaxle assembly
