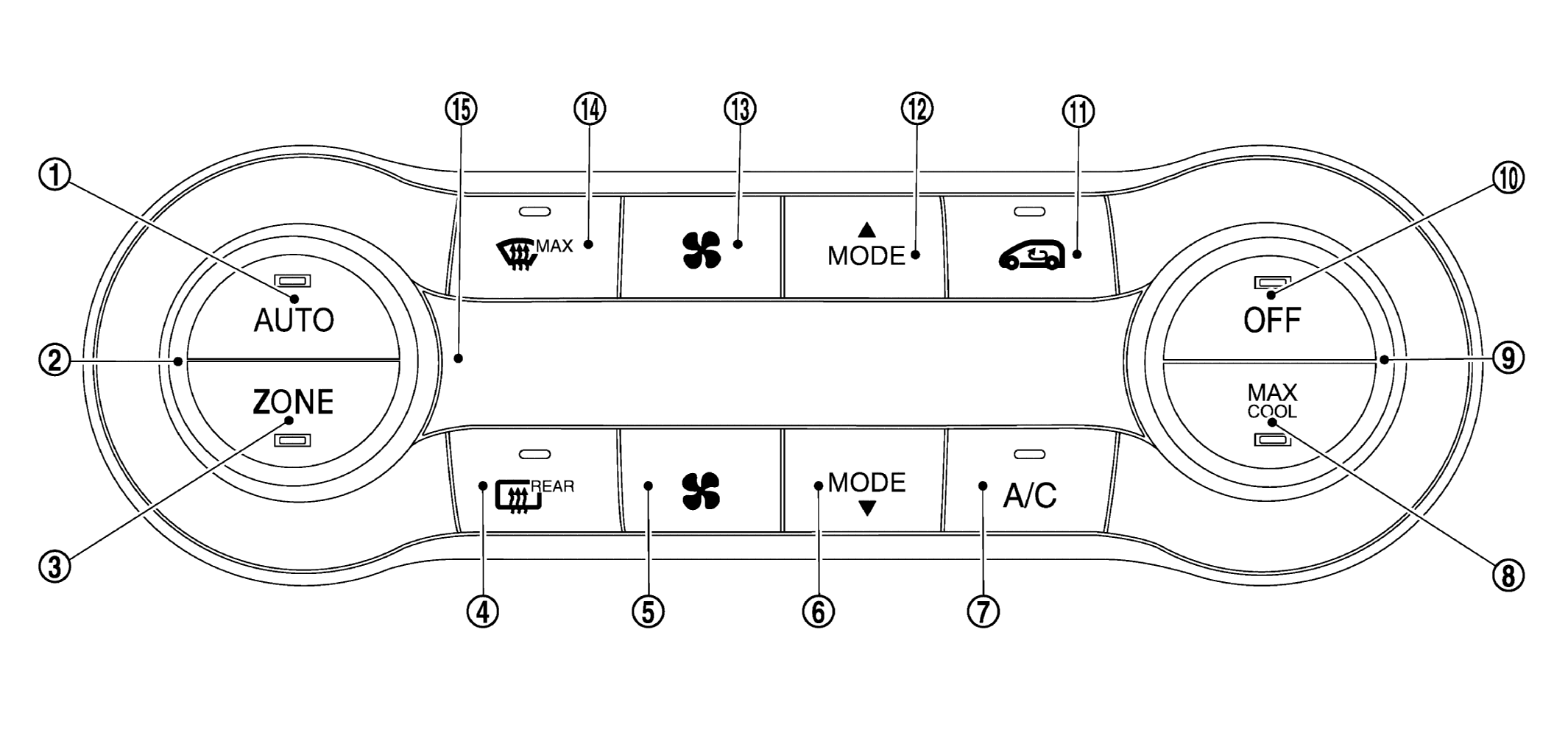

| Rear window defogger switch |
Rear window defogger ON/OFF |
Integrated indicator lamp |
| Intake switch |
Air recirculation mode ON/OFF |
Integrated indicator lamp |
| DEF switch |
Defrost mode ON/OFF |
Integrated indicator lamp |
| A/C switch |
Compressor ON/OFF |
Integrated indicator lamp |
| Temperature control dial LH |
Configuration of specified temperature at left |
Display |
| Temperature control dial RH |
Configuration of specified temperature at right |
Display |
| OFF switch |
Air conditioning ON/OFF |
Integrated indicator lamp |
| MAX COOL switch |
Maximum cooling output ON/OFF |
Integrated indicator lamp |
| AUTO switch |
Automatic mode ON/OFF |
Integrated indicator lamp |
| ZONE switch |
Take over settings of driver side for passenger side |
Integrated indicator lamp |
| Fan switch (decrease) |
Decrease air flow |
Display |
| Fan switch (increase) |
Increase air flow |
Display |
| MODE switch (downward) |
Change air outlet |
Display |
| MODE switch (upward) |
Change air outlet |
Display |
