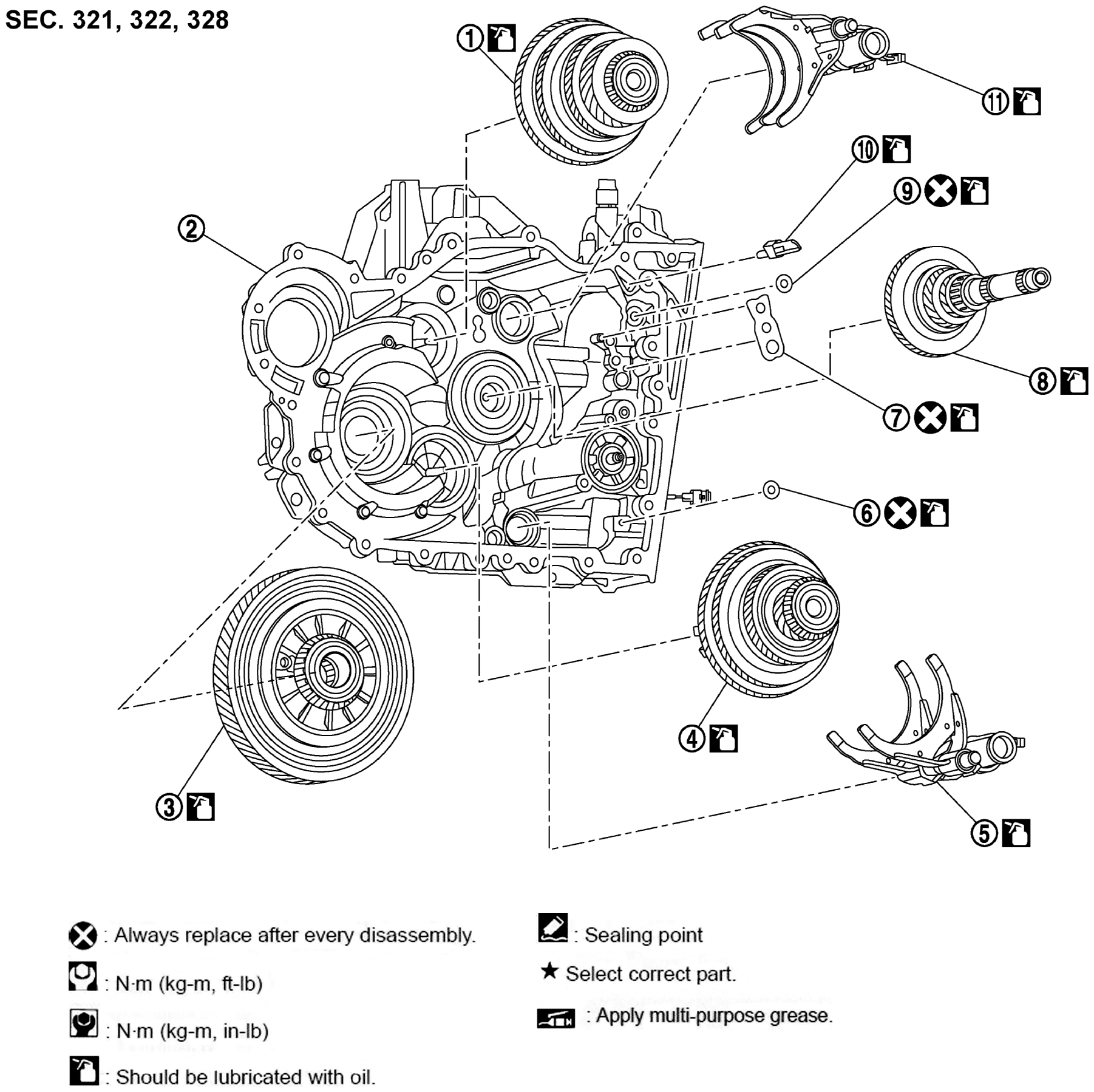

Transaxle Case Side 2

Courtesy of NISSAN NORTH AMERICA, INC.

3rd, 6th, 7th, and reverse gear output shaft	Transaxle case	Final drive
1st, 2nd, 4th, and 5th gear output shaft	Shift fork 1	Gasket
Gasket	Input shaft	Gasket
Oil cooling	Shift fork 2
: Always replace after every disassembly.
: Apply transaxle fluid
