ICC Steering Switch

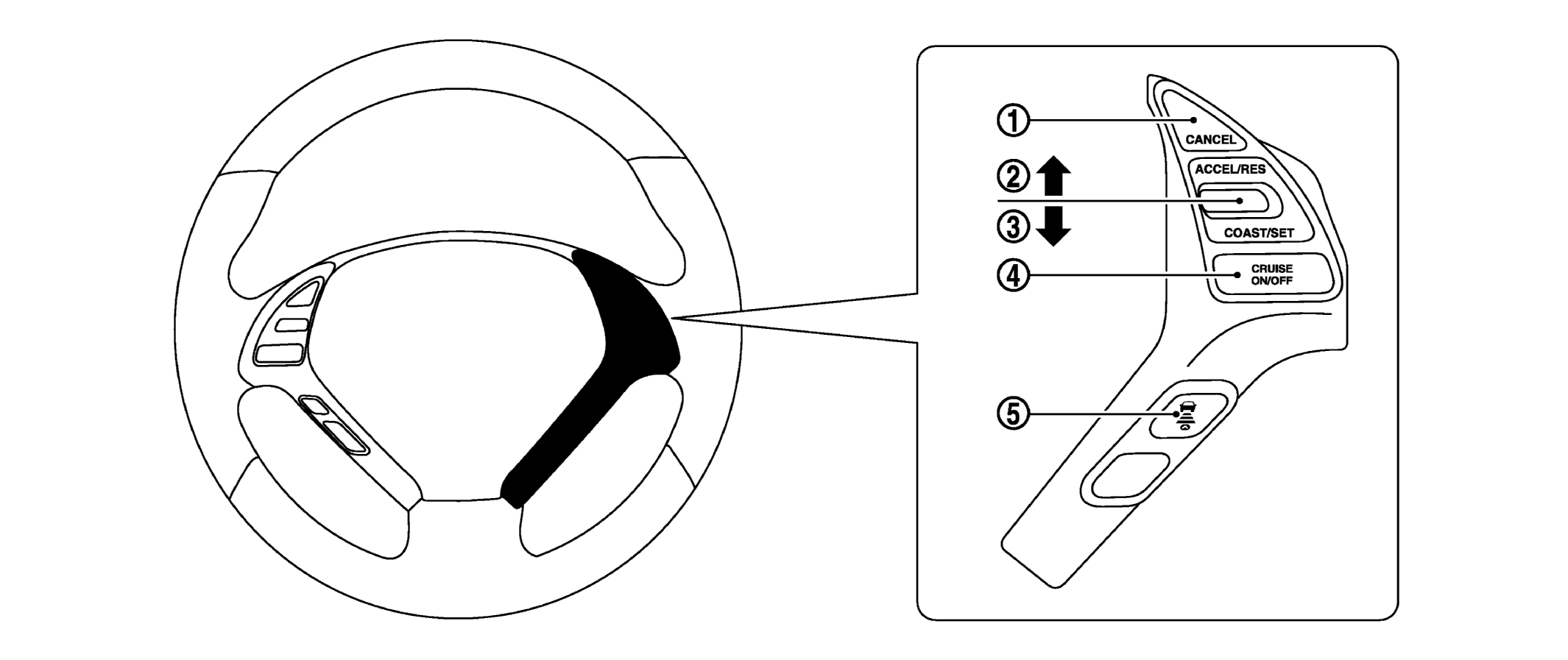

GNSJSOIA0139ZZ-139Courtesy of NISSAN NORTH AMERICA, INC.
1. CANCEL switch 2. RESUME/ACCELERATE switch 3. SET/COAST switch
4. MAIN switch 5. DISTANCE switch
No. Switch name Description
1 CANCEL switch Deactivates the system without erasing the set speed.
2 RESUME/ACCELERATE switch Resumes set speed or increases speed incrementally.
  • Push and hold the switch to increase the set speed by 5 km/h (5 MPH).
  • Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH).
3 SET/COAST switch Sets desired cruise speed or reduces speed incrementally.
  • Push and hold the switch to decrease the set speed by 5 km/h (5 MPH).
  • Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH).
NOTE:

The minimum set speed is 32 km/h (20 MPH).
4 MAIN switch Master switch to activate the system (Press for less than 1.5 seconds).
5 DISTANCE switch Changes the following distance from: Long, Middle, Short.
