Bulb Check Action And Fail-Safe Indication

Vehicle condition/ Driver's operation	Indication on the combination meter

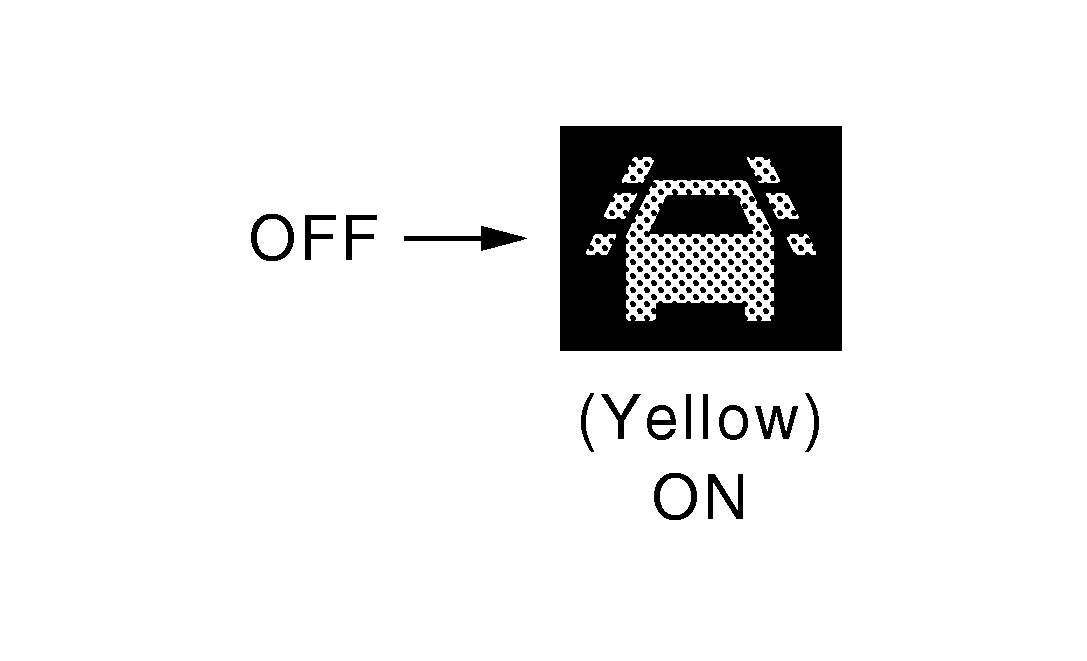

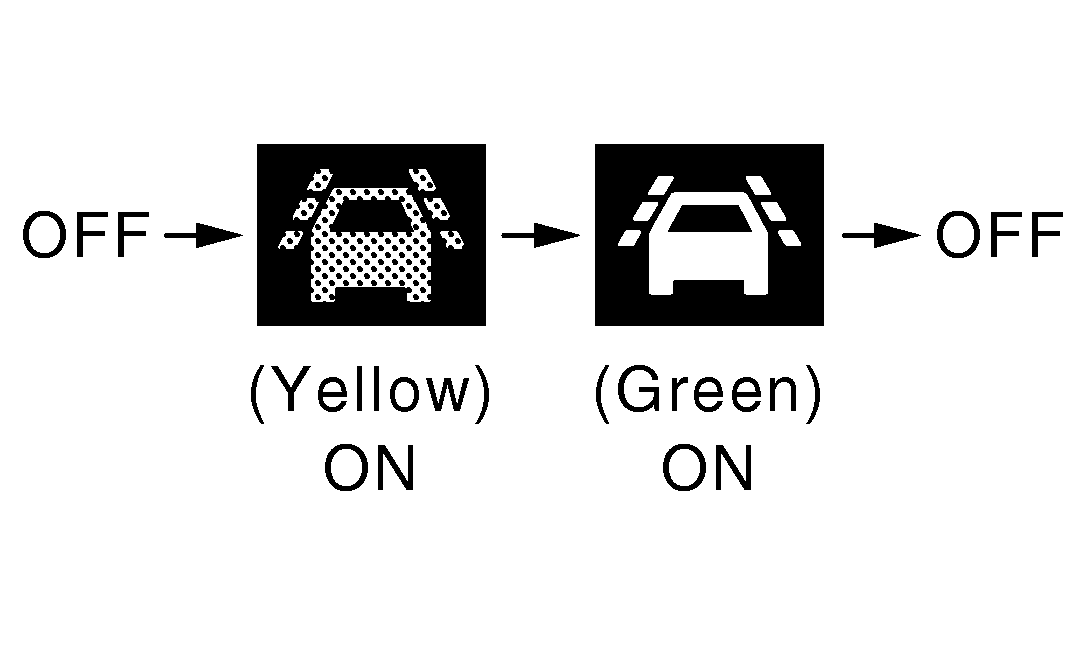

Ignition switch: OFF → ON	Courtesy of NISSAN NORTH AMERICA, INC.

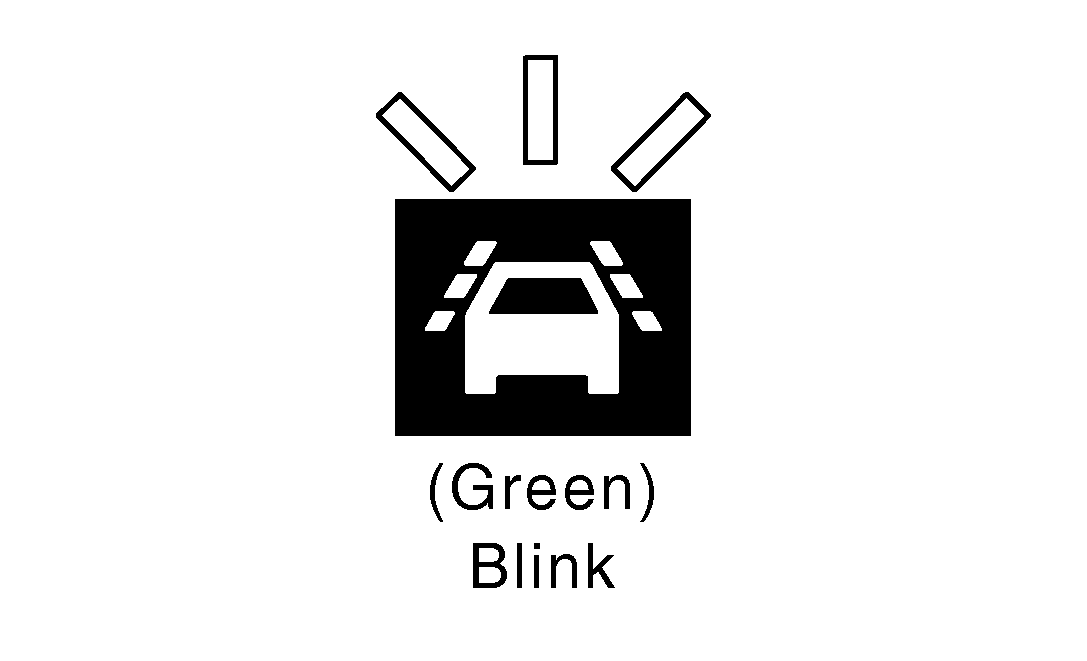

When DTC is detected (Except "C1B01" and "C1B03")	Courtesy of NISSAN NORTH AMERICA, INC.

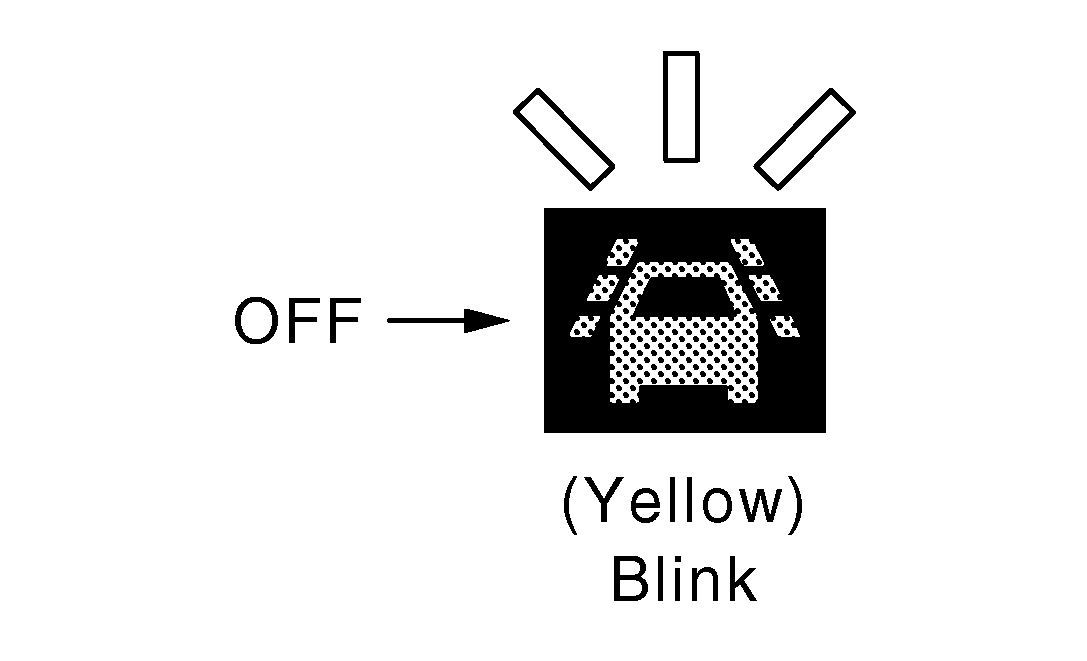

Camera aiming is not completed ("C1B01" is detected)	Courtesy of NISSAN NORTH AMERICA, INC.
Temporary disabled status at high temperature ("C1B03" is detected)	Courtesy of NISSAN NORTH AMERICA, INC.
When the dynamic driver assistance switch is turned ON with settings of DCA system and LDP system OFF	Courtesy of NISSAN NORTH AMERICA, INC.
