Physical Values
| Terminal (Wire color) |
Description | Condition | Reference value (Approx.) |
|||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
| 1 (W) |
Ground | AMP. ON signal | Output | Ignition switch ON | - | 12.0 V |
| 2 (R) |
3 (G) |
Sound signal front LH | Output | Ignition switch ON | Sound output. | |
| 4 (BR) |
5 (Y) |
Sound signal rear LH | Output | Ignition switch ON | Sound output. | |
| 6 (P) |
15 (B) |
Steering switch signal A | Input | Ignition switch ON | Keep pressing SOURCE switch. | 0 V |
| Keep pressing MENU UP switch. | 1.0 V | |||||
| Keep pressing MENU DOWN switch. | 2.0 V | |||||
| Keep pressing |
3.0 V | |||||
| Keep pressing ENTER switch. | 4.0 V | |||||
| Except for above. | 5.0 V | |||||
| 7 (V) |
Ground | ACC power supply | Input | Ignition switch ACC | - | Battery voltage |
| 10 (B) |
- | Shield | - | - | - | - |
| 11 (P) |
12 (L) |
Sound signal front RH | Output | Ignition switch ON | Sound output. | |
| 13 (V) |
14 (LG) |
Sound signal rear RH | Output | Ignition switch ON | Sound output. | |
| 16 (L) |
15 (B) |
Steering switch signal B | Input | Ignition switch ON | Keep pressing VOL DOWN switch. | 0 V |
| Keep pressing VOL UP switch. | 1.0 V | |||||
| Keep pressing |
2.0 V | |||||
| Keep pressing |
3.0 V | |||||
| Except for above. | 5.0 V | |||||
| 19 (Y) |
Ground | Battery power supply | Input | Ignition switch OFF | - | Battery voltage |
| 20 (B) |
Ground | Ground | - | Ignition switch ON | - | 0 V |
| 29 (Y) |
Ground | Disk eject signal | Input | Ignition switch ON | Pressing the eject switch. | 0 V |
| Except for above. | 5.0 V | |||||
| 30 (SB) |
Ground | Mode change signal | Output | Ignition switch ON | Driver's Audio Stage ON | 0 V |
| Driver's Audio Stage OFF | 8.5 V | |||||
| 49 (B) |
Ground | Switch ground | - | Ignition switch ON | - | 0 V |
| 65 (V) |
Ground | Parking brake signal | Input | Ignition switch ON | Parking brake is ON. | 4.5 V |
| Parking brake is OFF. | 0 V | |||||
| 67 (G) |
Ground | Composite image signal ground | - | Ignition switch ON | - | 0 V |
| 68 (R) |
Ground | Composite image signal | Output | Ignition switch ON | At DVD image is displayed. | |
| 71 | - | Microphone shield | - | - | - | - |
| 72 (R) |
Ground | Microphone VCC | Output | Ignition switch ON | - | 5.0 V |
| 73 (R) |
Ground | Communication signal (CONT→DISP) |
Output | Ignition switch ON | When adjusting display brightness. | |
| 74 (P) |
- | CAN-L | Input/Output | - | - | - |
| 75 (LG) |
- | AV communication signal (L) | Input/Output | - | - | - |
| 79 (R) |
Ground | Illumination signal | Input | Ignition switch OFF | Lighting switch is OFF. | 0 V |
| Lighting switch is ON. | 12.0 V | |||||
| 80 (G) |
Ground | Ignition signal | Input | Ignition switch ON | - | Battery voltage |
| 81 (BG) |
Ground | Reverse signal | Input | Ignition switch ON | R position. | 12.0 V |
| Other than R position. | 0 V | |||||
| 82 (R) |

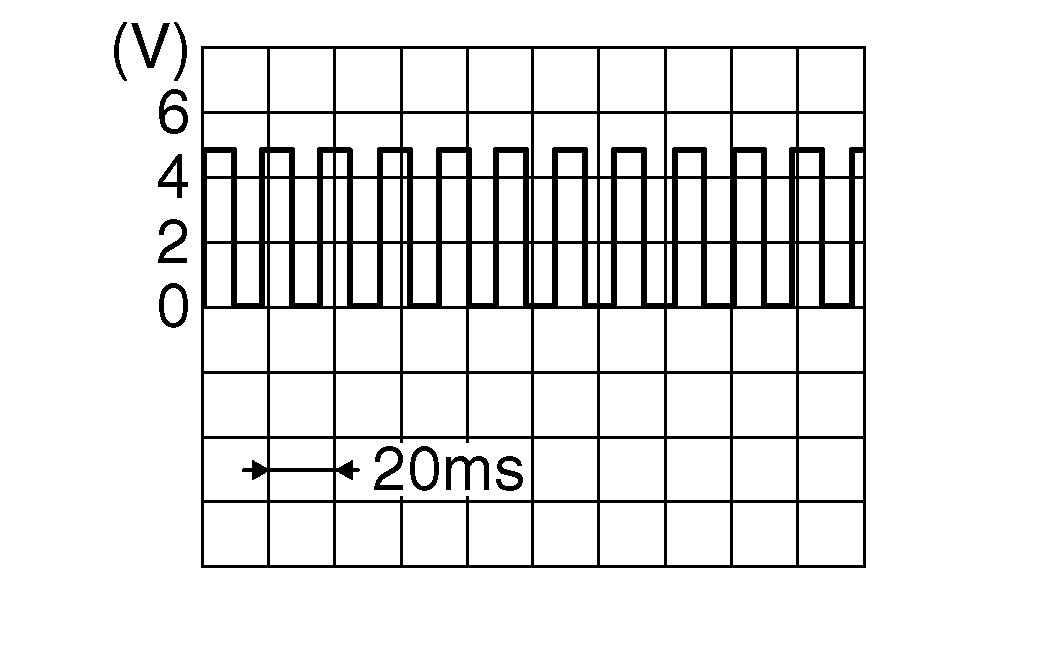

Ground | Vehicle speed signal (8 - pulse) | Input | Ignition switch ON | When vehicle speed is approx. 40 km/h (25 MPH) |
NOTE:
Maximum voltage may be 12.0 V due to specifications (connected units). |
| 83 | - | Shield | - | - | - | - |
| 87 (G) |
71 | Microphone signal | Input | Ignition switch ON | Give a voice. | |
| 88 | - | Shield | - | - | - | - |
| 89 (G) |
Ground | Communication signal (DISP→CONT) |
Input | Ignition switch ON | When adjusting display brightness. | |
| 90 (L) |
- | CAN-H | Input/Output | - | - | - |
| 91 (SB) |
- | AV communication signal (H) | Input/Output | - | - | - |
| 129 (G) |
- | USB ground | - | - | - | - |
| 130 (R) |
- | USB D - signal | Input/Output | - | - | - |
| 131 (W) |
- | V BUS signal | Output | - | - | - |
| 132 (L) |
- | USB D+ signal | Input/Output | - | - | - |
| 133 | - | Shield | - | - | - | - |
| 150 | - | FM sub | Input | - | - | - |
| 151 | - | AM - FM main | Input | - | - | - |
| 152 | Ground | Antenna amp. ON signal | Input | Ignition switch ON | - | 12.0 V |
| 153 | Ground | GPS antenna signal | Input | Ignition switch ON | Not connected GPS antenna connector. | 5.0 V |
| 154 | - | Shield | - | - | - | - |
| 157 | Ground | RGB digital image signal (-) |
Output | Ignition switch ON | Not connected connector. | 1.3 V |
| 158 | Ground | RGB digital image signal (+) |
Output | Ignition switch ON | Not connected connector. | 1.3 V |
| 159 | Ground | Satellite antenna signal | Input | Ignition switch ON | Not connected to satellite antenna connector. | 5.0 V |
| 160 | - | Shield | - | - | - | - |
