Cooling Fan Control Module Connector End View (E302)

Connector Types:  6188-0259

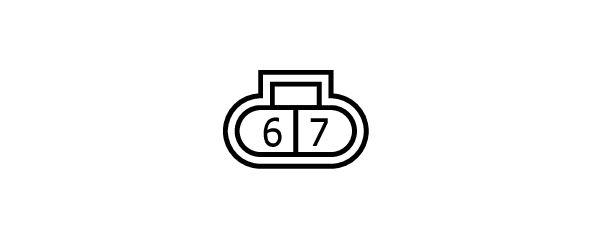

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

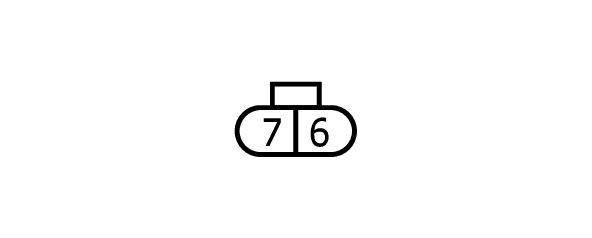

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
6	-	-
7	-	-
