IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E4)

Connector Types:  L02FB-MC

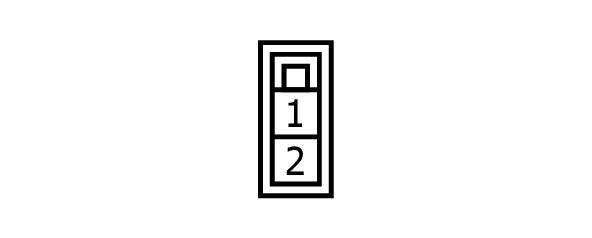

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

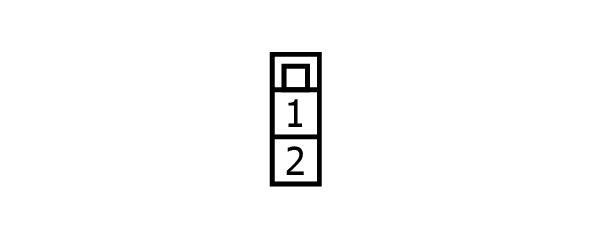

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W	-
2	L	-
