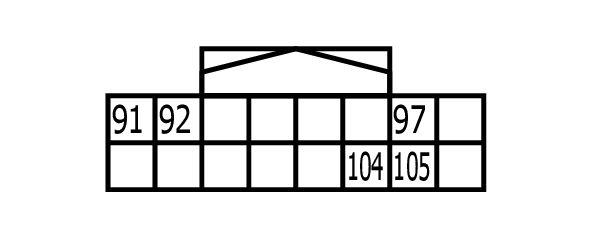

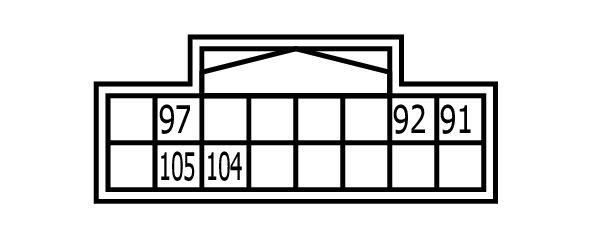

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E9)
Connector Types:
TH16FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 91 |
P |
- |
| 92 |
BG |
- |
| 97 |
V |
- |
| 104 |
LG |
- |
| 105 |
SB |
- |
